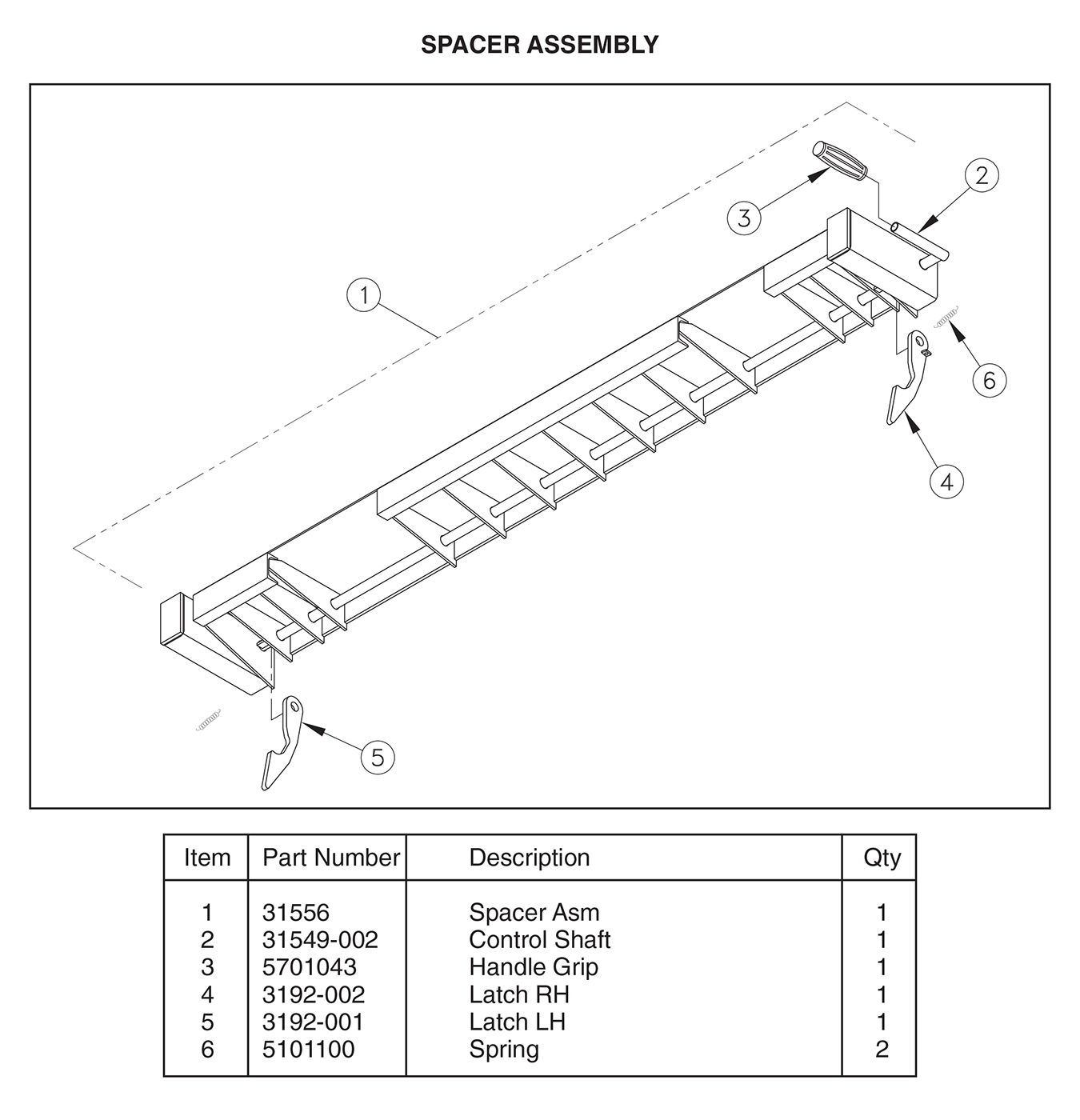

ST 22/31 Spacer Assembly Diagram

ST 22/31 Spacer Assembly Diagram

SKU: ST2231-SPACER-DG Category: Brand:
ID Image Title SKU Price Quantity Add to Cart
1Thieman 31556 - Spacer AssemblyThieman 31556 - Spacer Assembly31556-THIE$837.14
2Thieman 31549-002 - Control ShaftThieman 31549-002 - Control Shaft31549-002-THIE$64.58
3Thieman 5701043 - Yellow Handle GripThieman 5701043 - Yellow Handle Grip5701043-THIE$2.98
4Thieman 3192-002 - RH Spacer LatchThieman 3192-002 - RH Spacer Latch3192-002-THIE$36.75
5Thieman 3192-001 - LH Spacer LatchThieman 3192-001 - LH Spacer Latch3192-001-THIE$36.75
6Thieman 5101100 - SpringThieman 5101100 - Spring5101100-THIE$2.88

LIFTGATE PARTS ORDERED WITHOUT PROVIDING YOUR LIFTGATE MODEL/SERIAL NUMBERS ARE NOT ELIGIBLE FOR RETURN.

PLEASE NOTE THAT THE PRICES BELOW ARE FOR A SINGLE ITEM. THE QTY COLUMN ON THE DIAGRAM SHOWS THE TOTAL NUMBER YOU WILL NEED FOR A COMPLETE ASSEMBLY.
