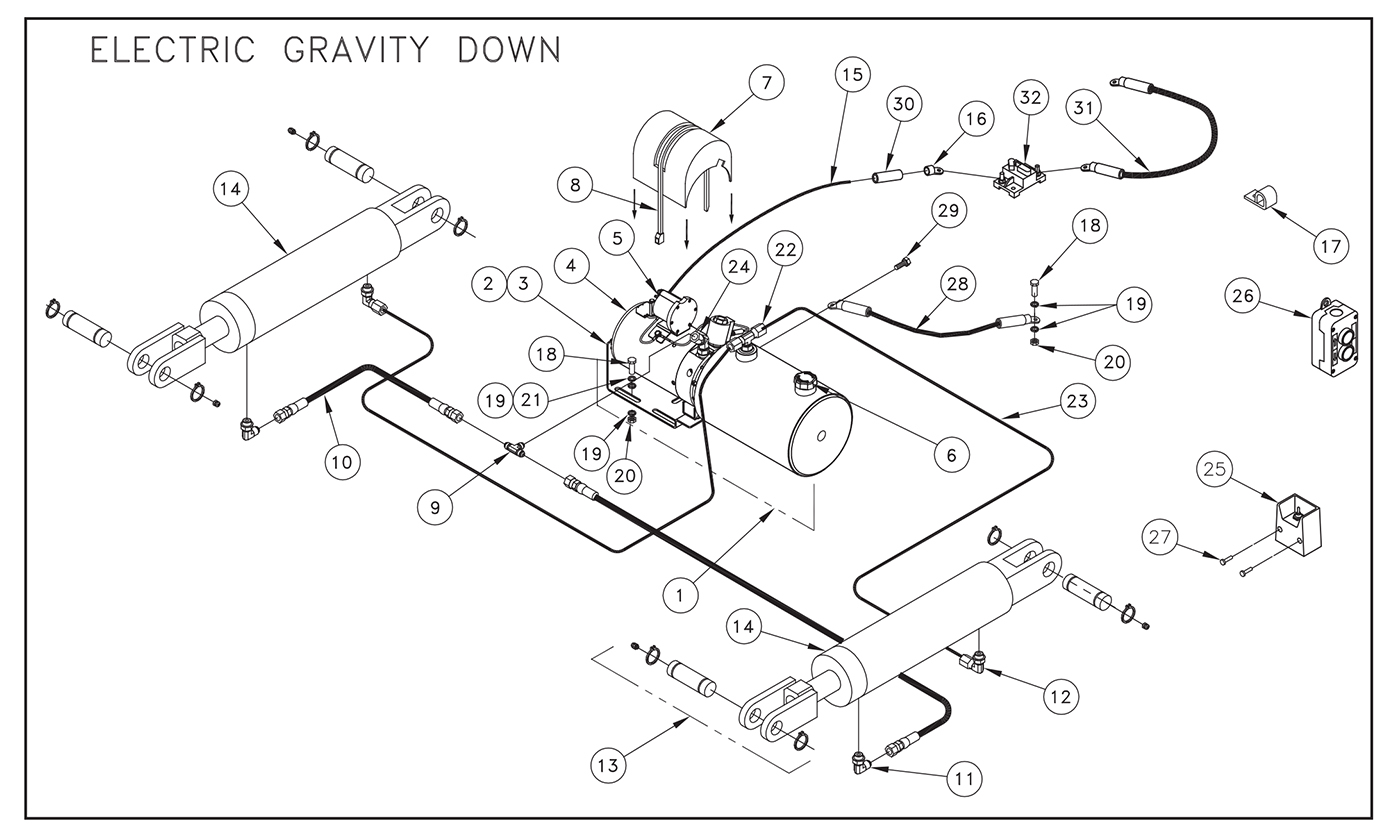

ST31 Electric Control/Gravity Down Pump Assembly Diagram

ST31 Electric Control/Gravity Down Pump Assembly Diagram

SKU: ST31-ECPAGD-DG Category: Brand:
ID Image Title SKU Price Quantity Add to Cart
1Thieman 4400351 - Pump AssemblyThieman 4400351 - Pump Assembly4400351-THIE$877.79
2Thieman 4421420 - Pump BracketThieman 4421420 - Pump Bracket4421420-THIE$71.20
3Thieman 4421350 - Mounting BracketThieman 4421350 - Mounting Bracket4421350-THIE$12.26
4Thieman 4423520 - Motor 8111Thieman 4423520 - Motor 81114423520-THIE$333.10
5Thieman 4468 - Motor Start SolenoidThieman 4468 - Motor Start Solenoid4468-THIE$62.18
6Thieman 4420410 - Breather Cap (0.75 Inch)Thieman 4420410 - Breather Cap (0.75 Inch)4420410-THIE$8.38
7Thieman 5704 - Solenoid CoverThieman 5704 - Solenoid Cover5704-THIE$26.23
8Thieman 5700100 - 32 Inch Tie StrapThieman 5700100 - 32 Inch Tie Strap5700100-THIE$1.80
9Thieman 4953-001 - Tee MJ-MJ-MJThieman 4953-001 - Tee MJ-MJ-MJ4953-001-THIE$10.22
10Thieman 4951-004 - Hose (0.25 x 48 Inches)Thieman 4951-004 - Hose (0.25 x 48 Inches)4951-004-THIE$54.66
11Thieman 4931-001 - Restrictor Elbow MJ-MAORBThieman 4931-001 - Restrictor Elbow MJ-MAORB4931-001-THIE$17.90
12Thieman 4933-001 - Tube Elbow BT-MAORBThieman 4933-001 - Tube Elbow BT-MAORB4933-001-THIE$17.04
13Thieman 5001841 - Pin AssemblyThieman 5001841 - Pin Assembly5001841-THIE$11.06
14Thieman 4295 - New Style Cylinder For TWL16/20 LST20 ST31/40Thieman 4295 - New Style Cylinder For TWL16/20 LST20 ST31/404295-THIE$663.55
15Thieman 4300030 - Battery Cable #2 x 25 FeetThieman 4300030 - Battery Cable #2 x 25 Feet4300030-THIE$187.71
16Thieman 4350 - Cable LugThieman 4350 - Cable Lug4350-THIE$6.46
17Thieman 5701260 - Cable RetainerThieman 5701260 - Cable Retainer5701260-THIE$0.76
19Thieman 8106-010 - Internal Tooth Lockwasher (0.38)Thieman 8106-010 - Internal Tooth Lockwasher (0.38)8106-010-THIE$0.44
20Thieman 8120377 - Nut (0.38-18)Thieman 8120377 - Nut (0.38-18)8120377-THIE$0.44
21Thieman 8120388 - Flat Washer (0.38)Thieman 8120388 - Flat Washer (0.38)8120388-THIE$0.44
22Thieman 4934-001 - Tee BT-BT-MAORBThieman 4934-001 - Tee BT-BT-MAORB4934-001-THIE$33.91
23Thieman 4921-012 - Tubing (0.375 x 42 Inches)Thieman 4921-012 - Tubing (0.375 x 42 Inches)4921-012-THIE$2.98
24Thieman 4938-001 - 45 Degree Elbow MAORB-FJSThieman 4938-001 - 45 Degree Elbow MAORB-FJS4938-001-THIE$44.22
25Thieman 31446 - Toggle Switch Assembly For Gravity-Down M GatesThieman 31446 - Toggle Switch Assembly For Gravity-Down M Gates31446-THIE$83.71
26Thieman 4422850 - Pushbutton ControlThieman 4422850 - Pushbutton Control4422850-THIE$155.49
27Thieman 8111-005 - Screw #10 x 0.75Thieman 8111-005 - Screw #10 x 0.758111-005-THIE$0.76
28Thieman 4318-002 - Ground Cable #2 x 2 FeetThieman 4318-002 - Ground Cable #2 x 2 Feet4318-002-THIE$19.51
29Thieman 8104-006 - Hex Head Screw (0.31 x 1 Inch)Thieman 8104-006 - Hex Head Screw (0.31 x 1 Inch)8104-006-THIE$0.76
30Thieman 4319-002 - Heat ShrinkThieman 4319-002 - Heat Shrink4319-002-THIE$2.24
31Thieman 4318-001 - Cable Assembly #2 x 2 FeetThieman 4318-001 - Cable Assembly #2 x 2 Feet4318-001-THIE$25.16
32Thieman 4301770 - 150 AMP Circuit BreakerThieman 4301770 - 150 AMP Circuit Breaker4301770-THIE$86.10

LIFTGATE PARTS ORDERED WITHOUT PROVIDING YOUR LIFTGATE MODEL/SERIAL NUMBERS ARE NOT ELIGIBLE FOR RETURN.

PLEASE NOTE THAT THE PRICES BELOW ARE FOR A SINGLE ITEM. THE QTY COLUMN ON THE DIAGRAM SHOWS THE TOTAL NUMBER YOU WILL NEED FOR A COMPLETE ASSEMBLY.
