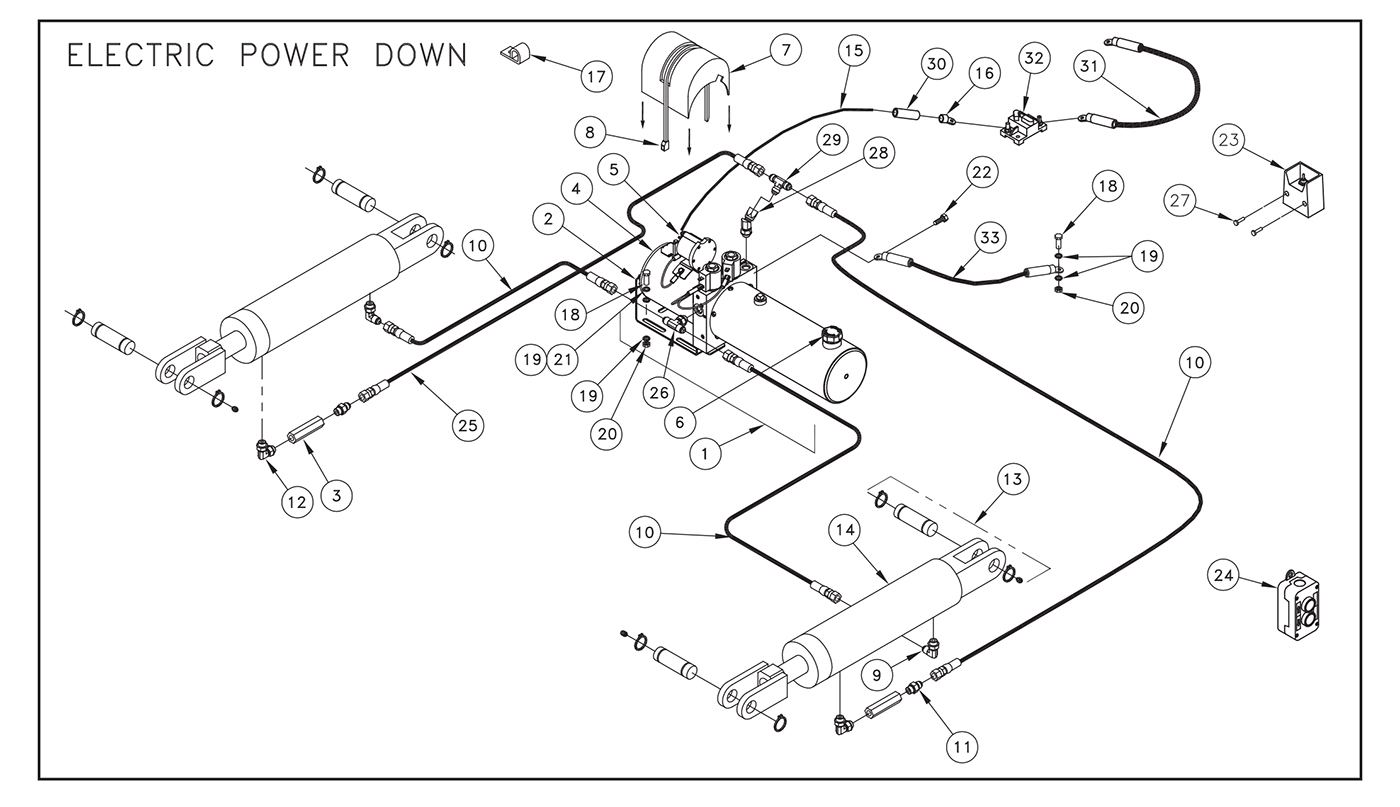

ST31 Electric Control/Power Down Pump Assembly Diagram

ST31 Electric Control/Power Down Pump Assembly Diagram

SKU: ST31-ECPAPD-DG Category: Brand:
ID Image Title SKU Price Quantity Add to Cart
1Thieman 4404 - EST Pump AssemblyThieman 4404 - EST Pump Assembly4404-THIE$1,243.74
2Thieman 4421420 - Pump BracketThieman 4421420 - Pump Bracket4421420-THIE$71.20
3Thieman 4948-004 - 0.75 GPM Flow ControlThieman 4948-004 - 0.75 GPM Flow Control4948-004-THIE$75.71
4Thieman 4423520 - Motor 8111Thieman 4423520 - Motor 81114423520-THIE$333.10
5Thieman 4468 - Motor Start SolenoidThieman 4468 - Motor Start Solenoid4468-THIE$62.18
6Thieman 4420410 - Breather Cap (0.75 Inch)Thieman 4420410 - Breather Cap (0.75 Inch)4420410-THIE$8.38
9Theiman 4930-001 - 90 Degree Elbow (MJ-MAORB)Theiman 4930-001 - 90 Degree Elbow (MJ-MAORB)4930-001-THIE$8.96
10Thieman 4951-015 - Hose (0.25 x 51 Inches)Thieman 4951-015 - Hose (0.25 x 51 Inches)4951-015-THIE$56.08
11Thieman 4941-001 - Straight Fitting MJ-MORBThieman 4941-001 - Straight Fitting MJ-MORB4941-001-THIE$4.02
12Thieman 4936-001 - 90 Degree Elbow MAORB-MAORBThieman 4936-001 - 90 Degree Elbow MAORB-MAORB4936-001-THIE$7.18
13Thieman 5001841 - Pin AssemblyThieman 5001841 - Pin Assembly5001841-THIE$11.06
14Thieman 4295 - New Style Cylinder For TWL16/20 LST20 ST31/40Thieman 4295 - New Style Cylinder For TWL16/20 LST20 ST31/404295-THIE$663.55
15Thieman 4300030 - Battery Cable #2 x 25 FeetThieman 4300030 - Battery Cable #2 x 25 Feet4300030-THIE$187.71
16Thieman 4350 - Cable LugThieman 4350 - Cable Lug4350-THIE$6.46
17Thieman 5701260 - Cable RetainerThieman 5701260 - Cable Retainer5701260-THIE$0.76
19Thieman 8106-010 - Internal Tooth Lockwasher (0.38)Thieman 8106-010 - Internal Tooth Lockwasher (0.38)8106-010-THIE$0.44
20Thieman 8120377 - Nut (0.38-18)Thieman 8120377 - Nut (0.38-18)8120377-THIE$0.44
21Thieman 8120388 - Flat Washer (0.38)Thieman 8120388 - Flat Washer (0.38)8120388-THIE$0.44
22Thieman 8104-006 - Hex Head Screw (0.31 x 1 Inch)Thieman 8104-006 - Hex Head Screw (0.31 x 1 Inch)8104-006-THIE$0.76
23Thieman 31445 - Toggle Switch Assembly For Power-Down M GatesThieman 31445 - Toggle Switch Assembly For Power-Down M Gates31445-THIE$95.68
24Thieman 4422860 - Pushbutton ControlThieman 4422860 - Pushbutton Control4422860-THIE$179.39
25Thieman 4951-016 - Hose (0.25 x 63 Inches)Thieman 4951-016 - Hose (0.25 x 63 Inches)4951-016-THIE$60.86
26Thieman 4931-001 - Restrictor Elbow MJ-MAORBThieman 4931-001 - Restrictor Elbow MJ-MAORB4931-001-THIE$17.90
27Thieman 8111-005 - Screw #10 x 0.75Thieman 8111-005 - Screw #10 x 0.758111-005-THIE$0.76
28Thieman 4938-001 - 45 Degree Elbow MAORB-FJSThieman 4938-001 - 45 Degree Elbow MAORB-FJS4938-001-THIE$44.22
29Thieman 4953-001 - Tee MJ-MJ-MJThieman 4953-001 - Tee MJ-MJ-MJ4953-001-THIE$10.22
30Thieman 4319-002 - Heat ShrinkThieman 4319-002 - Heat Shrink4319-002-THIE$2.24
31Thieman 4318-001 - Cable Assembly #2 x 2 FeetThieman 4318-001 - Cable Assembly #2 x 2 Feet4318-001-THIE$25.16
32Thieman 4301770 - 150 AMP Circuit BreakerThieman 4301770 - 150 AMP Circuit Breaker4301770-THIE$86.10
33Thieman 4318-002 - Ground Cable #2 x 2 FeetThieman 4318-002 - Ground Cable #2 x 2 Feet4318-002-THIE$19.51

LIFTGATE PARTS ORDERED WITHOUT PROVIDING YOUR LIFTGATE MODEL/SERIAL NUMBERS ARE NOT ELIGIBLE FOR RETURN.

PLEASE NOTE THAT THE PRICES BELOW ARE FOR A SINGLE ITEM. THE QTY COLUMN ON THE DIAGRAM SHOWS THE TOTAL NUMBER YOU WILL NEED FOR A COMPLETE ASSEMBLY.
