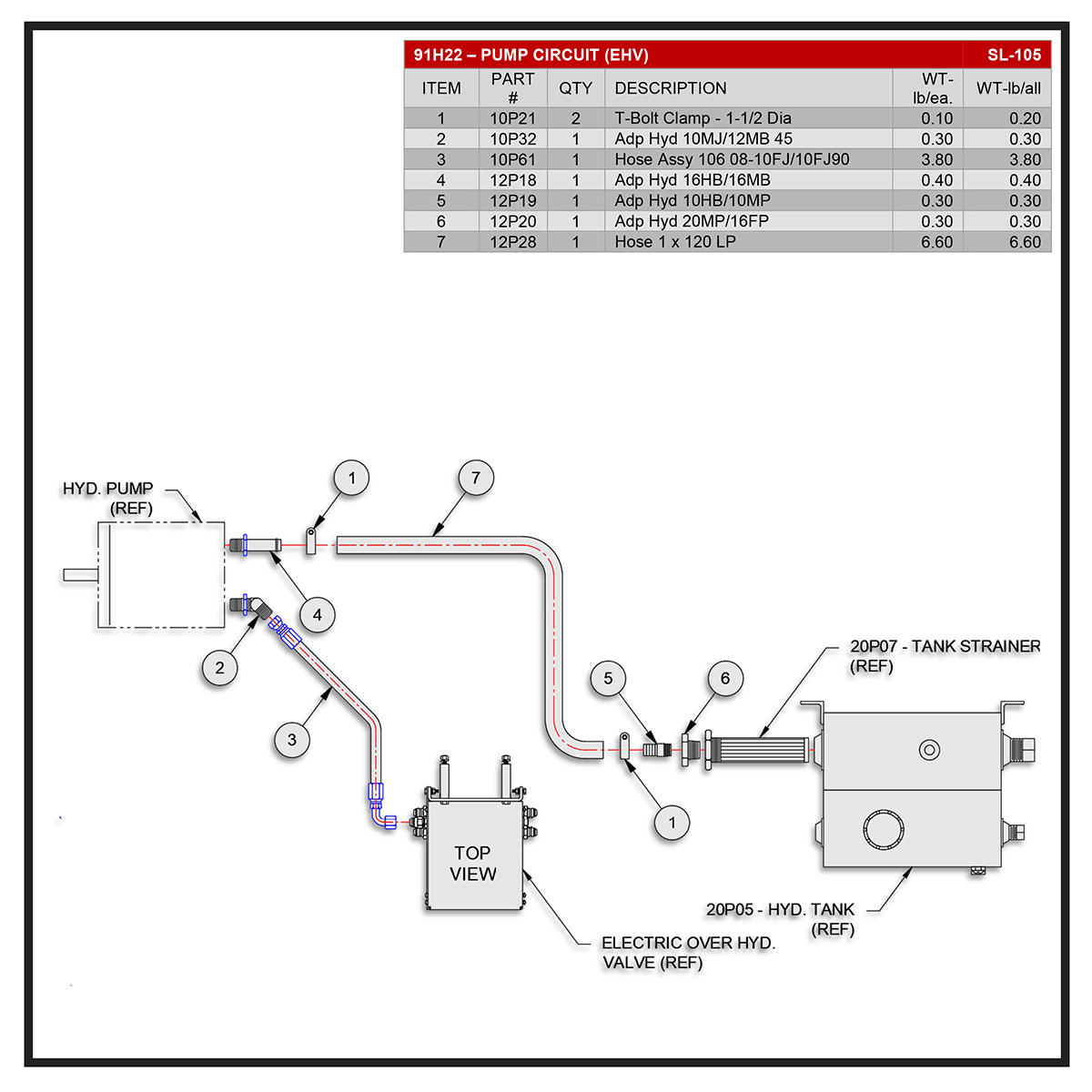

Swaploader 100 Series Pump Circuit (EHV) Diagram

Swaploader 100 Series Pump Circuit (EHV) Diagram

SKU: 100S-EHV-PC-DG Category: Brand:
ID Image Title SKU Price Quantity Add to Cart
1Swaploader 10P21 - Clamp T-Bolt ?1-1/2Swaploader 10P21 - Clamp T-Bolt ?1-1/210P21-SWAP$9.30
2Swaploader 10P32 - Adp Hyd 10MJ/12MB 45Swaploader 10P32 - Adp Hyd 10MJ/12MB 4510P32-SWAP$9.15
3Swaploader 10P61 - Hose Assy 106 08-10FJ/10FJ90Swaploader 10P61 - Hose Assy 106 08-10FJ/10FJ9010P61-SWAP$135.00
4Swaploader 12P18 - Adp Hyd 16HB/16MBSwaploader 12P18 - Adp Hyd 16HB/16MB12P18-SWAP$13.83
5Swaploader 12P19 - Adp Hyd 16HB/16MPSwaploader 12P19 - Adp Hyd 16HB/16MP12P19-SWAP$7.69
6Swaploader 12P20 - Adp Hyd 20MP/16FPSwaploader 12P20 - Adp Hyd 20MP/16FP12P20-SWAP$7.33
7Swaploader 12P28 - Hose 1 x 120 LPSwaploader 12P28 - Hose 1 x 120 LP12P28-SWAP$172.89

Please note that the QTY column on the diagrams notes how many of that line item is needed for the full assembly.

Swaploader parts are not kept in stock but are shipped directly from the manufacturer to the customer. If you have concerns about stock lead times or fitment feel free to contact Swaploader at 515-266-3042.
