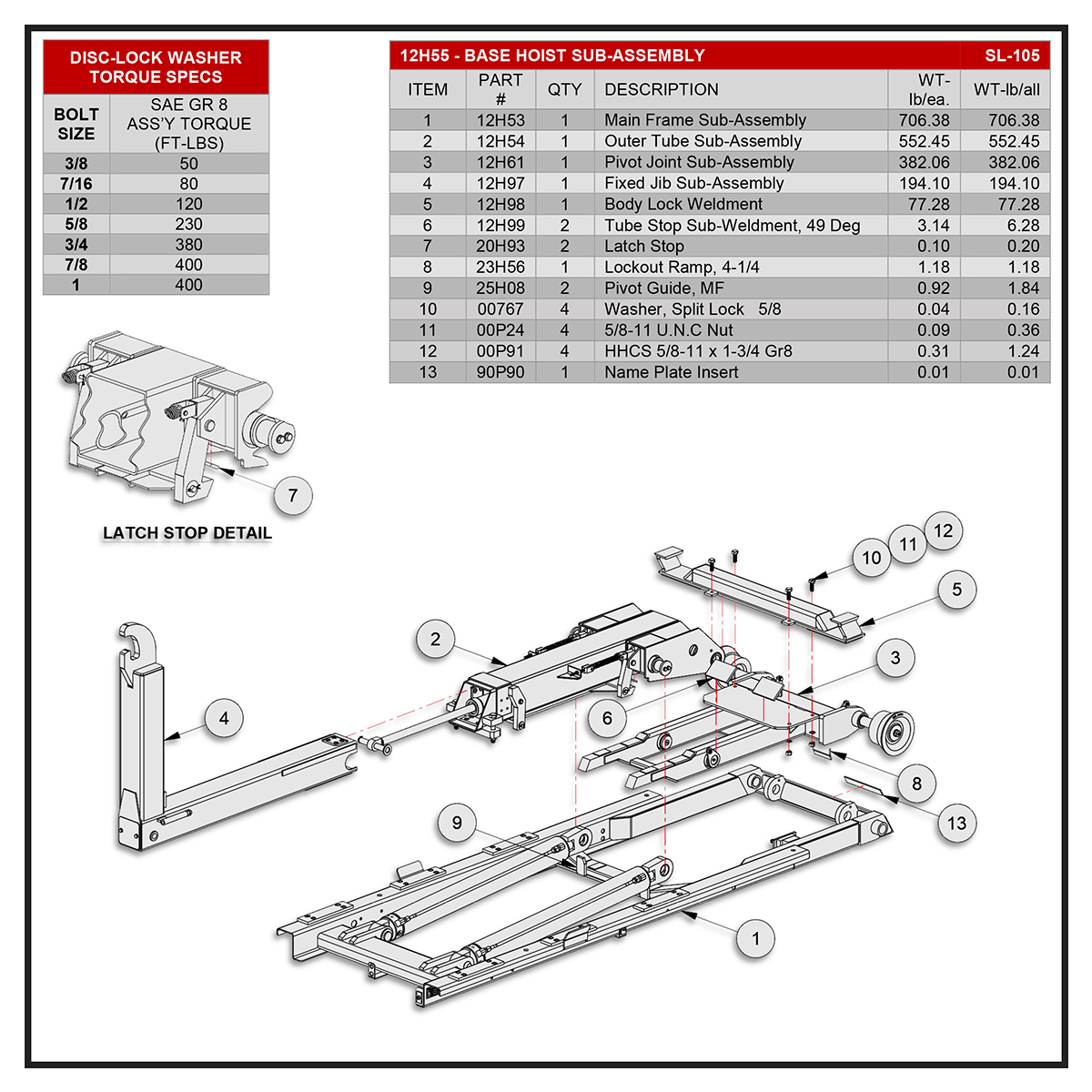

Swaploader SL-105 Base Hoist Sub-Assembly Diagram

Swaploader SL-105 Base Hoist Sub-Assembly Diagram

SKU: SL-105-BHSA-DG Category: Brand:
ID Image Title SKU Price Quantity Add to Cart
4Swaploader 12H97 - Fixed Jib Sub-AssemblySwaploader 12H97 - Fixed Jib Sub-Assembly12H97-SWAP$1,880.54
5Swaploader 12H98 - Body Lock Wdmt SL-105Swaploader 12H98 - Body Lock Wdmt SL-10512H98-SWAP$415.04
6Swaploader 12H99 - Tube Stop Sub-Wdmt 49 DegSwaploader 12H99 - Tube Stop Sub-Wdmt 49 Deg12H99-SWAP$32.31
7Swaploader 20H93 - Latch StopSwaploader 20H93 - Latch Stop20H93-SWAP$0.55
8Swaploader 23H56 - Lockout Ramp 2-7/8 x 4-1/4Swaploader 23H56 - Lockout Ramp 2-7/8 x 4-1/423H56-SWAP$5.20
10Swaploader 00767 - Washer Lock 5/8Swaploader 00767 - Washer Lock 5/8767-SWAP$0.15
11Swaploader 00P24 - Nut Hex 5/8-11 UNC Gr8Swaploader 00P24 - Nut Hex 5/8-11 UNC Gr800P24-SWAP$1.44
12Swaploader 00P91 - HHCS 5/8-11 UNC x 1-3/4 Gr8Swaploader 00P91 - HHCS 5/8-11 UNC x 1-3/4 Gr800P91-SWAP$1.65
13Swaploader 90P90 - Name Plate InsertSwaploader 90P90 - Name Plate Insert90P90-SWAP$2.41

Please note that the QTY column on the diagrams notes how many of that line item is needed for the full assembly.

Swaploader parts are not kept in stock but are shipped directly from the manufacturer to the customer. If you have concerns about stock lead times or fitment feel free to contact Swaploader at 515-266-3042.
