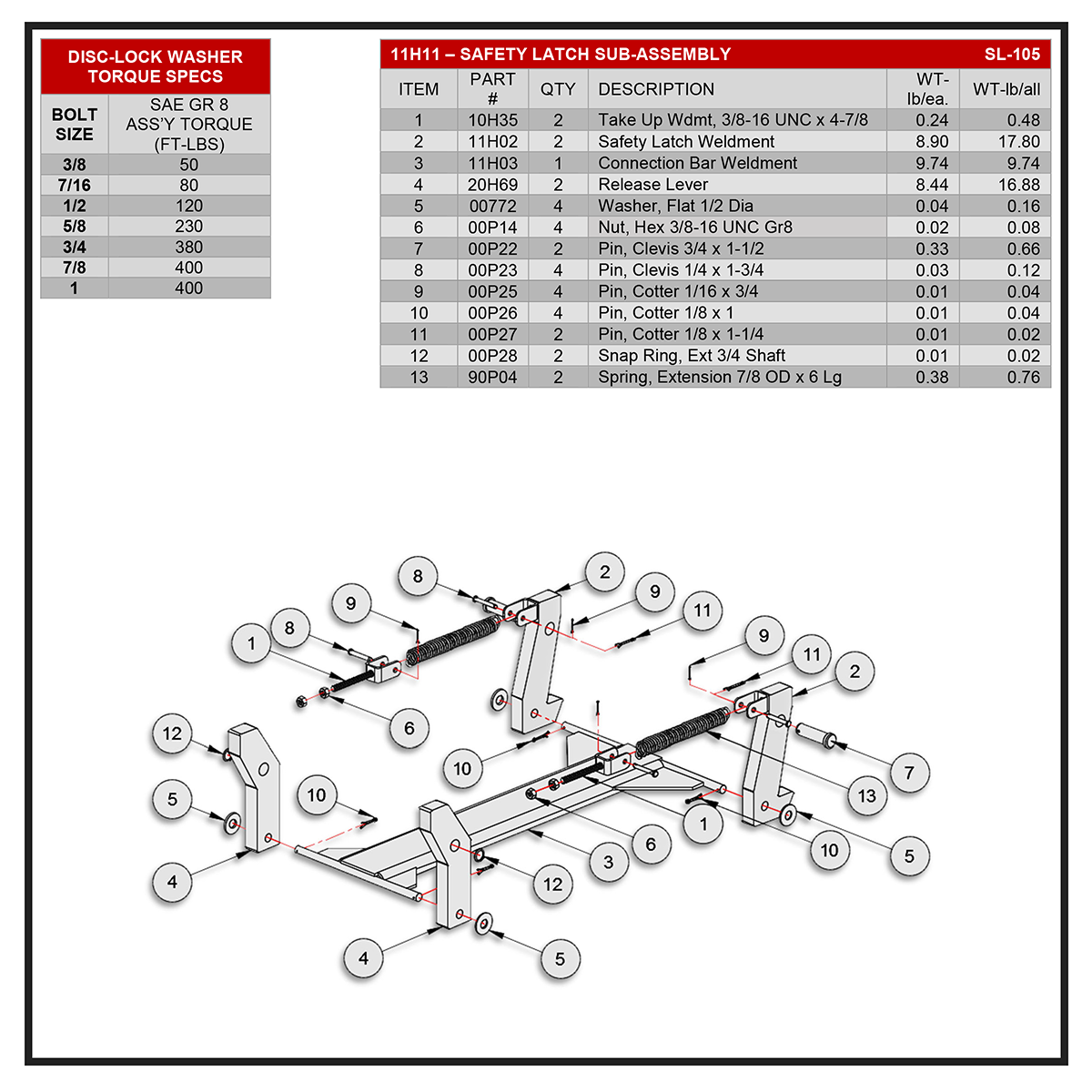

Swaploader SL-105 Safety Latch Sub-Assembly Diagram

Swaploader SL-105 Safety Latch Sub-Assembly Diagram

SKU: SL-105-SLSA-DG Category: Brand:
ID Image Title SKU Price Quantity Add to Cart
1Swaploader 10H35 - Take Up Weldment (3/8-16 UNC x 4-7/8)Swaploader 10H35 - Take Up Weldment (3/8-16 UNC x 4-7/8)10H35-SWAP$17.46
2Swaploader 11H02 - Latch Wdmt PL 105Swaploader 11H02 - Latch Wdmt PL 10511H02-SWAP$68.79
3Swaploader 11H03 - Connection Bar Wdmt 25-1/4Swaploader 11H03 - Connection Bar Wdmt 25-1/411H03-SWAP$118.52
4Swaploader 20H69 - Release Lever 8-1/2Swaploader 20H69 - Release Lever 8-1/220H69-SWAP$54.89
5Swaploader 00772 - Washer Flat 1/2Swaploader 00772 - Washer Flat 1/2772-SWAP$0.24
6Swaploader 00P14 - Nut Hex 3/8-16 UNC Gr8Swaploader 00P14 - Nut Hex 3/8-16 UNC Gr800P14-SWAP$0.08
7Swaploader 00P22 - Pin Clevis 3/4 x 2-1/2Swaploader 00P22 - Pin Clevis 3/4 x 2-1/200P22-SWAP$4.69
8Swaploader 00P23 - Pin Clevis 1/4 x 1-3/4Swaploader 00P23 - Pin Clevis 1/4 x 1-3/400P23-SWAP$0.47
9Swaploader 00P25 - Pin Cotter 1/16 x 3/4Swaploader 00P25 - Pin Cotter 1/16 x 3/400P25-SWAP$0.03
10Swaploader 00P26 - Pin Cotter 1/8 x 1Swaploader 00P26 - Pin Cotter 1/8 x 100P26-SWAP$0.05
11Swaploader 00P27 - Pin Cotter 1/8 x 1-1/4Swaploader 00P27 - Pin Cotter 1/8 x 1-1/400P27-SWAP$0.05
12Swaploader 00P28 - Snap Ring Ext 0.75Swaploader 00P28 - Snap Ring Ext 0.7500P28-SWAP$0.40
13Swaploader 90P04 - Spring Ext 7/8 OD x 6 LgSwaploader 90P04 - Spring Ext 7/8 OD x 6 Lg90P04-SWAP$12.67

Please note that the QTY column on the diagrams notes how many of that line item is needed for the full assembly.

Swaploader parts are not kept in stock but are shipped directly from the manufacturer to the customer. If you have concerns about stock lead times or fitment feel free to contact Swaploader at 515-266-3042.
