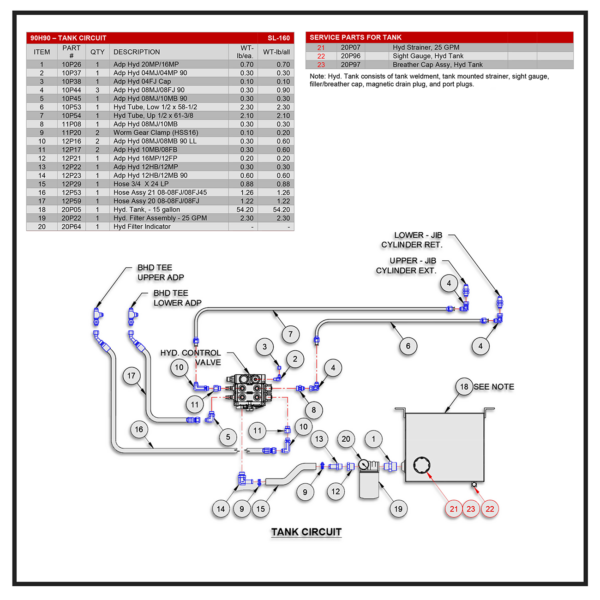

Swaploader SL-145/160 Hydraulic Sub Assembly Chassis Tank Circuit Diagram
,

Swaploader SL-145/160 Hydraulic Sub Assembly Chassis Tank Circuit Diagram

SKU: SL-145-160-HSA-CTC-DG Categories: , Brand:
ID Image Title SKU Price Quantity Add to Cart
1Swaploader 10P26 - Pipe Nipple Hydraulic Adapter 20MP/16MPSwaploader 10P26 - Pipe Nipple Hydraulic Adapter 20MP/16MP10P26-SWAP$11.64
2Swaploader 10P37 - 90-Degree Hydraulic Adapter 04MJ/04MPSwaploader 10P37 - 90-Degree Hydraulic Adapter 04MJ/04MP10P37-SWAP$2.27
3Swaploader 10P38 - Hydraulic Adapter JIC CAPSwaploader 10P38 - Hydraulic Adapter JIC CAP10P38-SWAP$0.77
4Swaploader 10P44 - 90-Degree Hydraulic Adapter 08MJ/08FJSwaploader 10P44 - 90-Degree Hydraulic Adapter 08MJ/08FJ10P44-SWAP$4.70
5Swaploader 10P45 - 90-Degree Hydraulic Adapter 08MJ/10MBSwaploader 10P45 - 90-Degree Hydraulic Adapter 08MJ/10MB10P45-SWAP$5.76
6Swaploader 10P53 - Lower Hydraulic Tube (1/2 x 58-1/2)Swaploader 10P53 - Lower Hydraulic Tube (1/2 x 58-1/2)10P53-SWAP$52.86
7Swaploader 10P54 - Upper Hydraulic Tube (1/2 x 61-3/8)Swaploader 10P54 - Upper Hydraulic Tube (1/2 x 61-3/8)10P54-SWAP$113.57
8Swaploader 11P08 - Hydraulic Adapter 08MJ/10MBSwaploader 11P08 - Hydraulic Adapter 08MJ/10MB11P08-SWAP$2.60
9Swaploader 11P20 - Worm Gear ClampSwaploader 11P20 - Worm Gear Clamp11P20-SWAP$3.44
10Swaploader 12P16 - 90-Degree Hydraulic Adapter 08MJ/08MB LLSwaploader 12P16 - 90-Degree Hydraulic Adapter 08MJ/08MB LL12P16-SWAP$7.64
11Swaploader 12P17 - Hydraulic Adapter 10MB/08FBSwaploader 12P17 - Hydraulic Adapter 10MB/08FB12P17-SWAP$3.24
12Swaploader 12P21 - Hydraulic Adapter 16MP/12FPSwaploader 12P21 - Hydraulic Adapter 16MP/12FP12P21-SWAP$4.47
13Swaploader 12P22 - Hydraulic Adapter 12HB/12MPSwaploader 12P22 - Hydraulic Adapter 12HB/12MP12P22-SWAP$6.42
14Swaploader 12P23 - 90-Degree Hydraulic Adapter Hose Insert 12HB/12MBSwaploader 12P23 - 90-Degree Hydraulic Adapter Hose Insert 12HB/12MB12P23-SWAP$15.38
15Swaploader 12P29 - Hose (3/4 LP x 24)Swaploader 12P29 - Hose (3/4 LP x 24)12P29-SWAP$41.67
16Swaploader 12P53 - Hose Assembly 21 08-08FJ/08FJ45Swaploader 12P53 - Hose Assembly 21 08-08FJ/08FJ4512P53-SWAP$72.84
17Swaploader 12P59 - Hose Assembly 20 08-08FJ/08FJSwaploader 12P59 - Hose Assembly 20 08-08FJ/08FJ12P59-SWAP$68.19
18Swaploader 20P05 - 15 Gal Hydraulic Tank KitSwaploader 20P05 - 15 Gal Hydraulic Tank Kit20P05-SWAP$666.38
19Swaploader 20P22 - 25 GPM Hydraulic Filter AssemblySwaploader 20P22 - 25 GPM Hydraulic Filter Assembly20P22-SWAP$85.31
20Swaploader 20P64 - Hydraulic Filter IndicatorSwaploader 20P64 - Hydraulic Filter Indicator20P64-SWAP$16.91
21Swaploader 20P07 - 25 GPM Hydraulic StrainerSwaploader 20P07 - 25 GPM Hydraulic Strainer20P07-SWAP$48.92
22Swaploader 20P96 - Hydraulic Tank Sight GaugeSwaploader 20P96 - Hydraulic Tank Sight Gauge20P96-SWAP$53.94
23Swaploader 20P97 - Hydraulic Tank Breather Cap AssemblySwaploader 20P97 - Hydraulic Tank Breather Cap Assembly20P97-SWAP$67.65

Please note that the QTY column on the diagrams notes how many of that line item is needed for the full assembly.

Swaploader parts are not kept in stock but are shipped directly from the manufacturer to the customer. If you have concerns about stock lead times or fitment feel free to contact Swaploader at 515-266-3042.
