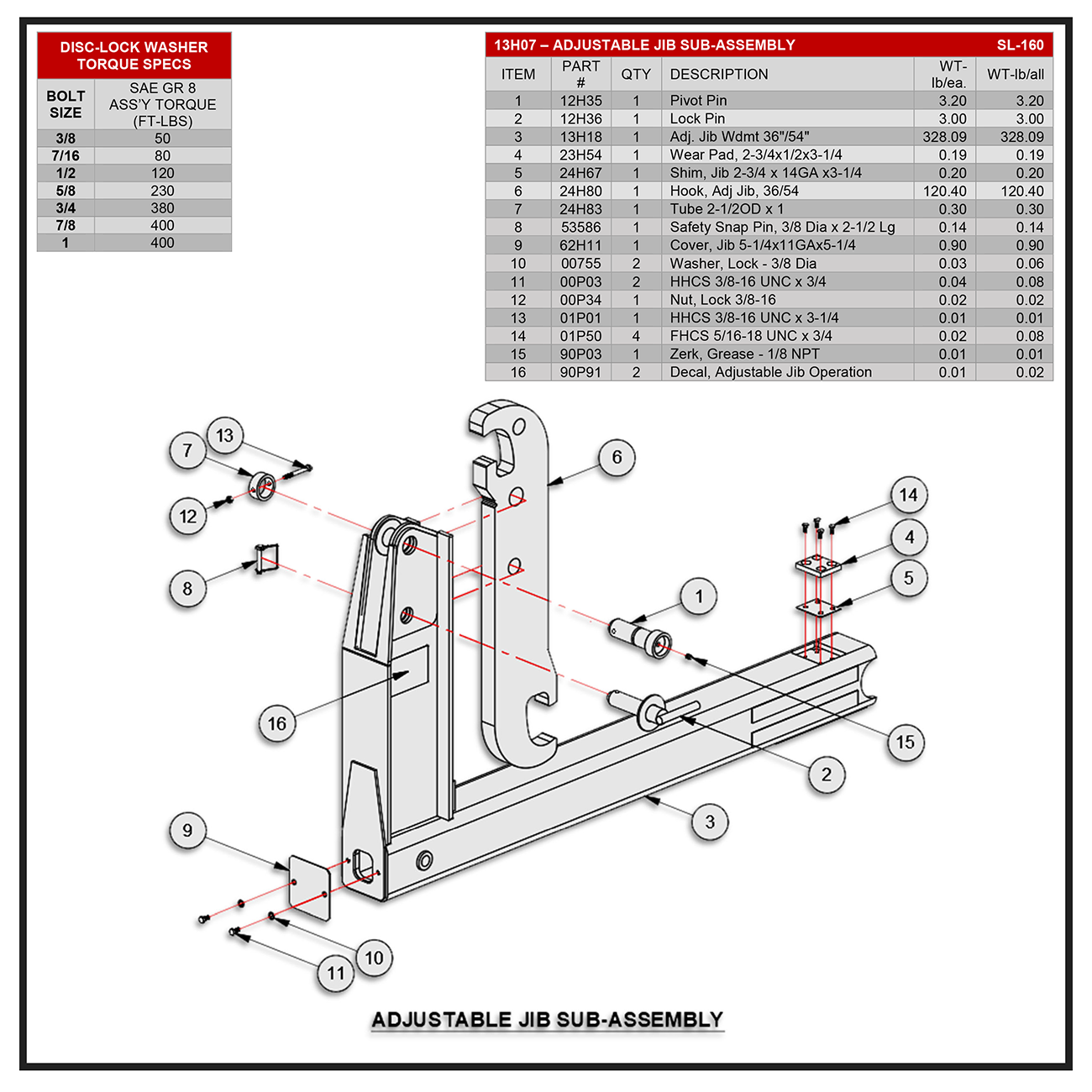

Swaploader SL-160/212/214 Adjustable Jib Sub-Assembly Diagram

Swaploader SL-160/212/214 Adjustable Jib Sub-Assembly Diagram

SKU: SL-160-212-214-AJSA-DG Category: Brand:
ID Image Title SKU Price Quantity Add to Cart
1Swaploader 12H35 - Pin Hk Pvt 1-3/4 x 4-1/2 ZPSwaploader 12H35 - Pin Hk Pvt 1-3/4 x 4-1/2 ZP12H35-SWAP$178.16
2Swaploader 12H36 - Pin Hk Lock 1-1/2 x 4-3/8 ZPSwaploader 12H36 - Pin Hk Lock 1-1/2 x 4-3/8 ZP12H36-SWAP$63.62
3Swaploader 13H18 - Adj Jib Wdmt 36/54 212/214Swaploader 13H18 - Adj Jib Wdmt 36/54 212/21413H18-SWAP$1,615.82
4Swaploader 23H54 - Wear Pad 2-3/4x1/2x3-1/4Swaploader 23H54 - Wear Pad 2-3/4x1/2x3-1/423H54-SWAP$13.34
5Swaploader 24H67 - Shim WP 2-3/4 x 14GA x 3-1/4Swaploader 24H67 - Shim WP 2-3/4 x 14GA x 3-1/424H67-SWAP$12.71
6Swaploader 24H80 - Hook Adj Jib 36/54Swaploader 24H80 - Hook Adj Jib 36/5424H80-SWAP$659.81
7Swaploader 24H83 - Lock Tube Jib 2-1/2ODx1Swaploader 24H83 - Lock Tube Jib 2-1/2ODx124H83-SWAP$30.32
8Swaploader 53586 - Safety Snap Pin 3/8 x 2-1/2Swaploader 53586 - Safety Snap Pin 3/8 x 2-1/253586-SWAP$0.86
9Swaploader 62H11 - Cover Jib 5-1/4x11GAx5-1/4Swaploader 62H11 - Cover Jib 5-1/4x11GAx5-1/462H11-SWAP$6.83
10Swaploader 00755 - Washer Lock 3/8Swaploader 00755 - Washer Lock 3/800755-SWAP$0.05
11Swaploader 00P03 - HHCS 3/8-16 UNC x 3/4 Gr8Swaploader 00P03 - HHCS 3/8-16 UNC x 3/4 Gr800P03-SWAP$0.23
12Swaploader 00P34 - Nut Lock 3/8-16 UNC GrCSwaploader 00P34 - Nut Lock 3/8-16 UNC GrC00P34-SWAP$0.09
13Swaploader 01P01 - HHCS 3/8-16 UNC x 3-1/4 Gr8Swaploader 01P01 - HHCS 3/8-16 UNC x 3-1/4 Gr801P01-SWAP$0.74
14Swaploader 01P50 - FHCS 5/16-18 UNC x 3/4 ZPSwaploader 01P50 - FHCS 5/16-18 UNC x 3/4 ZP01P50-SWAP$0.11
15Swaploader 90P03 - Grease Zerk 1/8-27 NPT StrSwaploader 90P03 - Grease Zerk 1/8-27 NPT Str90P03-SWAP$0.41
16Swaploader 90P91 - Decal Adj Jib Op 36/54Swaploader 90P91 - Decal Adj Jib Op 36/5490P91-SWAP$8.22

Please note that the QTY column on the diagrams notes how many of that line item is needed for the full assembly.

Swaploader parts are not kept in stock but are shipped directly from the manufacturer to the customer. If you have concerns about stock lead times or fitment feel free to contact Swaploader at 515-266-3042.
