| ID | Image | Title | SKU | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|
| 1 |  | Swaploader 10H33 - SL-125 Safety Latch Hook | 10H33-SWAP | $93.08 | ||
| 2 | | Swaploader 10H35 - Take Up Weldment (3/8-16 UNC x 4-7/8) | 10H35-SWAP | $17.46 | ||
| 3 | | Swaploader 12H22 - Connection Bar Weldment | 12H22-SWAP | $170.51 | ||
| 4 | | Swaploader 20H69 - Release Lever 8-1/2 | 20H69-SWAP | $54.89 | ||
| 5 | | Swaploader 20H93 - Latch Stop | 20H93-SWAP | $0.55 | ||
| 6 | | Swaploader 00P14 - Nut Hex 3/8-16 UNC Gr8 | 00P14-SWAP | $0.08 | ||
| 7 | | Swaploader 00P22 - Pin Clevis 3/4 x 2-1/2 | 00P22-SWAP | $4.69 | ||
| 8 | | Swaploader 00P23 - Pin Clevis 1/4 x 1-3/4 | 00P23-SWAP | $0.47 | ||
| 9 | | Swaploader 00P24 - Nut Hex 5/8-11 UNC Gr8 | 00P24-SWAP | $1.44 | ||
| 10 | | Swaploader 00P25 - Pin Cotter 1/16 x 3/4 | 00P25-SWAP | $0.03 | ||
| 11 | | Swaploader 00P26 - Pin Cotter 1/8 x 1 | 00P26-SWAP | $0.05 | ||
| 12 | | Swaploader 00P27 - Pin Cotter 1/8 x 1-1/4 | 00P27-SWAP | $0.05 | ||
| 13 | | Swaploader 00P28 - Snap Ring Ext 0.75 | 00P28-SWAP | $0.40 | ||
| 14 | | Swaploader 01P18 - HHCS 5/8-11 UNC x 3 Gr8 | 01P18-SWAP | $1.94 | ||
| 15 | | Swaploader 90P04 - Spring Ext 7/8 OD x 6 Lg | 90P04-SWAP | $12.67 |
Uncategorized

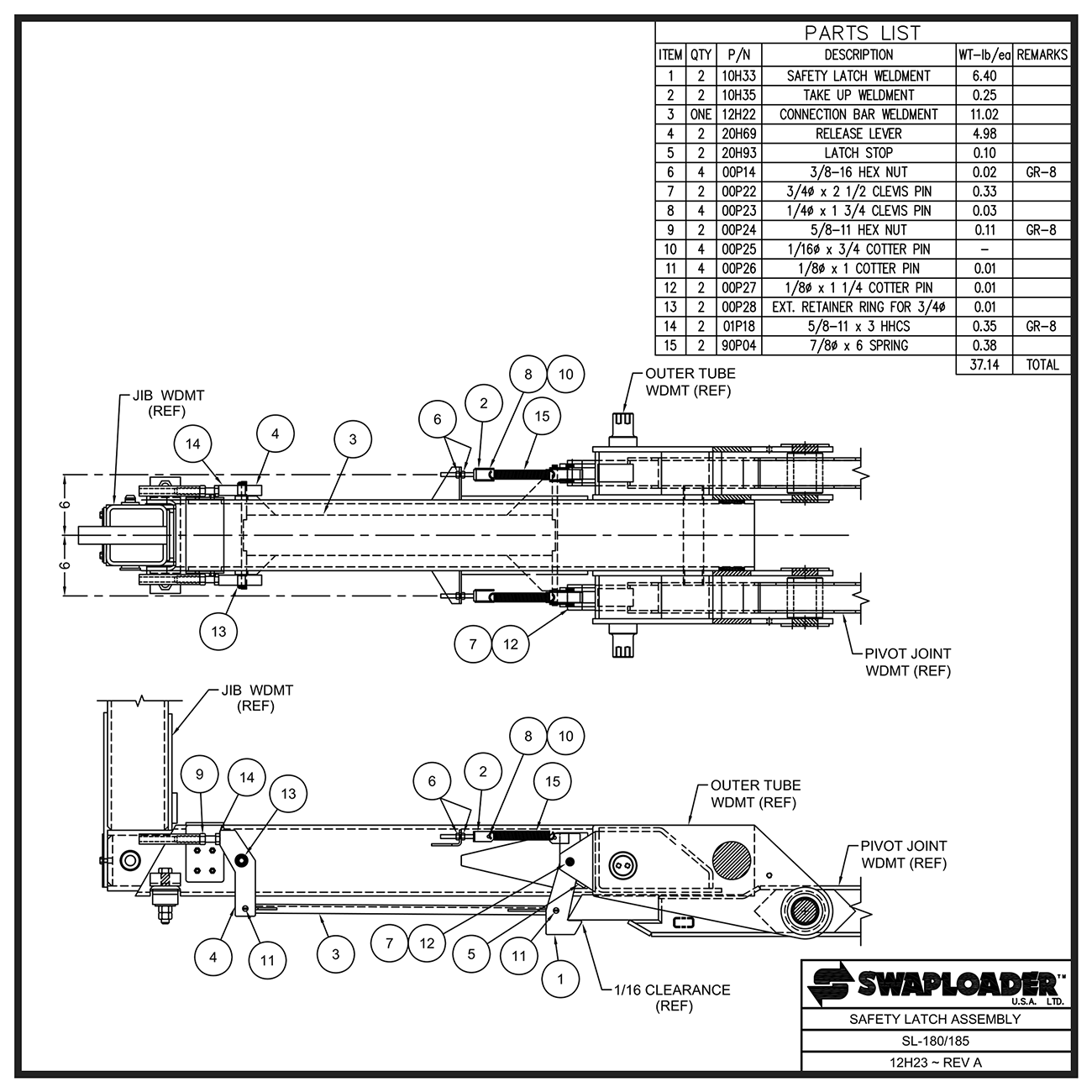

Swaploader SL-180/185 Safety Latch Assembly Diagram
Please note that the QTY column on the diagrams notes how many of that line item is needed for the full assembly.
Swaploader parts are not kept in stock but are shipped directly from the manufacturer to the customer. If you have concerns about stock lead times or fitment feel free to contact Swaploader at 515-266-3042.
