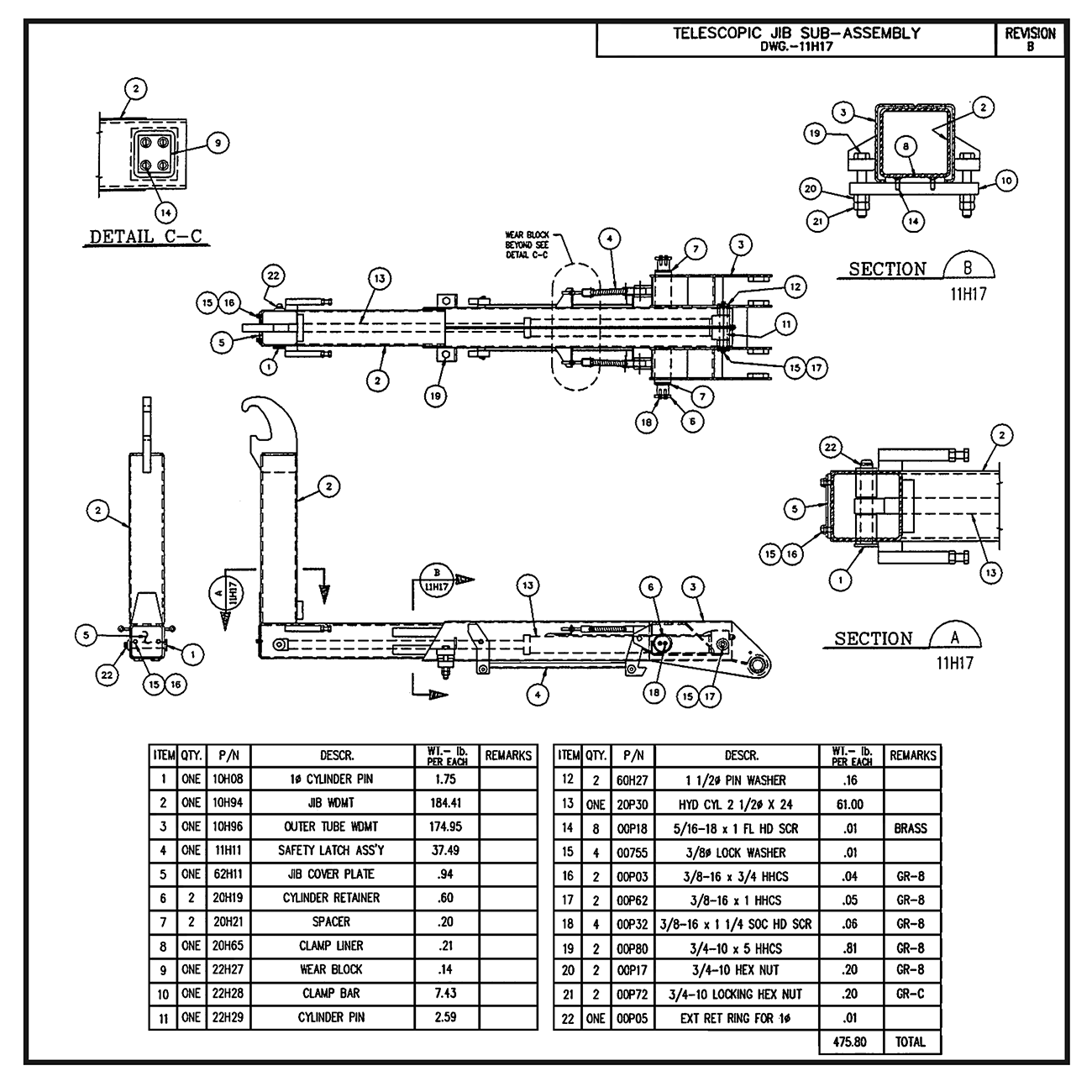

Swaploader SL-95 Telescopic Jib Sub-Assembly Diagram

Swaploader SL-95 Telescopic Jib Sub-Assembly Diagram

SKU: SL-95-TSCJSA-DG Category: Brand:
ID Image Title SKU Price Quantity Add to Cart
1Swaploader 10H08 - Pin Jib/Cyl 1 x 6-3/4 ZPSwaploader 10H08 - Pin Jib/Cyl 1 x 6-3/4 ZP10H08-SWAP$28.49
5Swaploader 62H11 - Cover Jib 5-1/4x11GAx5-1/4Swaploader 62H11 - Cover Jib 5-1/4x11GAx5-1/462H11-SWAP$6.34
6Swaploader 20H19 - Pin Cap 3/8 x 2-3/4 ZPSwaploader 20H19 - Pin Cap 3/8 x 2-3/4 ZP20H19-SWAP$3.22
7Swaploader 20H21 - Spacer OT 1/4 x 2Swaploader 20H21 - Spacer OT 1/4 x 220H21-SWAP$42.95
8Swaploader 20H65 - Wear Pad 2-1/2x1/2x5Swaploader 20H65 - Wear Pad 2-1/2x1/2x520H65-SWAP$6.44
9Swaploader 22H27 - Wear Pad 2-3/4x3/8x3-1/4Swaploader 22H27 - Wear Pad 2-3/4x3/8x3-1/422H27-SWAP$9.82
10Swaploader 22H28 - Clamp Bar (2-1/2 x 11)Swaploader 22H28 - Clamp Bar (2-1/2 x 11)22H28-SWAP$73.25
11Swaploader 22H29 - Cylinder Pin (1-1/4 x 7-7/16)Swaploader 22H29 - Cylinder Pin (1-1/4 x 7-7/16)22H29-SWAP$92.70
12Swaploader 60H27 - Pin Cap 3/16 x 2 ZPSwaploader 60H27 - Pin Cap 3/16 x 2 ZP60H27-SWAP$3.35
13Swaploader 21P99 - Hyd Cyl 2.5x1.375x24Swaploader 21P99 - Hyd Cyl 2.5x1.375x2421P99-SWAP$1,007.95
14Swaploader 00P18 - FHCS 5/16-18 UNC x 1 BrSwaploader 00P18 - FHCS 5/16-18 UNC x 1 Br00P18-SWAP$0.12
15Swaploader 00755 - Washer Lock 3/8Swaploader 00755 - Washer Lock 3/800755-SWAP$0.04
16Swaploader 00P03 - HHCS 3/8-16 UNC x 3/4 Gr8Swaploader 00P03 - HHCS 3/8-16 UNC x 3/4 Gr800P03-SWAP$0.23
17Swaploader 00P62 - HHCS 3/8-16 UNC x 1 Gr8Swaploader 00P62 - HHCS 3/8-16 UNC x 1 Gr800P62-SWAP$0.25
18Swaploader 00P32 - SHCS 3/8-16 UNC x 1-1/4 Gr8Swaploader 00P32 - SHCS 3/8-16 UNC x 1-1/4 Gr800P32-SWAP$0.31
19Swaploader 00P80 - HHCS 3/4-10 UNC x 5 Gr8Swaploader 00P80 - HHCS 3/4-10 UNC x 5 Gr800P80-SWAP$4.38
20Swaploader 00P17 - Nut Hex 3/4-10 UNC Gr8Swaploader 00P17 - Nut Hex 3/4-10 UNC Gr800P17-SWAP$0.47
21Swaploader 00P72 - Nut Lock 3/4-10 UNC GrCSwaploader 00P72 - Nut Lock 3/4-10 UNC GrC00P72-SWAP$0.69
22Swaploader 00P05 - Snap Ring Ext 1.00Swaploader 00P05 - Snap Ring Ext 1.0000P05-SWAP$0.63

Please note that the QTY column on the diagrams notes how many of that line item is needed for the full assembly.

Swaploader parts are not kept in stock but are shipped directly from the manufacturer to the customer. If you have concerns about stock lead times or fitment feel free to contact Swaploader at 515-266-3042.
