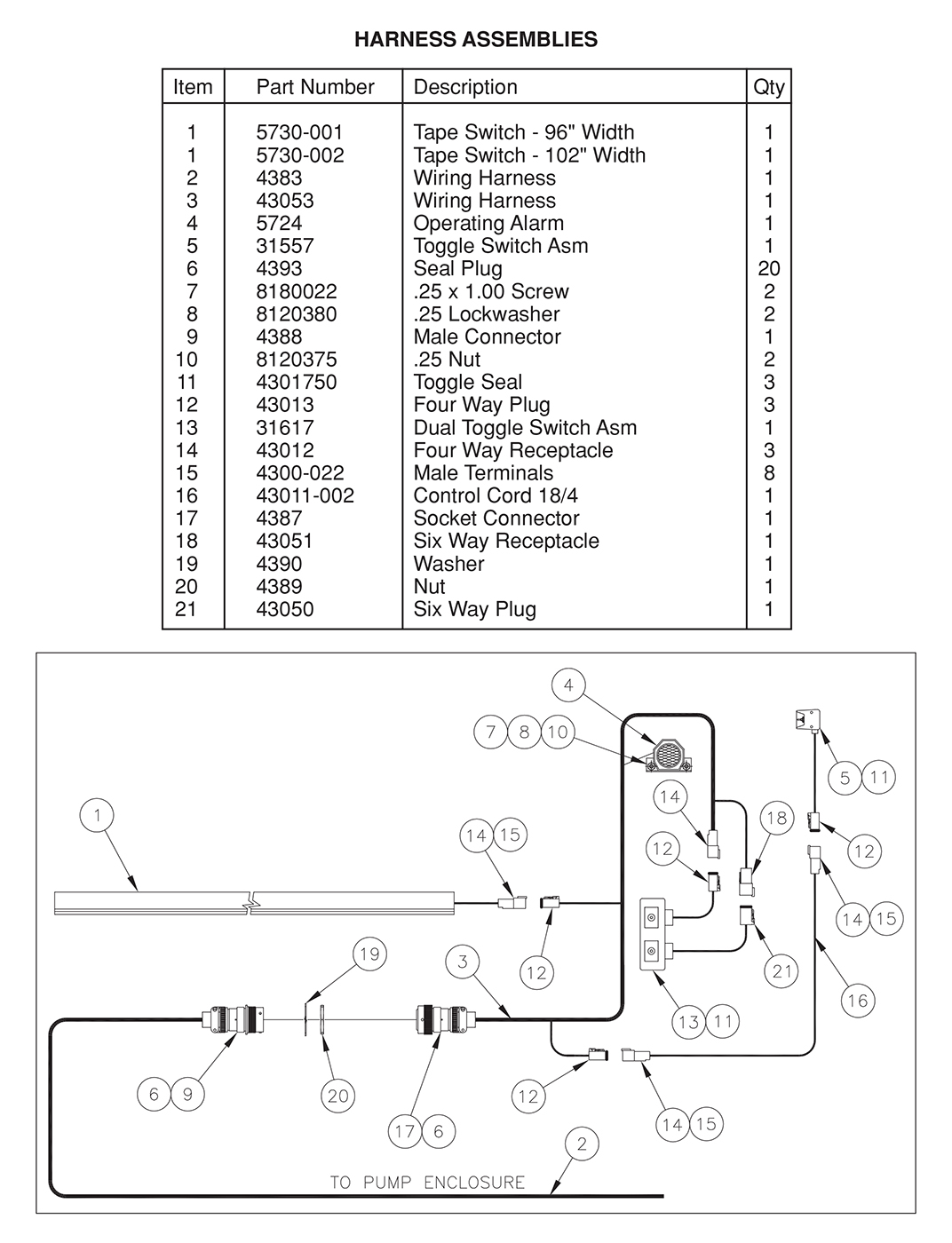

TDR 44/55/66 Harness Assemblies Diagram

TDR 44/55/66 Harness Assemblies Diagram

SKU: TDR445566-HA-DG Category: Brand:
ID Image Title SKU Price Quantity Add to Cart
1Thieman 5730-001 - Tape Switch (96 Inches)Thieman 5730-001 - Tape Switch (96 Inches)5730-001-THIE$590.78
1Thieman 5730-002 - Tape Switch (102 Inches)Thieman 5730-002 - Tape Switch (102 Inches)5730-002-THIE$608.94
2Thieman 4383 - Wiring HarnessThieman 4383 - Wiring Harness4383-THIE$148.29
4Thieman 5724 - TDR Operating AlarmThieman 5724 - TDR Operating Alarm5724-THIE$61.47
6Thieman 4393 - Seal PlugThieman 4393 - Seal Plug4393-THIE$0.44
7Thieman 8180022 - Hex Head Screw (0.25-20 x 1 Inch) PTO Models ONLYThieman 8180022 - Hex Head Screw (0.25-20 x 1 Inch) PTO Models ONLY8180022-THIE$0.76
8Thieman 8120380 - Lock Washer (0.25)Thieman 8120380 - Lock Washer (0.25)8120380-THIE$0.44
9Thieman 4388 - Male Socket ConnectorThieman 4388 - Male Socket Connector4388-THIE$102.85
10Thieman 8120375 - Nut (0.25-20)Thieman 8120375 - Nut (0.25-20)8120375-THIE$0.44
11Thieman 4301750 - Toggle Switch SealThieman 4301750 - Toggle Switch Seal4301750-THIE$7.48
12Thieman 43013 - Four Way PlugThieman 43013 - Four Way Plug43013-THIE$7.18
14Thieman 43012 - Four Way ReceptacleThieman 43012 - Four Way Receptacle43012-THIE$7.18
17Thieman 4387 - Female Socket ConnectorThieman 4387 - Female Socket Connector4387-THIE$131.79
19Thieman 4390 - Connector WasherThieman 4390 - Connector Washer4390-THIE$3.44
20Thieman 4389 - Connector NutThieman 4389 - Connector Nut4389-THIE$8.38

LIFTGATE PARTS ORDERED WITHOUT PROVIDING YOUR LIFTGATE MODEL/SERIAL NUMBERS ARE NOT ELIGIBLE FOR RETURN.

PLEASE NOTE THAT THE PRICES BELOW ARE FOR A SINGLE ITEM. THE QTY COLUMN ON THE DIAGRAM SHOWS THE TOTAL NUMBER YOU WILL NEED FOR A COMPLETE ASSEMBLY.
