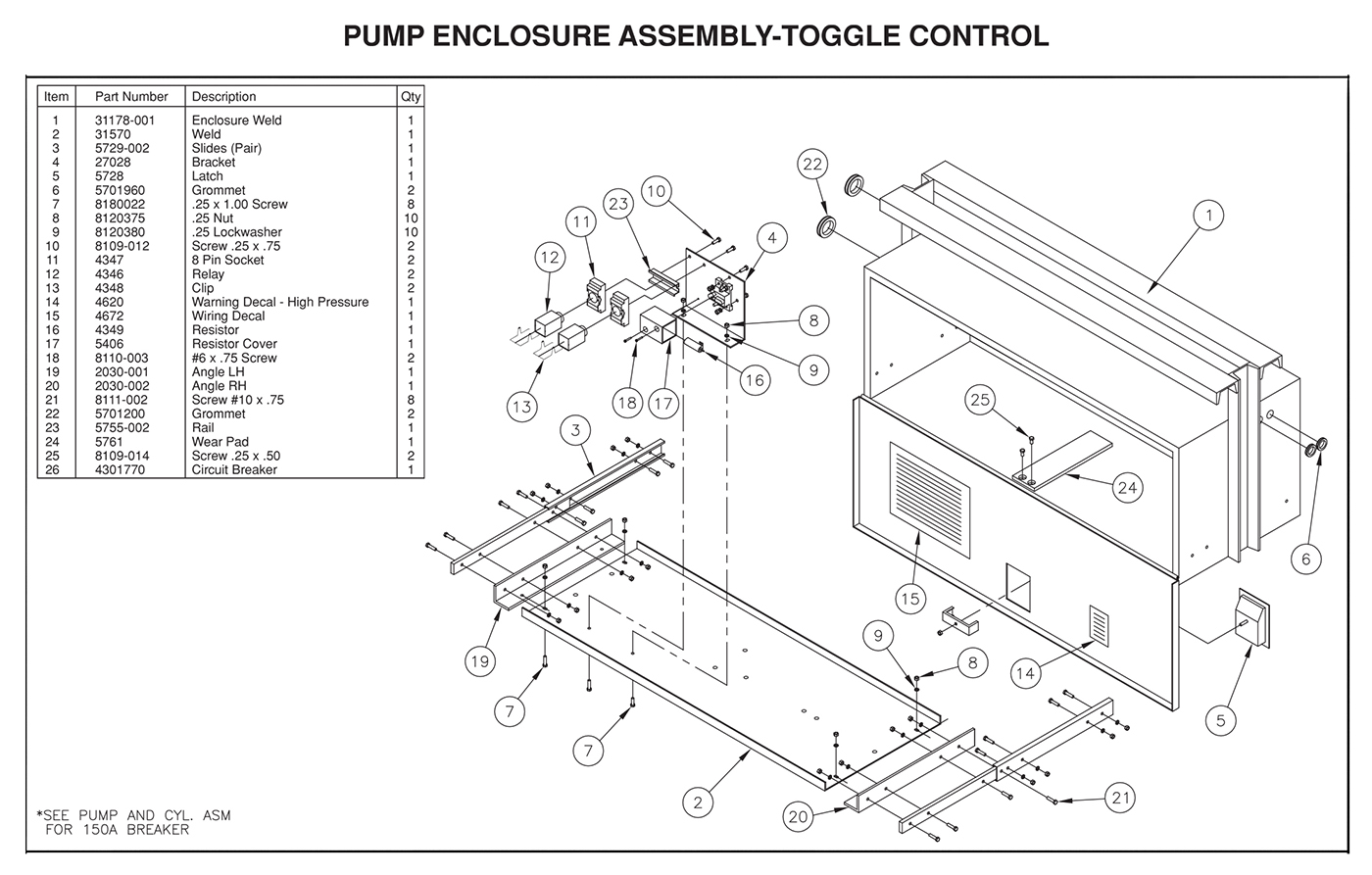

TDR 44/55/66 Pump Enclosure Assembly (Toggle Control) Diagram

TDR 44/55/66 Pump Enclosure Assembly (Toggle Control) Diagram

SKU: TDR445566-PEATC-DG Category: Brand:
ID Image Title SKU Price Quantity Add to Cart
1Thieman 31178-001 - Pump Enclosure WeldmentThieman 31178-001 - Pump Enclosure Weldment31178-001-THIE$765.38
3Thieman 5729-002 - Slides (Pair)Thieman 5729-002 - Slides (Pair)5729-002-THIE$226.03
4Thieman 27028 - Pump Enclosure BracketThieman 27028 - Pump Enclosure Bracket27028-THIE$48.30
5Thieman 5728 - Pump Enclosure LatchThieman 5728 - Pump Enclosure Latch5728-THIE$107.63
6Thieman 5701960 - Rubber GrommetThieman 5701960 - Rubber Grommet5701960-THIE$1.80
7Thieman 8180022 - Hex Head Screw (0.25-20 x 1 Inch) PTO Models ONLYThieman 8180022 - Hex Head Screw (0.25-20 x 1 Inch) PTO Models ONLY8180022-THIE$0.76
8Thieman 8120375 - Nut (0.25-20)Thieman 8120375 - Nut (0.25-20)8120375-THIE$0.44
9Thieman 8120380 - Lock Washer (0.25)Thieman 8120380 - Lock Washer (0.25)8120380-THIE$0.44
10Thieman 8109-012 - Hex Head Screw (0.25-20 x 0.75 Inch)Thieman 8109-012 - Hex Head Screw (0.25-20 x 0.75 Inch)8109-012-THIE$0.44
11Thieman 4347 - 8 Pin SocketThieman 4347 - 8 Pin Socket4347-THIE$35.80
12Thieman 4346 - RelayThieman 4346 - Relay4346-THIE$76.06
13Thieman 4348 - Relay ClipThieman 4348 - Relay Clip4348-THIE$3.72
16Thieman 4349 - ResistorThieman 4349 - Resistor4349-THIE$25.29
17Thieman 5406 - Resistor CoverThieman 5406 - Resistor Cover5406-THIE$40.66
18Thieman 8110-003 - Round Head Screw (#6-32 x 0.75 Inch)Thieman 8110-003 - Round Head Screw (#6-32 x 0.75 Inch)8110-003-THIE$0.44
19Thieman 2030-001 - LH Pump Enclosure AngleThieman 2030-001 - LH Pump Enclosure Angle2030-001-THIE$32.29
20Thieman 2030-002 - RH Pump Enclosure AngleThieman 2030-002 - RH Pump Enclosure Angle2030-002-THIE$32.29
21Thieman 8111-002 - Round Head Screw (#10-32 x 0.75)Thieman 8111-002 - Round Head Screw (#10-32 x 0.75)8111-002-THIE$0.76
22Thieman 5701200 - Rubber GrommetThieman 5701200 - Rubber Grommet5701200-THIE$3.16
23Thieman 5755-002 - 3.5 Inch RailThieman 5755-002 - 3.5 Inch Rail5755-002-THIE$10.66
24Thieman 5761 - Pump Enclosure Wear PadThieman 5761 - Pump Enclosure Wear Pad5761-THIE$26.91
25Thieman 8109-014 - Hex Head Tap Screw (0.25-20 x 0.50 Inch)Thieman 8109-014 - Hex Head Tap Screw (0.25-20 x 0.50 Inch)8109-014-THIE$0.76
26Thieman 4301770 - 150 AMP Circuit BreakerThieman 4301770 - 150 AMP Circuit Breaker4301770-THIE$86.10

LIFTGATE PARTS ORDERED WITHOUT PROVIDING YOUR LIFTGATE MODEL/SERIAL NUMBERS ARE NOT ELIGIBLE FOR RETURN.

PLEASE NOTE THAT THE PRICES BELOW ARE FOR A SINGLE ITEM. THE QTY COLUMN ON THE DIAGRAM SHOWS THE TOTAL NUMBER YOU WILL NEED FOR A COMPLETE ASSEMBLY.
