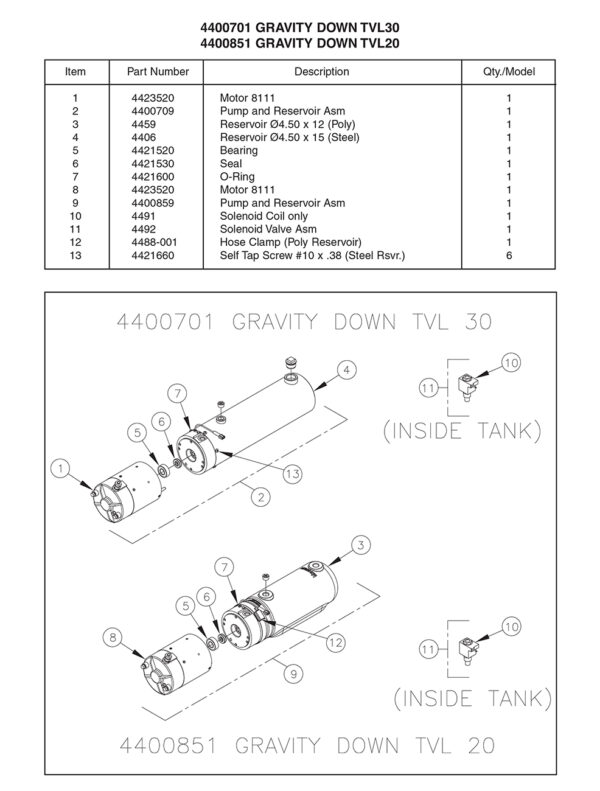

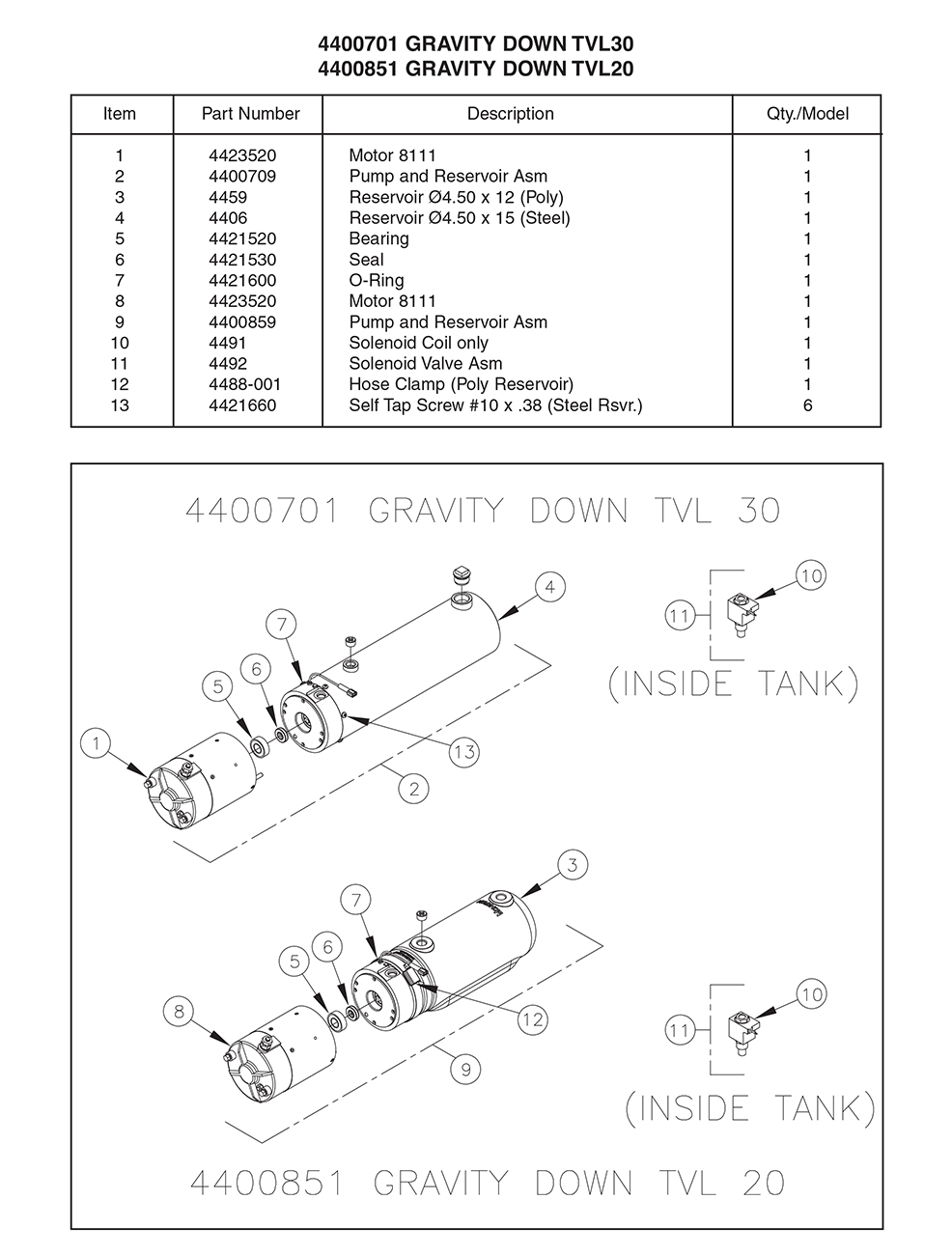

Thieman 4400701/4400851 Pump Assembly Diagram

Thieman 4400701/4400851 Pump Assembly Diagram

SKU: TPP-4400701-4400851PA-DG Category: Brand:
ID Image Title SKU Price Quantity Add to Cart
2Thieman 4400709 - Pump And Reservoir AssemblyThieman 4400709 - Pump And Reservoir Assembly4400709-THIE$673.37
3Thieman 4459 - Poly Reservoir (4.50 x 12 Inches) With PlugThieman 4459 - Poly Reservoir (4.50 x 12 Inches) With Plug4459-THIE$150.47
4Thieman 4406 - Steel Reservoir (4.50 x 15 Inches)Thieman 4406 - Steel Reservoir (4.50 x 15 Inches)4406-THIE$150.47
5Thieman 4421520 - BearingThieman 4421520 - Bearing4421520-THIE$36.04
6Thieman 4421530 - SealThieman 4421530 - Seal4421530-THIE$17.41
7Thieman 4421600 - O-RingThieman 4421600 - O-Ring4421600-THIE$4.92
8Thieman 4423520 - Motor 8111Thieman 4423520 - Motor 81114423520-THIE$870.00
9Thieman 4400859 - Pump And Reservoir AssemblyThieman 4400859 - Pump And Reservoir Assembly4400859-THIE$673.37

LIFTGATE PARTS ORDERED WITHOUT PROVIDING YOUR LIFTGATE MODEL/SERIAL NUMBERS ARE NOT ELIGIBLE FOR RETURN.

PLEASE NOTE THAT THE PRICES BELOW ARE FOR A SINGLE ITEM. THE QTY COLUMN ON THE DIAGRAM SHOWS THE TOTAL NUMBER YOU WILL NEED FOR A COMPLETE ASSEMBLY.
