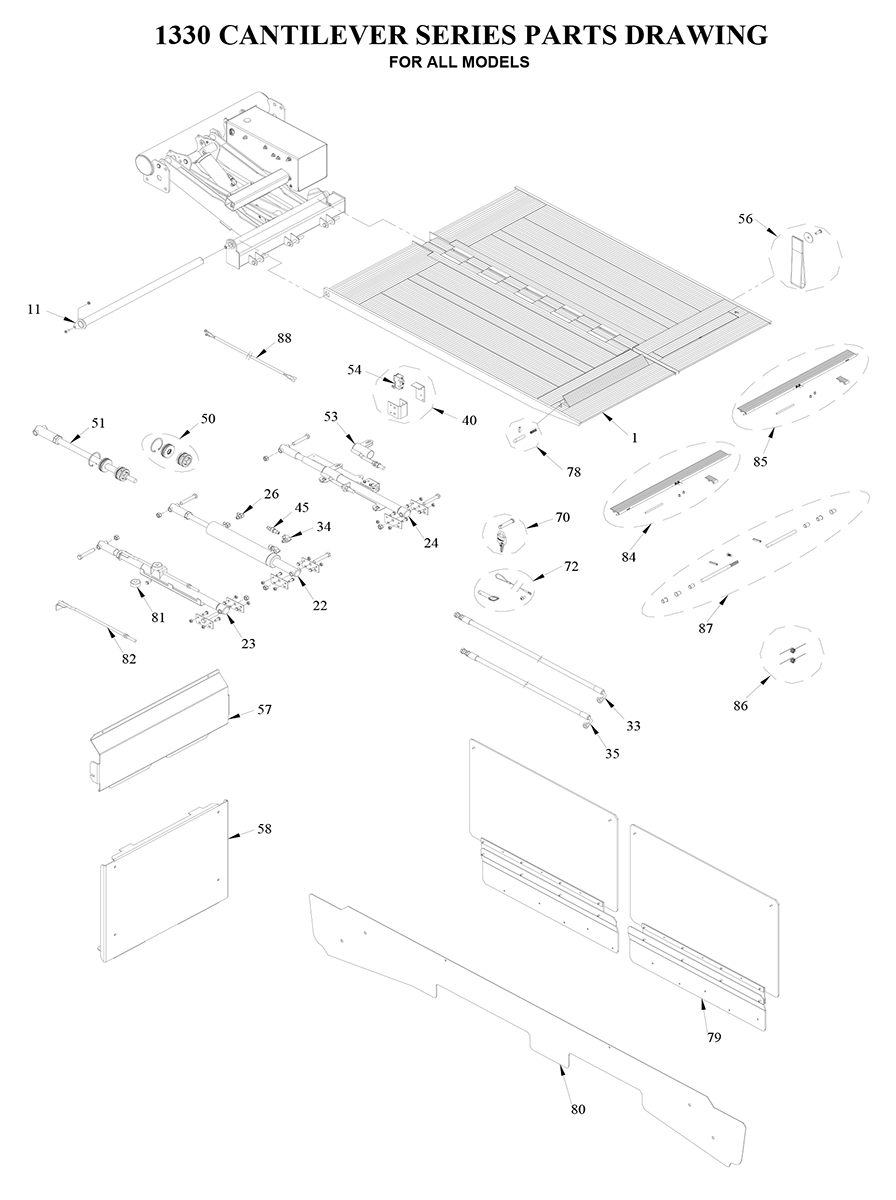

Tommy Gate Cantilever Series Diagram (1 OF 2) [Cargo Van]

Tommy Gate Cantilever Series Diagram (1 OF 2) [Cargo Van]

SKU: TG-CANTS-CV-DG1 Category: Brand:
ID Image Title SKU Price Quantity Add to Cart
1Tommy Gate 11252 - 71 Inch Replacement Aluminum PlatformTommy Gate 11252 - 71 Inch Replacement Aluminum Platform11252-TOMM$4,185.09
1Tommy Gate 11253 - 52 Inch Replacement Aluminum PlatformTommy Gate 11253 - 52 Inch Replacement Aluminum Platform11253-TOMM$3,426.15
11Tommy Gate 11254 - Replacement Cantilever Platform Pivot PinTommy Gate 11254 - Replacement Cantilever Platform Pivot Pin11254-TOMM$214.20
22Tommy Gate 11261 - Replacement Fold Cylinder (Cantilever)Tommy Gate 11261 - Replacement Fold Cylinder (Cantilever)11261-TOMM$792.23
23Tommy Gate 11260 - Replacement Platform Support Arm (Driver)Tommy Gate 11260 - Replacement Platform Support Arm (Driver)11260-TOMM$428.40
24Tommy Gate 11259 - Replacement Platform Support Arm (Passenger)Tommy Gate 11259 - Replacement Platform Support Arm (Passenger)11259-TOMM$466.20
26Tommy Gate 11283 - Replacement 04MORB x 04MJIC x 90 Degree Cyl. ElbowTommy Gate 11283 - Replacement 04MORB x 04MJIC x 90 Degree Cyl. Elbow11283-TOMM$9.93
33Tommy Gate 11255 - Replacement Hydraulic Hose- Fold Cylinder LongTommy Gate 11255 - Replacement Hydraulic Hose- Fold Cylinder Long11255-TOMM$84.90
34Tommy Gate 11276 - Replacement 04MORB x 04FPT x 90 Degree Cylinder ElbowTommy Gate 11276 - Replacement 04MORB x 04FPT x 90 Degree Cylinder Elbow11276-TOMM$17.49
35Tommy Gate 11256 - Replacement Hydraulic Hose - Fold Cylinder ShortTommy Gate 11256 - Replacement Hydraulic Hose - Fold Cylinder Short11256-TOMM$73.56
40Tommy Gate 11271 - Replacement Limit Switch Kit (Cantilever)Tommy Gate 11271 - Replacement Limit Switch Kit (Cantilever)11271-TOMM$103.32
45Tommy Gate 11281 - Replacement Flow Control (Cantilever)Tommy Gate 11281 - Replacement Flow Control (Cantilever)11281-TOMM$72.77
50Tommy Gate 11453 - Fold Cylinder Seal Repair Kit (Cantilever)Tommy Gate 11453 - Fold Cylinder Seal Repair Kit (Cantilever)11453-TOMM$157.19
51Tommy Gate 11454 - Fold Cylinder Shaft Kit (Cantilever)Tommy Gate 11454 - Fold Cylinder Shaft Kit (Cantilever)11454-TOMM$507.15
53Tommy Gate 13384 - Repair Up Stop Push off Assembly (Cantilever)Tommy Gate 13384 - Repair Up Stop Push off Assembly (Cantilever)13384-TOMM$84.27
54Tommy Gate 930 - Replacement Rail Safety SwitchTommy Gate 930 - Replacement Rail Safety Switch930-TOMM$61.59
56Tommy Gate 11844 - Replacement Handle Strap Retention Ramp (BF)Tommy Gate 11844 - Replacement Handle Strap Retention Ramp (BF)11844-TOMM$19.38
57Tommy Gate 11845 - Replacement Upper Platform Cover (Cantilever)Tommy Gate 11845 - Replacement Upper Platform Cover (Cantilever)11845-TOMM$127.58
58Tommy Gate 11846 - Replacement Lower Platform Cover (Cantilever)Tommy Gate 11846 - Replacement Lower Platform Cover (Cantilever)11846-TOMM$162.23
70Tommy Gate 914 - Replacement Locking Pin and Padlock with Keys (Cantilever)Tommy Gate 914 - Replacement Locking Pin and Padlock with Keys (Cantilever)914-TOMM$23.63
72Tommy Gate 11284 - Replacement Latch Pin with Lanyard (Cantilever)Tommy Gate 11284 - Replacement Latch Pin with Lanyard (Cantilever)11284-TOMM$17.49
78Tommy Gate 11285 - Replacement Cantilever Cart Stop Latch KitTommy Gate 11285 - Replacement Cantilever Cart Stop Latch Kit11285-TOMM$30.56
79Tommy Gate 11675 - Replacement Cantilever Sprinter BridgeTommy Gate 11675 - Replacement Cantilever Sprinter Bridge11675-TOMM$494.55
79Tommy Gate 13661 - Replacement Cantilever Nissan NV BridgeTommy Gate 13661 - Replacement Cantilever Nissan NV Bridge13661-TOMM$494.55
79Tommy Gate 14598 - Replacement Cantilever Ford Transit BridgeTommy Gate 14598 - Replacement Cantilever Ford Transit Bridge14598-TOMM$494.55
80Tommy Gate 13182 - Replacement Rear Cover ChevyTommy Gate 13182 - Replacement Rear Cover Chevy13182-TOMM$130.58
80Tommy Gate 13666 - Replacement Rear Cover NissanTommy Gate 13666 - Replacement Rear Cover Nissan13666-TOMM$130.58
80Tommy Gate 14599 - Replacement Rear Cover Ford TransitTommy Gate 14599 - Replacement Rear Cover Ford Transit14599-TOMM$130.58
81Tommy Gate 12216 - Replacement Driver Side Support Arm Rubber BumperTommy Gate 12216 - Replacement Driver Side Support Arm Rubber Bumper12216-TOMM$10.25
82Tommy Gate 12623 - Replacement Up Stop Rod AssemblyTommy Gate 12623 - Replacement Up Stop Rod Assembly12623-TOMM$63.63
84Tommy Gate 14540 - Replacement Primary Cart StopTommy Gate 14540 - Replacement Primary Cart Stop14540-TOMM$185.85
85Tommy Gate 14541 - Replacement Secondary Cart StopTommy Gate 14541 - Replacement Secondary Cart Stop14541-TOMM$185.85
86Tommy Gate 13566 - Repair Cart Stop Rail Torsion Spring KitTommy Gate 13566 - Repair Cart Stop Rail Torsion Spring Kit13566-TOMM$61.43
86Tommy Gate 14542 - Removable Cart Stop Torsion Spring KitTommy Gate 14542 - Removable Cart Stop Torsion Spring Kit14542-TOMM$43.47
87Tommy Gate 14543 - Removable Cart Stop Replacement Hinge KitTommy Gate 14543 - Removable Cart Stop Replacement Hinge Kit14543-TOMM$45.53
88Tommy Gate 14674 - Replacement Limit Switch Wire Harness(Cantilever)Tommy Gate 14674 - Replacement Limit Switch Wire Harness(Cantilever)14674-TOMM$67.41

LIFTGATE PARTS ORDERED WITHOUT PROVIDING YOUR LIFTGATE MODEL/SERIAL NUMBERS ARE NOT ELIGIBLE FOR RETURN.

PLEASE NOTE THAT THE PRICES BELOW ARE FOR A SINGLE ITEM. THE QTY COLUMN ON THE DIAGRAM SHOWS THE TOTAL NUMBER YOU WILL NEED FOR A COMPLETE ASSEMBLY.

The culmination of years of engineering, Cantilever Series models are highly versatile and include numerous desirable features. A bolt-on underside mount is compatible with most modern vans and eliminates the need for any welding. The platform is constructed from corrosion-resistant aluminum and folds laterally, allowing for access to the rear of the vehicle without operating the lift.

For use with Cargo Vans.
