PLEASE INDICATE THE FOLLOWING INFORMATION IN ORDER COMMENTS:
VEHICLE YEAR, VEHICLE MAKE, VEHICLE MODEL, VEHICLE DECK HEIGHT, APPLICATION CODE (see table below)
LIFTGATES ARE NOT RETURNABLE. MAKE SURE YOU PROVIDE ALL INFORMATION TO RECEIVE THE CORRECT LIFTGATE.

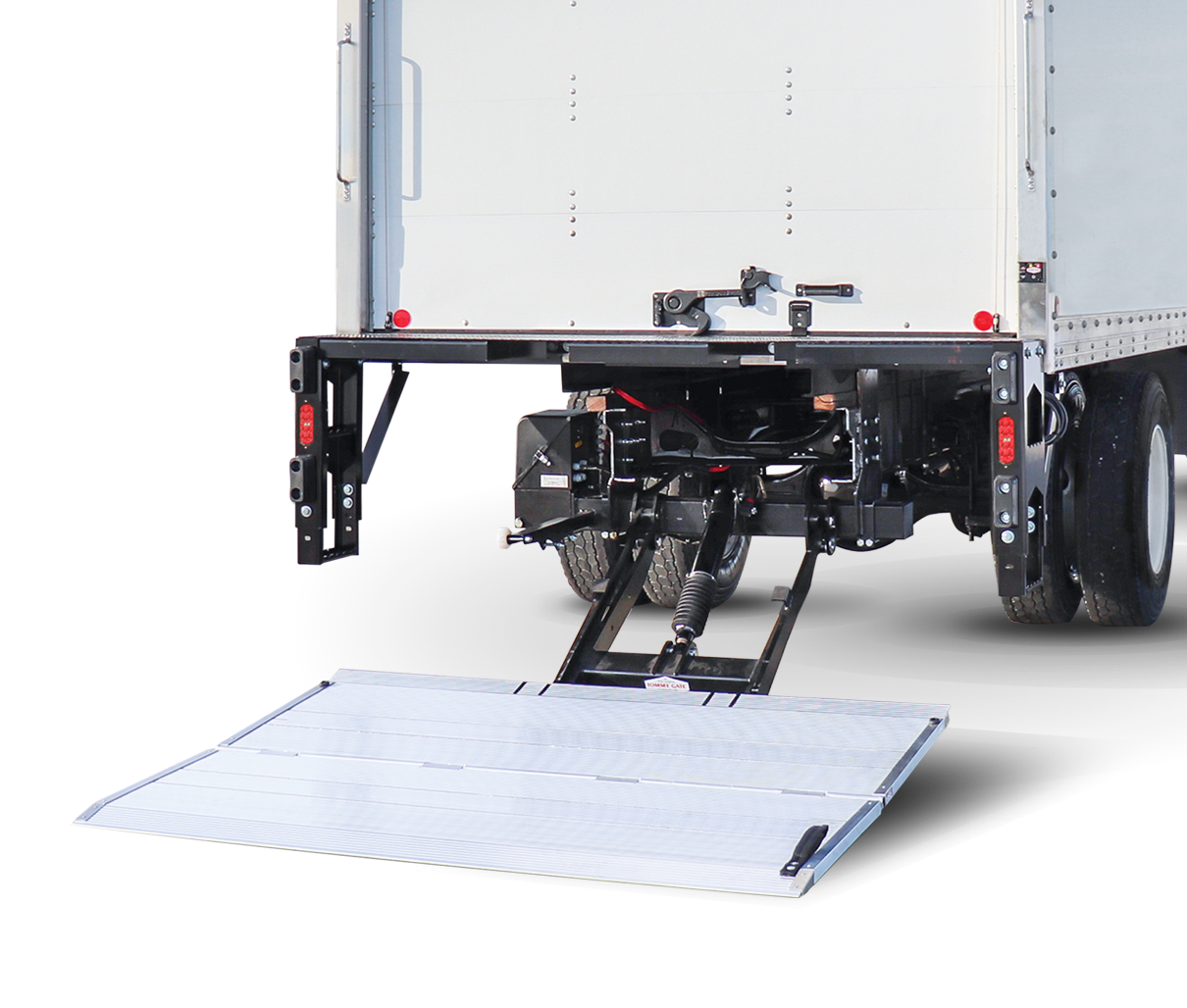

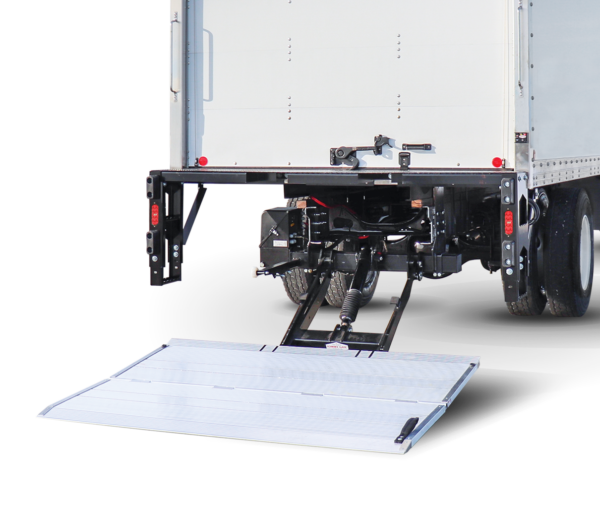

TKL Models
TKL models feature a single-cylinder, power-down, highly efficient design and accommodate bed heights from 33 to 47 inches. Lightweight and durable, the TKL combines sleek modern engineering and 2500 lbs. of lifting capacity and has applications to fit all major flatbed, stake, and van bodies.
Liftgate Capacity
2500 lbs.
Hydraulic System
Single-Cylinder
Tuckunder Style
Standard Ride
Tuckunder Series: TKL Features
- Low bed height compatible
- Lightweight
- Power-down
- Stores underneath the vehicle bed
- Low-profile, fixed toggle control
- Thermally protected motor
- Fully protected hydraulic system
Bed Extensions
All TKL, Tuckunder Series liftgates have an optional 3/16-inch steel construction bed extension. Choose an 18-inch, fixed side step (FX) for bed heights 33 to 39 inches or a 25 – 31-inch, adjustable side step (ADJ) for bed heights 40 to 47 inches. All Tommy Gate TKL, Tuckunder Series bed extensions come with rubber dock bumpers and an optional recessed light kit.
Lightweight and Low Bed Height Compatible
The Tommy Gate Tuckunder Series: TKL features a single-cylinder, power-down, highly efficient design and accommodates bed heights from 33 to 47 inches. Lightweight and durable, this liftgate will outlift and outlast most in its class.
Models for 96″ & 102″ Wide Bodies
| Model | Capacity | Load Area | Taper | Travel | Weight | Applications | Spec |
|---|---|---|---|---|---|---|---|
| TKL-78-25 EA33 | 2500 | 78  x  33 | 4 | 33-47 | 511 | A, B | |
| TKL-78-25 EA37 | 2500 | 78  x  37 | 4 | 35-47 | 519 | A, B | |
| TKL-78-25 EA41 | 2500 | 78  x  41 | 4 | 37-47 | 534 | A, B |
- Minimum bed height is laden. Maximum bed height is unladen.
- Must add bed extension weight for total installed gate weight.
- 4-inch front taper and a 4-inch back taper.
For further detailed liftgate dimensions, please click here.Â
  Applications & Order Codes – Flatbed and Van → Tuckunder Series: TKL
| Code | Body Style |
|---|---|
| A | 102″ Wide Bodies |
| B | 96″ Wide Bodies |
Available Bed Extensions*
| Body Size | Bed Height | Bed Extension Type** | Weight | Description |
|---|---|---|---|---|
| 96″ | 33 – 39 | FX | 219 | 18″, bolt-on side steps, including rubber dock bumpers |
| 96″ | 40 – 47 | ADJ | 257 | 25-31″, adjustable, bolt-on side steps, including rubber dock bumpers |
| 102″ | 33 – 39 | FX | 227 | 18″, bolt-on side steps, including rubber dock bumpers |
| 102″ | 40 – 47 | ADJ | 265 | 25-31″, adjustable, bolt-on side steps, including rubber dock bumpers |
*Â All bed extensions are 3/16-inch thick steel construction
**Â 18-inch, fixed side steps (FX) are only available on bed heights 33 to 39 inches
25 – 31-inch, adjustable side steps (ADJ) are only available on bed heights 40 to 47 inches
