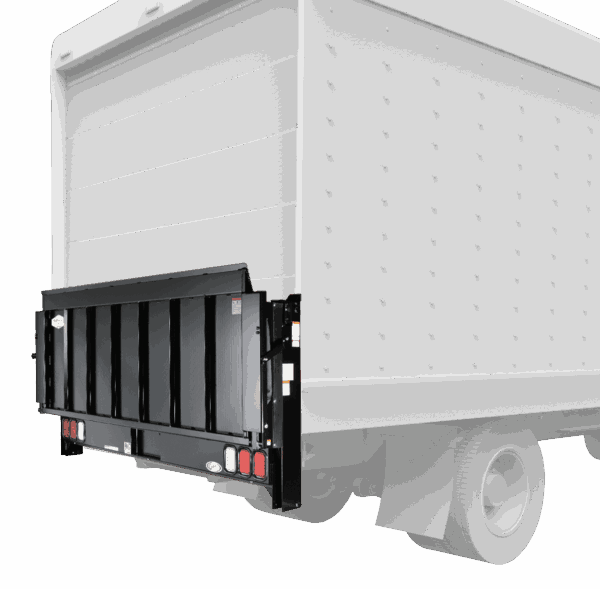

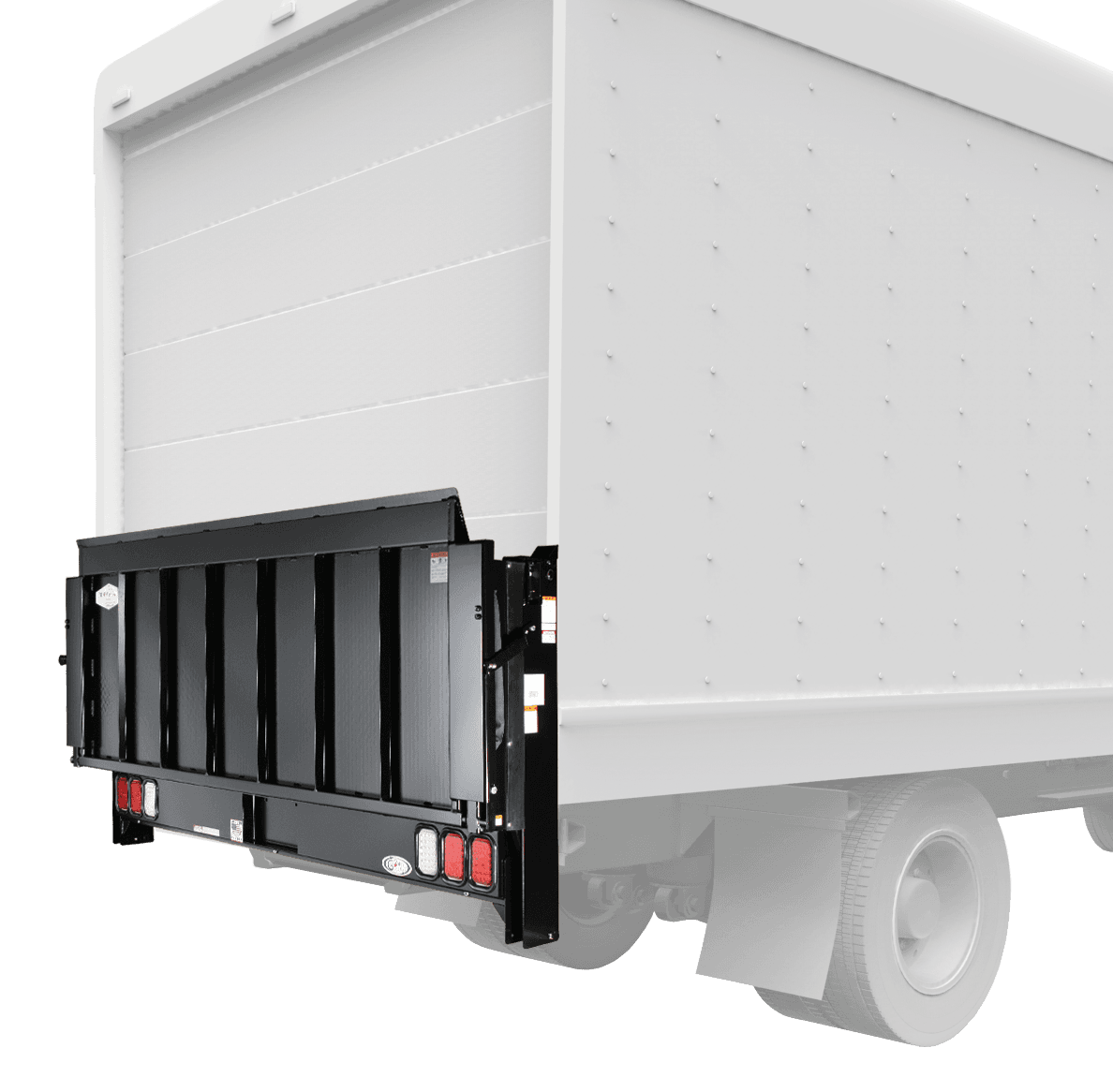

G2 Series Flatbed and Van Liftgates for 96″ Wide Bodies
More Than a Pickup Lift
Supporting larger platforms, G2 Series models are compatible with flatbed, stake, and van bodies and offer a wide selection of platform materials to accommodate almost any industry application.
Liftgate Capacity
1000 – 2000 lbs.
Hydraulic System
Dual-Cylinder
Lift Style
Parallel-Arm
G2 Series Features
- Dual hydraulic cylinders
- Virtually maintenance-free components
- Recessed control
- Hitch compatibility
- Larger platforms
- Fully enclosed hydraulic system located within the liftgate mainframe
Dual Drive
Hydraulic cylinders are built in-house. Precision cylinder welds are executed by robotic machines, while assembly and testing are done by hand.
Direct Power
The Tommy Gate G2 Series is a dual-cylinder, parallel-arm design that utilizes a pair of hydraulic cylinders to lower and raise the lift by applying direct power to both sides of the platform.
| Model | Capacity | Load Area | Taper | Travel | Weight | Applications | Spec |
|---|---|---|---|---|---|---|---|
| G2-92-2050 TP35 | 2000 | 87  x  35 | 6 | 50 | 653 | B | |
| G2-92-2050 TP41 | 2000 | 87  x  41 | 6 | 50 | 686 | B | |
| G2-92-2050 EA37 | 2000 | 85  x  37 | 6 | 50 | 569 | B | |
| G2-92-2050 EA41 | 2000 | 85  x  41 | 6 | 50 | 585 | B | |
| G2-92-2050 TT33 | 2000 | 87  x  33 | 6 | 50 | 637 | B | |
| G2-92-1650 BG33 | 1600 | 87  x  33 | 6 | 50 | 637 | B | |
| G2-92-1650 EA41 | 1600 | 85  x  41 | 6 | 50 | 577 | B | |
| G2-92-1650 EA37 | 1600 | 85  x  37 | 6 | 50 | 561 | B | |
| G2-92-1650 TT33 | 1600 | 87  x  33 | 6 | 50 | 612 | B | |
| G2-92-1650 TP41 | 1600 | 87  x  41 | 6 | 50 | 655 | B | |
| G2-92-1650 TP35 | 1600 | 87  x  35 | 6 | 50 | 628 | B | |
| G2-92-1350 BG33 | 1300 | 87  x  33 | 6 | 50 | 637 | B | |
| G2-92-1350 EA41 | 1300 | 85  x  41 | 6 | 50 | 577 | B | |
| G2-92-1350 EA37 | 1300 | 85  x  37 | 6 | 50 | 561 | B | |
| G2-92-1350 TT33 | 1300 | 87  x  33 | 6 | 50 | 612 | B | |
| G2-92-1350 TP41 | 1300 | 87  x  41 | 6 | 50 | 655 | B | |
| G2-92-1350 TP35 | 1300 | 87  x  35 | 6 | 50 | 628 | B |
  Applications & Order Codes – Flatbed and Van → G2 Series
| Code | Body Style |
|---|---|
| B | 96″ Wide Bodies |
| C | 90″ Wide Bodies |
| D | 85″ Wide Bodies |
| E | 80″ Wide Bodies |
| F | >67″ Wide Bodies |
| G | >65″ Wide Bodies |
| H | – |
