Railgate Series: Dock-Friendly Aluminum-Frame Models for 96″ Wide Bodies
Dock-Friendly (RF) Railgate Models
Dock-friendly models feature folding “RF” platforms able to achieve non-obstructing positions for forklift or dock loading. Also included are a closure-assist torsion bar and maintenance-free bushings, making them some of the best liftgates ever seen in a loading bay.
Liftgate Capacity
1600 & 2000 lbs.
Hydraulic System
Single-Cylinder
Rail Style
Padded Sliders
Railgate Series: Dock-Friendly Features

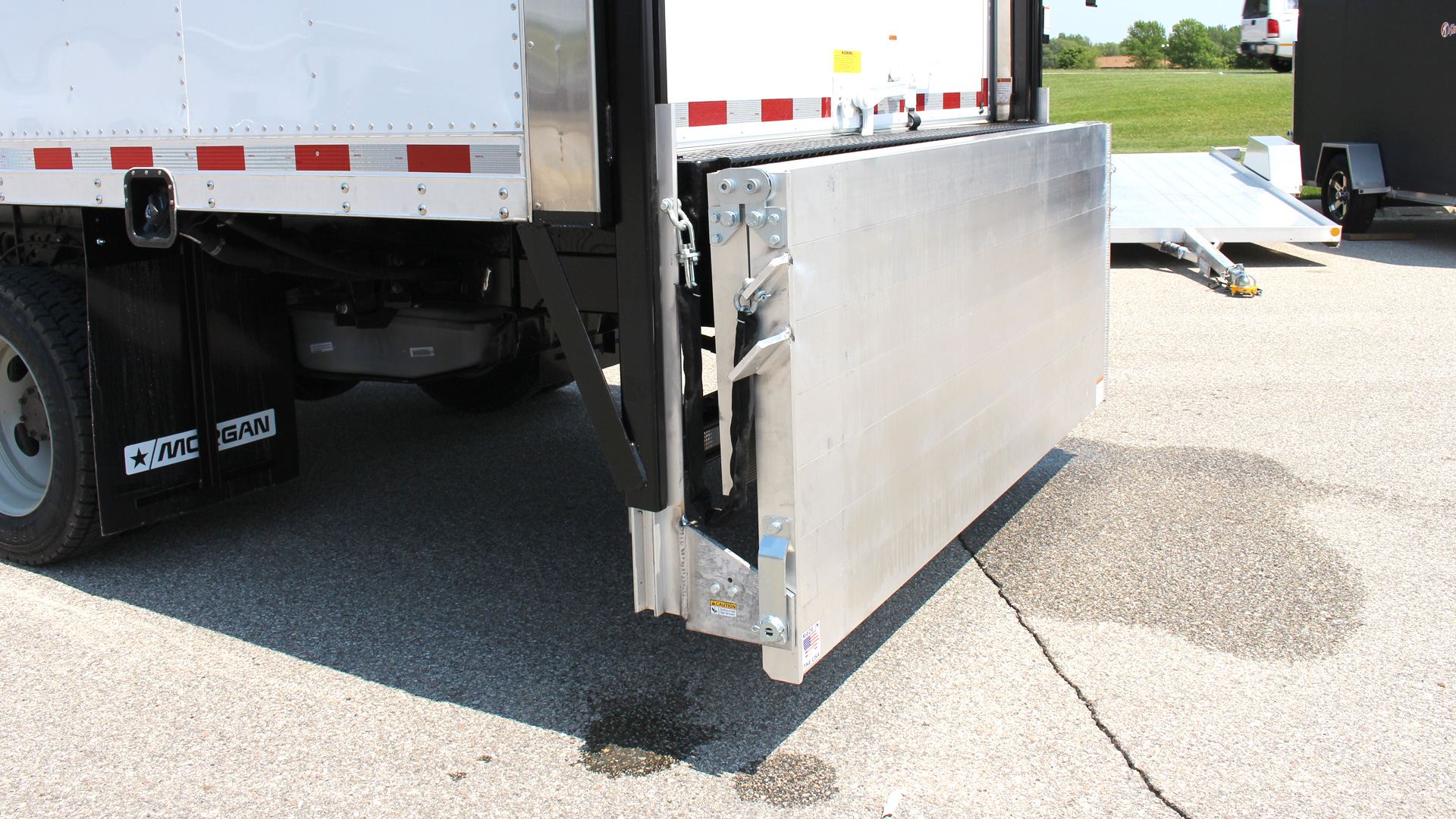

Dock-friendly platforms fold and can be lowered to a vertical position, allowing for easy loading with a dock or forklift.
Drop-Away Function
The “drop away” position allows for the liftgate platform to be easily moved out of the way of direct dock loading.
Above-Bed Travel
All “dock-friendly” model railgates come with standard above-bed capability, allowing the platform to rise above the liftgate mainframe to meet additional dock height.
Aluminum-Frame Models for 96″ Wide Bodies
| Model | Capacity | Load Area | Taper | Travel | Weight | Applications | Spec |
|---|---|---|---|---|---|---|---|
| A85-16 RF 45-6 | 1600 | 85  x  45 | 6 | 32-54 | 539 | B | |
| A85-16 RF 45-12 | 1600 | 85  x  45 | 12 | 32-54 | 553 | B | |
| A85-16 RF 50-6 | 1600 | 85  x  50 | 6 | 32-54 | 559 | B | |
| A85-20 RF 45-6 | 2000 | 85  x  45 | 6 | 32-54 | 539 | B | |
| A85-20 RF 45-12 | 2000 | 85  x  45 | 12 | 32-54 | 553 | B | |
| A85-20 RF 50-6 | 2000 | 85  x  50 | 6 | 32-54 | 559 | B |
- All-Aluminum-Frame RF Railgate models are sized down due to the bolt-on mounting flanges.
Applications & Order Codes – Flatbed and Van → Railgate Series: Dock-Friendly
| Code | Body Style |
|---|---|
| A | 102″ Wide Bodies |
| B | 96″ Wide Bodies |
| C | 90″ Wide Bodies |
| D | 85″ Wide Bodies |
| E | 80″ Wide Bodies |
