Tommy Gate Railgate Series: Bi-Fold 96″ and 102″ Bodies
PLEASE INDICATE THE FOLLOWING INFORMATION IN YOUR ORDER COMMENTS:
- VEHICLE YEAR
- VEHICLE MAKE
- VEHICLE MODEL
- VEHICLE DECK HEIGHT
- APPLICATION CODE (see table below)
LIFTGATES ARE NOT RETURNABLE. MAKE SURE YOU PROVIDE AS MUCH INFORMATION AS POSSIBLE TO ENSURE YOU RECEIVE THE CORRECT LIFTGATE.

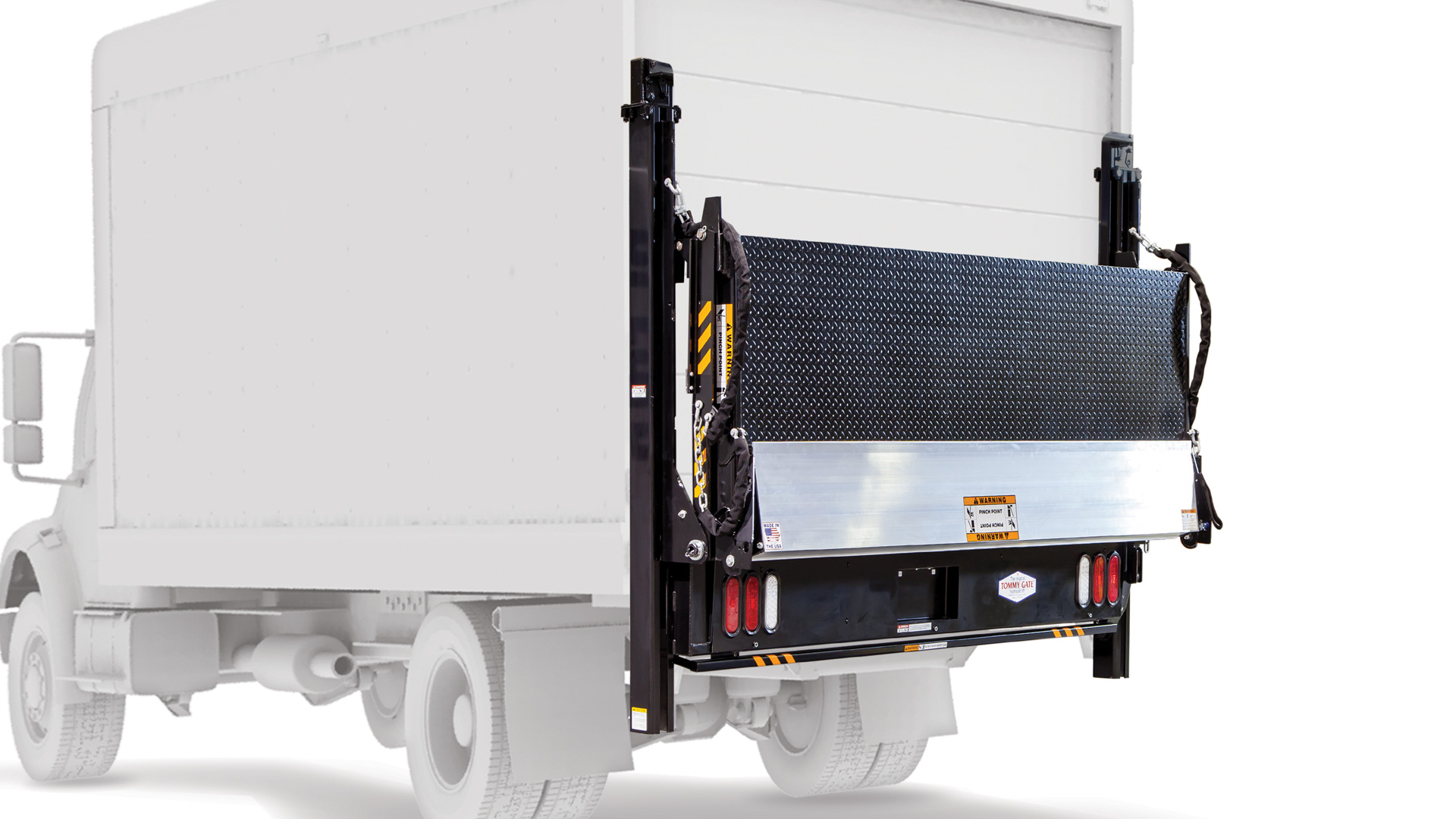

Bi-Fold Railgate Models
The most versatile, dependable liftgates ever seen in a loading bay, Bi-Fold, High-Cycle models support large steel platforms and high lifting capacities while still remaining completely dock-compatible. The platform drop-down function allows work vehicles to load and unload in any manner at any location.
Liftgate Capacity
2500 & 3000 lbs.
Rail Style
Steel Rollers
Hydraulic System
Single-Cylinder
Railgate Series: Bi-Fold Features
- High-Cycle durability
- Low-profile, fixed toggle control
- Self-close system
- Above-bed travel option available
- Dock compatible
Drop-away Position
In the drop-away position, Bi-Fold Railgate platforms rest at bed height, allowing seamless dock compatibility.
Low-profile Control
The Low-Profile Control, a standard feature on all High-Cycle Railgates, includes an inactivity shut-off to guard against unauthorized use.
Models for 96″ Wide Bodies
| Model | Capacity | Load Area | Taper | Travel | Weight | Applications | Spec |
|---|---|---|---|---|---|---|---|
| 89-25 BF TP60 | 2500 | 83  x  60 | 13 | 34-54 | 1320 | B | |
| 89-25 BF TP70 | 2500 | 83  x  70 | 13 | 38-54 | 1378 | B | |
| 89-30 BF TP60 | 3000 | 83  x  60 | 13 | 34-54 | 1320 | B | |
| 89-30 BF TP70 | 3000 | 83  x  70 | 13 | 38-54 | 1378 | B |
- The minimum bed height range is laden. The maximum bed height range is unladen.
- Standard, aluminum retention ramp serves as a 13-inch, folding platform taper on Bi-Fold Railgate models.
Models for 102″ Wide Bodies
| Model | Capacity | Load Area | Taper | Travel | Weight | Applications | Spec |
|---|---|---|---|---|---|---|---|
| 95-25 BF TP60 | 2500 | 89  x  60 | 13 | 34-54 | 1362 | A | |
| 95-25 BF TP70 | 2500 | 89  x  70 | 13 | 38-54 | 1420 | A | |
| 95-30 BF TP60 | 3000 | 89  x  60 | 13 | 34-54 | 1362 | A | |
| 95-30 BF TP70 | 3000 | 89  x  70 | 13 | 38-54 | 1420 | A |
- The minimum bed height range is laden. The maximum bed height range is unladen.
- Standard, aluminum retention ramp serves as a 13-inch, folding platform taper on Bi-Fold Railgate models.
Applications & Order Codes – Flatbed and Van → Railgate Series: Bi-Fold
| Code | Body Style |
|---|---|
| A | 102″ Wide Bodies |
| B | 96″ Wide Bodies |
