Name: Railgate Series: High-Cycle 102" Bodies
Brand: Tommy Gate
SKU: 55073
Availability: InStock

Tommy Gate Railgate Series: High-Cycle 102″ Bodies

PLEASE INDICATE THE FOLLOWING INFORMATION IN YOUR ORDER COMMENTS:

VEHICLE YEAR
VEHICLE MAKE
VEHICLE MODEL
VEHICLE DECK HEIGHT
APPLICATION CODE (see table below)

LIFTGATES ARE NOT RETURNABLE. MAKE SURE YOU PROVIDE AS MUCH INFORMATION AS POSSIBLE TO ENSURE YOU RECEIVE THE CORRECT LIFTGATE.

High-Cycle Railgate Models

Tommy Gate Railgate Series High-cycle models apply a steel roller and leaf-chain pulley system to maximize smoothness of motion, endurance, and strength. This medium-duty railgate is ideal for high-cycle applications in any environment. These lifts are built with high-quality components, with a priority on function and safety.

Liftgate Capacity

2500 & 3000 lbs.

Rail Style

Steel Rollers

Hydraulic System

Single-Cylinder

Railgate Series: High-Cycle Features

High-Cycle durability
Higher lifting capacities
Larger platforms
Dock compatible

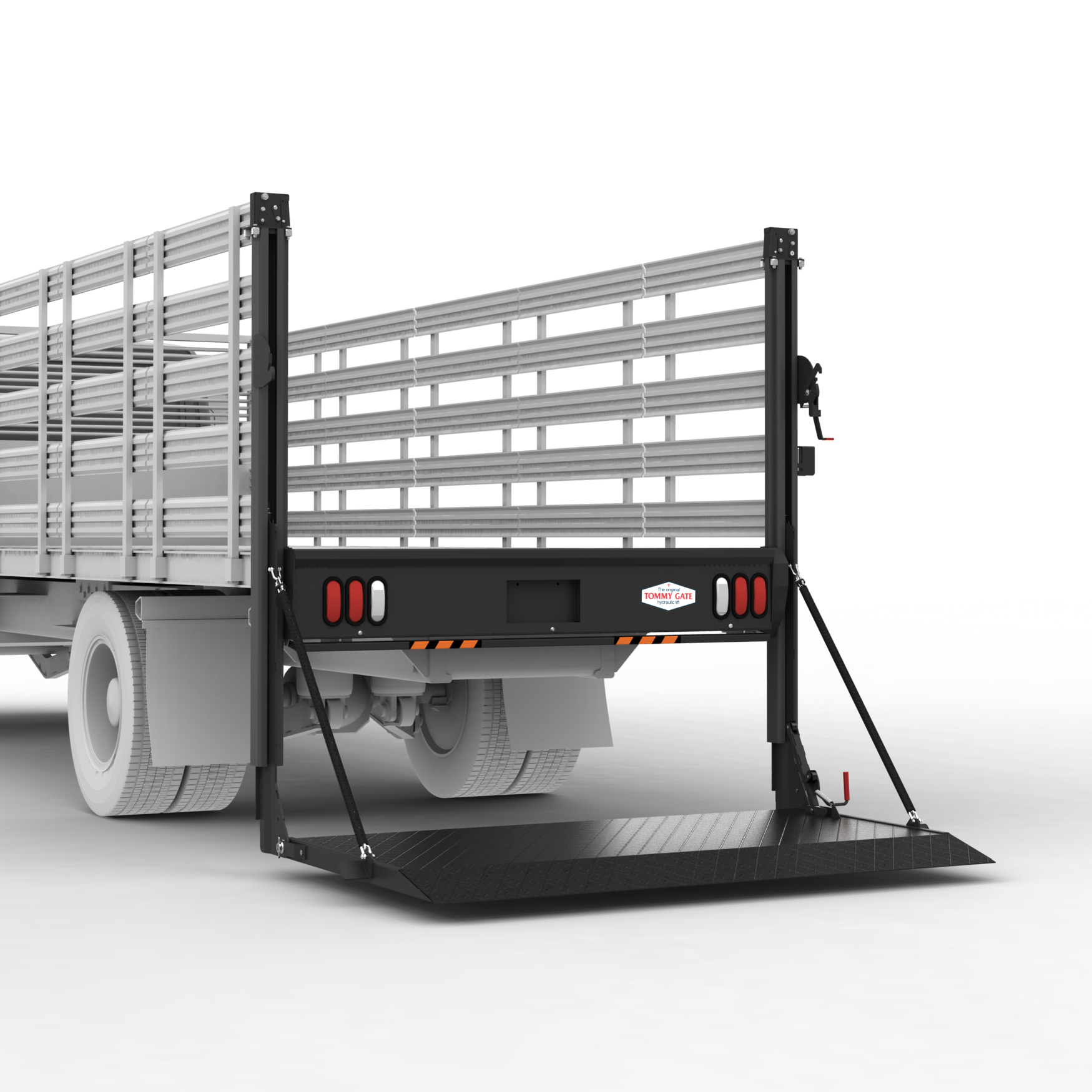

Railgate Series: High-Cycle Overview Image A

Rollers

Steel rollers guide the platform vertically within the rail track and are designed to withstand intensive cycling. Dual-sealed, maintenance-free ball bearings ensure the rollers are long-lasting and perform consistently in all climate conditions.

Safety

High-cycle railgates come standard with a safety trip bar, auto open and close, and recessed lights. Taper-integrated cart stops are optional on extruded-aluminum platform models.

Available Tommy Gate Railgate Series Models for 102″ Wide Bodies

Model	Capacity	Load Area	Taper	Travel	Weight	Applications
95-25 TP36	2500	95 x 36	12	32-54	1065	A
95-25 TP42	2500	95 x 42	12	32-54	1121	A
95-25 TP48	2500	95 x 48	12	32-54	1178	A
95-25 EA55	2500	95 x 55	12	32-54	987	A
95-30 TP36	3000	95 x 36	12	32-54	1065	A
95-30 TP42	3000	95 x 42	12	32-54	1121	A
95-30 TP48	3000	95 x 48	12	32-54	1178	A
95-30 EA55	3000	95 x 55	12	32-54	987	A

Applications and Order Codes – Flatbed and Van → Railgate Series: High-Cycle

Code	Body Style
A	102″ Wide Bodies
B	96″ Wide Bodies
C	90″ Wide Bodies

95-25 TP36 quantity	95-25 TP36	$6,974.85 Call or email for lead time
95-25 TP42 quantity	95-25 TP42	$7,262.00 Call or email for lead time
95-25 TP48 quantity	95-25 TP48	$7,547.61 Call or email for lead time
95-25 EA55 quantity	95-25 EA55	$8,785.79 Call or email for lead time
95-30 TP36 quantity	95-30 TP36	$7,339.48 Call or email for lead time
95-30 TP42 quantity	95-30 TP42	$7,625.09 Call or email for lead time
95-30 TP48 quantity	95-30 TP48	$7,910.71 Call or email for lead time
95-30 EA55 quantity	95-30 EA55	$9,036.47 Call or email for lead time

Railgate Series: High-Cycle 102″ Bodies
