Tommy Gate G2 Series Service Body
Tommy Gate G2 Series Service Body

Service Body – G2 Series for 48-Inch Openings

Price range: $2,679.95 through $4,127.79

- +
$2,679.95

Submit a Stock Inquiry to check lead time.

- +
$2,719.44

Submit a Stock Inquiry to check lead time.

- +
$2,821.23

Submit a Stock Inquiry to check lead time.

- +
$2,827.32

Submit a Stock Inquiry to check lead time.

- +
$3,322.59

Submit a Stock Inquiry to check lead time.

- +
$3,527.69

Submit a Stock Inquiry to check lead time.

- +
$3,893.83

Submit a Stock Inquiry to check lead time.

- +
$2,910.87

Submit a Stock Inquiry to check lead time.

- +
$2,720.97

Submit a Stock Inquiry to check lead time.

- +
$2,948.86

Submit a Stock Inquiry to check lead time.

- +
$3,050.65

Submit a Stock Inquiry to check lead time.

- +
$3,058.24

Submit a Stock Inquiry to check lead time.

- +
$3,556.55

Submit a Stock Inquiry to check lead time.

- +
$3,760.13
- +
$4,127.79

Submit a Stock Inquiry to check lead time.

- +
$3,144.84

Submit a Stock Inquiry to check lead time.
Category: Brand:

Service Body – G2 Series for 48-Inch Openings

PLEASE INDICATE THE FOLLOWING INFORMATION IN ORDER COMMENTS:

VEHICLE YEAR, VEHICLE MAKE, VEHICLE MODEL, VEHICLE DECK HEIGHT, APPLICATION CODE (see table below)

LIFTGATES ARE NOT RETURNABLE. MAKE SURE YOU PROVIDE ALL INFORMATION TO RECEIVE THE CORRECT LIFTGATE.

The Second Generation

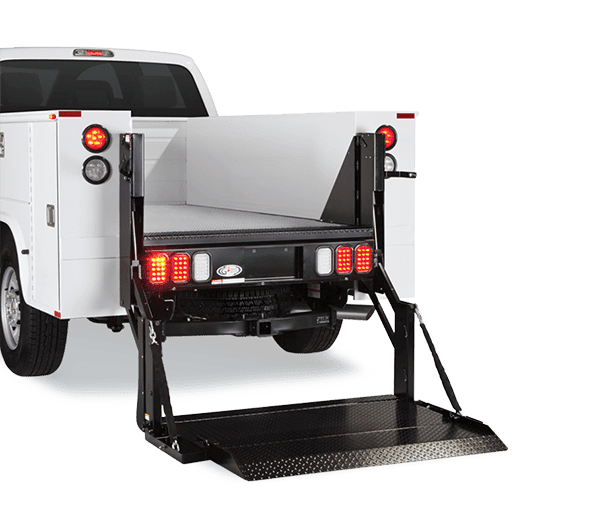

The Tommy Gate G2 Series is a dual-cylinder, parallel-arm design that utilizes a pair of hydraulic cylinders to lower and raise the lift by applying direct power to both sides of the platform. With forty-two inches of vertical travel, the G2 Series is a great fit for most service bodies.

Liftgate Capacity

Liftgate Capacity Icon

1300 & 1600lbs.

Hydraulic System

Hydraulic System Icon

Dual-Cylinder

Lift Style

Lift Style Icon

Parallel-Arm

G2 Series Features

  • Dual hydraulic cylinders
  • Virtually maintenance-free components
  • Recessed control
  • Larger platforms
  • Fully enclosed hydraulic system located within the liftgate mainframe
G2 Series Overview Image A

  Models for Service Bodies with 48″ Openings



Model Capacity Load Area Taper Travel Weight Applications Spec
G2-54-1342 TP27 1300 49  x  27 4 42 415 A
G2-54-1342 TP38 1300 49  x  38 4 42 453 A
G2-54-1342 TP42 1300 49  x  42 7 42 477 A
G2-54-1342 TT27 1300 50  x  27 4 42 416 A
G2-54-1342 EA27 1300 49  x  27 6 42 375 A
G2-54-1342 EA38 1300 49  x  38 6 42 399 A
G2-54-1342 EA48 1300 49  x  48 6 42 419 A
G2-54-1342 BG27 1300 50  x  28 4 42 422 A
G2-54-1642 TP27 1600 49  x  27 4 42 415 A
G2-54-1642 TP38 1600 49  x  38 4 42 453 A
G2-54-1642 TP42 1600 49  x  42 7 42 477 A
G2-54-1642 TT27 1600 50  x  27 4 42 416 A
G2-54-1642 EA27 1600 49  x  27 6 42 375 A
G2-54-1642 EA38 1600 49  x  38 6 42 399 A
G2-54-1642 EA48 1600 49  x  48 6 42 419 A
G2-54-1642 BG27 1600 50  x  27 4 42 422 A
  1. The EA48 platform extends 10″ above the liftgate mainframe when closed.
  2. Please provide bed height and body opening measurements when ordering.
Applications & Brackets – Service Body → G2 Series
Code Body Style
B Service / Utility Body w/ 54″ Opening
A Service / Utility Body w/ 48″ Opening
