Service Body – G2 Series Additional Models (66″ Opening)
PLEASE INDICATE THE FOLLOWING INFORMATION IN ORDER COMMENTS:
VEHICLE YEAR, VEHICLE MAKE, VEHICLE MODEL, VEHICLE DECK HEIGHT, APPLICATION CODE (see table below)
LIFTGATES ARE NOT RETURNABLE. MAKE SURE YOU PROVIDE ALL INFORMATION TO RECEIVE THE CORRECT LIFTGATE.

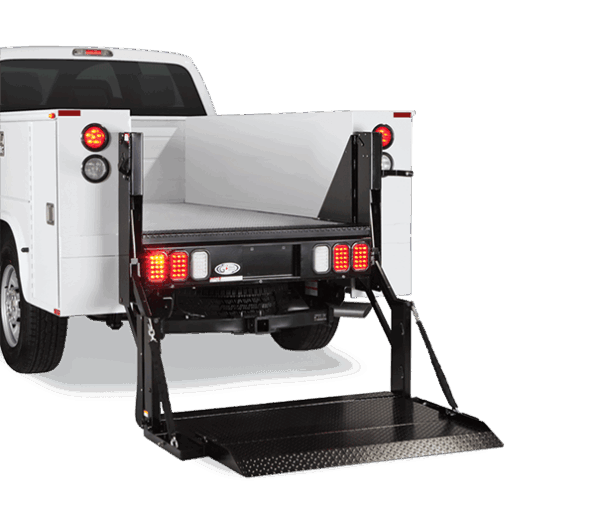

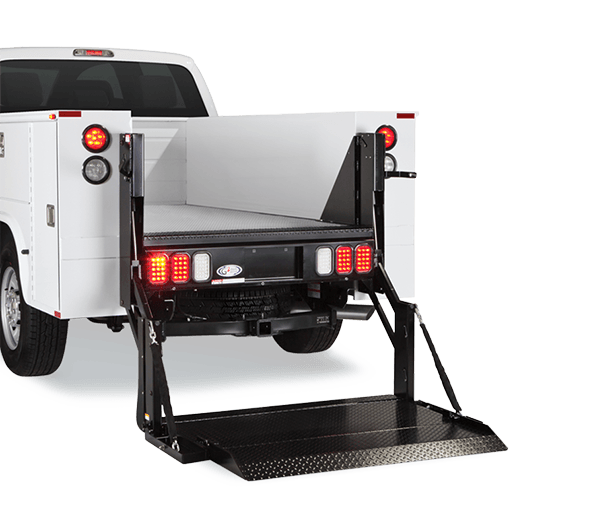

The Second Generation
The Tommy Gate G2 Series is a dual-cylinder, parallel-arm design that utilizes a pair of hydraulic cylinders to lower and raise the lift by applying direct power to both sides of the platform. With forty-two inches of vertical travel, the G2 Series is a great fit for most service bodies.
Liftgate Capacity
1300 & 1600lbs.
Hydraulic System
Dual-Cylinder
Lift Style
Parallel-Arm
G2 Series Features
- Dual hydraulic cylinders
- Virtually maintenance-free components
- Recessed control
- Larger platforms
- Fully enclosed hydraulic system located within the liftgate mainframe
Models for Service Bodies w/ 66″ Openings
| Model | Capacity | Load Area | Taper | Travel | Weight | Applications | Spec |
|---|---|---|---|---|---|---|---|
| G2-65-1350 TP35 | 1300 | 61  x  35 | 6 | 50 | 520 | F | |
| G2-65-1350 TP41 | 1300 | 61  x  41 | 6 | 50 | 541 | F | |
| G2-65-1350 TT33 | 1300 | 61  x  33 | 6 | 50 | 508 | F | |
| G2-65-1350 EA37 | 1300 | 60  x  37 | 6 | 50 | 471 | F | |
| G2-65-1350 EA41 | 1300 | 60  x  41 | 6 | 50 | 482 | F | |
| G2-65-1350 BG33 | 1300 | 62  x  33 | 6 | 50 | 527 | F | |
| G2-65-1650 TP35 | 1600 | 61  x  35 | 6 | 50 | 520 | F | |
| G2-65-1650 TP41 | 1600 | 61  x  41 | 6 | 50 | 541 | F | |
| G2-65-1650 EA41 | 1600 | 60  x  41 | 6 | 50 | 482 | F | |
| G2-65-1650 BG33 | 1600 | 62  x  33 | 6 | 50 | 527 | F | |
| G2-65-1650 EA37 | 1600 | 60  x  37 | 6 | 50 | 471 | F | |
| G2-65-1650 TT33 | 1600 | 61  x  33 | 6 | 50 | 508 | F |
Applications & Brackets – Service Body → G2 Series
| Code | Body Style |
|---|---|
| B | Service / Utility Body w/ 54″ Opening |
| A | Service / Utility Body w/ 48″ Opening |
