| ID | Image | Title | SKU | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|
| 2 |  | Tommy Gate 10895 - Rail (AB) 65+6 Replacement Platform Chain | 10895-TOMM | $110.73 | ||
| 2 | | Tommy Gate 2863 - Rail (R-Fold 30 Inch Base) Replacement Platform Chain | 2863-TOMM | $86.60 | ||
| 2 | | Tommy Gate 2864 - Rail (R-Fold 35 Inch Base) Replacement Platform Chain | 2864-TOMM | $93.26 | ||
| 2 | | Tommy Gate 3894 - Rail (BH) Replacement Platform Chain | 3894-TOMM | $110.73 | ||
| 2 | | Tommy Gate 3895 - Rail (AB) Replacement Platform Chain | 3895-TOMM | $98.13 | ||
| 2 | | Tommy Gate 3896 - Rail (BH) 65+6 Replacement Platform Chain | 3896-TOMM | $117.35 | ||
| 3 | | Tommy Gate 931 - Replacement Tuckunder Latch Spring | 931-TOMM | $9.45 | ||
| 4 | | Tommy Gate 1111 - License Plate Mount Kit | 1111-TOMM | $6.30 | ||
| 5 | | Tommy Gate 8591 - Replacement Bearing Pad Set (Aluminum Mainframe) | 8591-TOMM | $54.81 | ||
| 5 | | Tommy Gate 8618 - Replacement Bearing Pad Set (Steel Mainframe) | 8618-TOMM | $54.81 | ||
| 6 | | Tommy Gate 11864 - 36 Inch Replacement Slider with Pads-Self-Close (Steel Mainframe-AB) after 4/19/11* | 11864-TOMM | $269.33 | ||
| 6 | | Tommy Gate 11865 - 36 Inch Replacement Slider with Pads-Self-Close (Alum. Mainframe-AB)* | 11865-TOMM | $269.33 | ||
| 6 | | Tommy Gate 11872 - 36 Inch Replacement Slider with Pads-R-Fold (Steel Mainframe-AB) after 4/19/11* | 11872-TOMM | $268.20 | ||
| 6 | | Tommy Gate 11873 - 36 Inch Replacement Slider with Pads-R-Fold (Alum. Mainframe-AB)* | 11873-TOMM | $268.20 | ||
| 6 | | Tommy Gate 8628 - 44 Inch Replacement Slider with Pads-Left Self-Close (Steel Mainframe-BH) | 8628-TOMM | $313.43 | ||
| 6 | | Tommy Gate 8629 - 44 Inch Replacement Slider with Pads-Right Self-Close (Steel Mainframe-BH) | 8629-TOMM | $313.43 | ||
| 6 | | Tommy Gate 8654 - 44 Inch Replacement Slider with Pads-Left Self-Close (Alum. Mainframe-BH) | 8654-TOMM | $313.43 | ||
| 6 | | Tommy Gate 8655 - 44 Inch Replacement Slider with Pads-Right Self-Close (Alum. Mainframe-BH) | 8655-TOMM | $313.43 | ||
| 7 | | Tommy Gate 930 - Replacement Rail Safety Switch | 930-TOMM | $61.59 | ||
| 8 | | Tommy Gate 4149 - 13 Tooth Replacement Sprocket - Pin and Keeper=4 - AB=5 | 4149-TOMM | $75.14 | ||
| 8 | | Tommy Gate 4191 - 13 Tooth Replacement Sprocket - Pin and Keeper (All Aluminum) | 4191-TOMM | $89.63 | ||
| 10 | | Tommy Gate 928 - Replacement Red Light with Grommet | 928-TOMM | $36.39 | ||
| 11 | | Tommy Gate 926 - Replacement Clear Light with Grommet | 926-TOMM | $36.39 | ||
| 12 | | Tommy Gate 10199 - Replacement License Plate Light and Bracket (H1) | 10199-TOMM | $34.19 | ||
| 12 | | Tommy Gate 4036 - Replacement License Plate Light and Bracket (154c) | 4036-TOMM | $34.19 | ||
| 13 | | Tommy Gate 13744 - Replacement Steel Box Cover with Lights (73)(N) LED | 13744-TOMM | $664.38 | ||
| 13 | | Tommy Gate 13745 - Replacement Steel Box Cover with Lights (79)(N) LED | 13745-TOMM | $676.65 | ||
| 13 | | Tommy Gate 13746 - Replacement Steel Box Cover with Lights (85)(N) LED | 13746-TOMM | $709.95 | ||
| 13 | | Tommy Gate 13747 - Replacement Steel Box Cover with Lights (89)(N) LED | 13747-TOMM | $762.54 | ||
| 13 | | Tommy Gate 13748 - Replacement Steel Box Cover with Lights (95)(N) LED | 13748-TOMM | $801.11 | ||
| 13 | | Tommy Gate 4156 - Replacement Steel Box Cover with Lights (73SC) (N) | 4156-TOMM | $340.08 | ||
| 13 | | Tommy Gate 4157 - Replacement Steel Box Cover with Lights (79SC) (N) | 4157-TOMM | $355.86 | ||
| 13 | | Tommy Gate 4158 - Replacement Steel Box Cover with Lights (85SC) (N) | 4158-TOMM | $385.65 | ||
| 13 | | Tommy Gate 4159 - Replacement Steel Box Cover with Lights (89SC) (N) | 4159-TOMM | $441.75 | ||
| 13 | | Tommy Gate 4160 - Replacement Steel Box Cover with Lights (95SC) (N) | 4160-TOMM | $480.32 | ||
| 13 | | Tommy Gate 4245 - Replacement Aluminum Box Cover with Lights (89SC) (N) | 4245-TOMM | $687.17 | ||
| 13 | | Tommy Gate 4246 - Replacement Aluminum Box Cover with Lights (73SC) (N) | 4246-TOMM | $604.77 | ||
| 13 | | Tommy Gate 4247 - Replacement Aluminum Box Cover with Lights (79SC) (N) | 4247-TOMM | $632.82 | ||
| 13 | | Tommy Gate 4248 - Replacement Aluminum Box Cover with Lights (85SC) (N) | 4248-TOMM | $662.63 | ||
| 13 | | Tommy Gate 4249 - Replacement Aluminum Box Cover with Lights (95SC) (N) | 4249-TOMM | $716.97 | ||
| 14 | | Tommy Gate 1977 - Railgate Replacement Latch Lever | 1977-TOMM | $67.73 | ||
| 14 | | Tommy Gate 2005 - Aluminum Railgate Replacement Latch Lever | 2005-TOMM | $68.99 | ||
| 15 | | Tommy Gate 2006 - All Aluminum Railgate Replacement Latch Plate-Right | 2006-TOMM | $225.23 | ||
| 15 | | Tommy Gate 2007 - All Aluminum Railgate Replacement Latch Plate-Left | 2007-TOMM | $129.32 | ||
| 15 | | Tommy Gate 2033 - Replacement Steel Latch Plate-Right | 2033-TOMM | $201.60 | ||
| 15 | | Tommy Gate 2867 - Replacement Steel R-fold Latch Plate-Right | 2867-TOMM | $243.66 | ||
| 15 | | Tommy Gate 2868 - Replacement Steel R-fold Latch Plate-Left | 2868-TOMM | $148.65 | ||
| 15 | | Tommy Gate 2869 - All Aluminum R-fold Railgate Replacement Latch Plate-Right | 2869-TOMM | $270.90 | ||
| 15 | | Tommy Gate 2870 - All Aluminum R-fold Railgate Replacement Latch Plate-Left | 2870-TOMM | $176.40 | ||
| 15 | | Tommy Gate 925 - Replacement Steel Latch Plate-Left | 925-TOMM | $104.43 | ||
| 16 | | Tommy Gate 955 - Replacement Latch Knob with Stud | 955-TOMM | $9.45 | ||
| 17 | | Tommy Gate 967 - Replacement Raise Solenoid-3 Post | 967-TOMM | $85.68 | ||
| 18 | | Tommy Gate 6593 - Replacement Cloth Chain Cover 53 Inch | 6593-TOMM | $19.38 | ||
| 18 | | Tommy Gate 6596 - Replacement Cloth Chain Cover 38 Inch | 6596-TOMM | $19.38 | ||
| 18 | | Tommy Gate 6597 - Replacement Cloth Chain Cover 46 Inch | 6597-TOMM | $19.38 | ||
| 19 |  | Tommy Gate 987 - Replacement Fixed Control | 987-TOMM | $192.15 | ||
| 20 | | Tommy Gate 4290 - M319 Replacement Pump and Motor (2600psi) 3qt.(2000#TX) | 4290-TOMM | $767.03 | ||
| 20 | | Tommy Gate 4291 - M319 Replacement Pump and Motor (3200psi) 3qt.** 2000# Railgate (N) | 4291-TOMM | $767.03 | ||
| 20 | | Tommy Gate 4485- M319 Replacement Pump and Motor (2600psi) 2qt.** 1600# Railgate (73) (N) | 4485-TOMM | $767.03 | ||
| 20 | | Tommy Gate 4486 - M319 Replacement Pump and Motor (3200psi) 2qt.** 2000# Railgate (73) (N) | 4486-TOMM | $767.03 | ||
| 21 | | Tommy Gate 989 - Replacement Vent Plug | 989-TOMM | $6.30 | ||
| 23 | | Tommy Gate 4354 - Replacement Monarch Plastic Tank (2qt.)** 73 Railgate | 4354-TOMM | $95.76 | ||
| 23 | | Tommy Gate 4355 - Replacement Plastic Tank (3qt.)** | 4355-TOMM | $95.76 | ||
| 24 | | Tommy Gate 958 - Replacement 12V Motor (MOTOR ONLY) | 958-TOMM | $441.00 | ||
| 25 | | Tommy Gate 4708 - Replacement 4 Ga. 2 Wire Electric Cable with Lugs-33 ft. | 4708-TOMM | $193.73 | ||
| 26 | | Tommy Gate 992 - Replacement Copper Lug | 992-TOMM | $6.30 | ||
| 27 | | Tommy Gate 9757 - Railgate Replacement Cylinder (73) | 9757-TOMM | $615.83 | ||
| 27 |  | Tommy Gate 9760 - Replacement Railgate Cylinder (79-95) | 9760-TOMM | $615.83 | ||
| 28 | | Tommy Gate 8179 - Replacement Rail Cylinder Pin and Keeper (Alum) | 8179-TOMM | $52.46 | ||
| 28 | | Tommy Gate 8222 - Replacement Rail Cylinder Pin and Keeper | 8222-TOMM | $45.05 | ||
| 30 | | Tommy Gate 973 - Replacement Check Valve | 973-TOMM | $44.27 | ||
| 31 | | Tommy Gate 12966 - Replacement 9/16 Inch x 7/16 Inch Flow Control | 12966-TOMM | $75.60 | ||
| 31 | | Tommy Gate 917 - Replacement 3/8 Inch x9/16 Inch x90 Degree Steel Cylinder Elbow | 917-TOMM | $15.60 | ||
| 33 | | Tommy Gate 3221 - Cylinder Shaft with Sprockets Assembly (Rail) Includes: Cylinder Repair Kit | 3221-TOMM | $567.00 | ||
| 33 | | Tommy Gate 3287 - Cylinder Shaft with Sprockets Assembly (73 Rail) Includes: Cylinder Repair Kit | 3287-TOMM | $567.00 | ||
| 34 | | Tommy Gate 3257 - 2 Inch x 35 Inch Replacement Cylinder Barrel (Rail) Includes: Cylinder Repair Kit | 3257-TOMM | $442.58 | ||
| 34 | | Tommy Gate 3290 - 2 Inch x 29 Inch Replacement Cylinder Barrel (73 Rail) Includes: Cylinder Repair Kit | 3290-TOMM | $442.58 | ||
| 35 | | Tommy Gate 6834 - Replacement Cylinder Clamp (Rail) | 6834-TOMM | $12.29 | ||
| 35 | | Tommy Gate 6835 - Replacement Cylinder Clamp (All Aluminum Rail) | 6835-TOMM | $13.86 | ||
| 37 | | Tommy Gate 4188 - 19-Tooth Repair Sprocket with 3/4 Inch x 2 Inch Pin and Keeper | 4188-TOMM | $78.12 | ||
| 38 | | Tommy Gate 4189 - 25-Tooth Repair Sprocket with 3/4 Inch x 2 Inch Pin and Keeper | 4189-TOMM | $114.03 | ||
| 39 | | Tommy Gate 12609 - Replacement 1/4 Inch x 20 Inch Hydraulic Hose | 12609-TOMM | $69.30 | ||
| 39 | | Tommy Gate 12610 - Replacement 1/4 Inch x 15 Inch Hydraulic Hose with Adapters (73) | 12610-TOMM | $69.30 | ||
| 40 | | Tommy Gate 12611 - Replacement 90 Degree Elbow 9/16 x 7/16 | 12611-TOMM | $15.60 | ||
| 40 | | Tommy Gate 944 - Replacement 90 Degree Elbow (Male 9/16 O-ring Boss x Female 1/4 NPTF) | 944-TOMM | $23.00 | ||
| 41 | | Tommy Gate 8020 - 173 Pitch Replacement Roller Chain Bed-Height Passenger's Side | 8020-TOMM | $229.95 | ||
| 41 | | Tommy Gate 8021 - 281 Pitch Replacement Roller Chain Above-Bed Passenger's Side | 8021-TOMM | $348.08 | ||
| 42 | | Tommy Gate 8030 - Replacement Roller Chain Attachment Fitting | 8030-TOMM | $38.28 | ||
| 43 | | Tommy Gate 8022 - 219 Pitch Replacement Roller Chain Bed-Height Driver's Side | 8022-TOMM | $274.05 | ||
| 43 | | Tommy Gate 8023 - 325 Pitch Replacement Roller Chain Above-Bed Driver's Side | 8023-TOMM | $393.75 | ||
| 43 | | Tommy Gate 8035 - 229 Pitch Replacement Roller Chain Bed-Height Driver's Side (95) | 8035-TOMM | $288.23 | ||
| 43 | | Tommy Gate 8044 - 335 Pitch Replacement Roller Chain Above Bed Driver's Side(95 and 89TX) | 8044-TOMM | $398.48 | ||
| 44 | | Tommy Gate 7947 - Roller Chain Adjustment Screw - Clevis and Pin | 7947-TOMM | $46.94 | ||
| 47 | | Tommy Gate 998 - Replacement 150 Amp Manual Reset Circuit Breaker | 998-TOMM | $89.63 | ||
| 48 | | Tommy Gate 4161 - Replacement Alum. AB Sprocket Assembly | 4161-TOMM | $89.63 | ||
| 48 | | Tommy Gate 4162 - Replacement Steel AB Sprocket Assembly | 4162-TOMM | $89.63 | ||
| 49 | | Tommy Gate 4196 - Replacement Alum BH Outrail Cap | 4196-TOMM | $33.24 | ||
| 49 | | Tommy Gate 4197 - Replacement Steel BH Outrail Cap | 4197-TOMM | $30.24 | ||
| 51 | | Tommy Gate 6433 - 88 Inch Replacement Hinge Tube (85) | 6433-TOMM | $129.78 | ||
| 51 | | Tommy Gate 6434 - 92 Inch Replacement Hinge Tube (89) | 6434-TOMM | $129.78 | ||
| 51 | | Tommy Gate 6435 - 82-1/2 Inch Inch Replacement Hinge Tube (79) | 6435-TOMM | $129.78 | ||
| 51 | | Tommy Gate 6436 - 98 Inch Replacement Hinge Tube (95) | 6436-TOMM | $129.78 | ||
| 51 | | Tommy Gate 6437 - 76-1/2 Inch Replacement Hinge Tube (73) | 6437-TOMM | $129.78 | ||
| 52 | | Tommy Gate 7995 - Railgate Replacement Self-Close Rod and Linkage (95) | 7995-TOMM | $122.85 | ||
| 52 | | Tommy Gate 8058 - Railgate Replacement Self-Close Linkage Only (Excludes Rod) | 8058-TOMM | $73.25 | ||
| 52 | | Tommy Gate 8059 - Railgate Replacement Self-Close Rod and Linkage (89) | 8059-TOMM | $122.85 | ||
| 52 | | Tommy Gate 8060 - Railgate Replacement Self-Close Rod and Linkage (85) | 8060-TOMM | $122.85 | ||
| 52 | | Tommy Gate 8061 - Railgate Replacement Self-Close Rod and Linkage (79) | 8061-TOMM | $122.85 | ||
| 52 | | Tommy Gate 8071 - Aluminum Railgate Replacement Self-Close Rod and Linkage (85) | 8071-TOMM | $134.67 | ||
| 52 | | Tommy Gate 8072 - Aluminum Railgate Replacement Self-Close Rod and Linkage (89) | 8072-TOMM | $134.67 | ||
| 52 | | Tommy Gate 8092 - Railgate Replacement Self-Close Rod and Linkage (73) | 8092-TOMM | $122.85 | ||
| 52 | | Tommy Gate 8093 - Aluminum Railgate Replacement Self-Close Rod and Linkage (73) | 8093-TOMM | $134.67 | ||
| 52 | | Tommy Gate 8094 - Aluminum Railgate Replacement Self-Close Rod and Linkage (79) | 8094-TOMM | $134.67 | ||
| 52 | | Tommy Gate 8095 - Aluminum Railgate Replacement Self-Close Rod and Linkage (95) | 8095-TOMM | $134.67 | ||
| 53 | | Tommy Gate 8128 - Replacement All Aluminum Self-Close Arm Kit- Left (N) | 8128-TOMM | $134.82 | ||
| 53 | | Tommy Gate 8137 - Replacement Steel Platform Self-Close Arm Kit - Left (N) | 8137-TOMM | $78.12 | ||
| 53 | | Tommy Gate 8140 - Replacement Aluminum Platform Self-Close Arm Kit- Left (N) | 8140-TOMM | $92.61 | ||
| 54 | | Tommy Gate 8136 - Replacement Steel Platform Self-Close Arm Kit - Right (N) | 8136-TOMM | $78.12 | ||
| 54 | | Tommy Gate 8139 - Replacement Aluminum Platform Self-Close Arm Kit- Right (N) | 8139-TOMM | $92.61 | ||
| 55 | | Tommy Gate 8138 - Replacement Self-Close 2 Inch Roller Kit | 8138-TOMM | $21.42 | ||
| 56 | | Tommy Gate 8067 - Repair Self-Close Arm Bushing Kit-Steel Platform | 8067-TOMM | $19.22 | ||
| 56 | | Tommy Gate 8068 - Repair Self-Close Arm Bushing Kit-Aluminum Platform | 8068-TOMM | $28.98 | ||

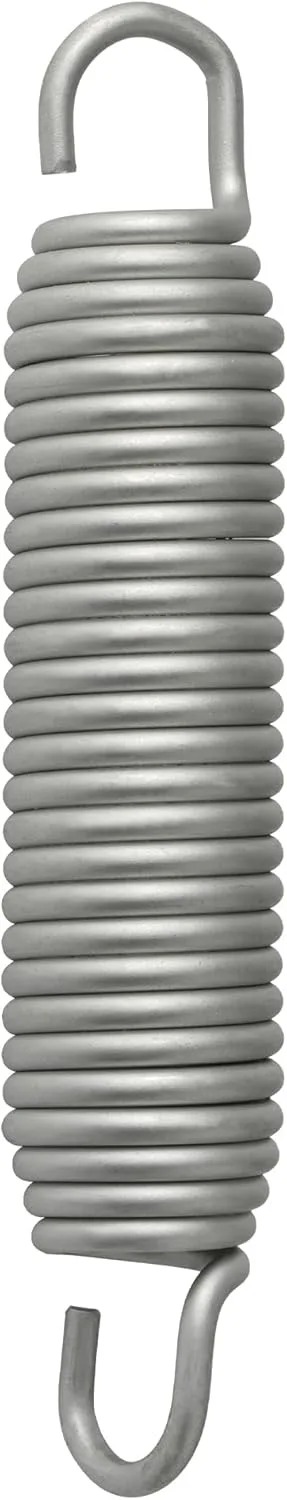

| 59 | | Tommy Gate 922 - Replacement Extension Spring Rail (0.142 x 1.125 x 5.5 Inches) | 922-TOMM | $13.55 | ||
| 65 | | Tommy Gate 8129 - (A73SC) Replacement Safety Trip Bar 65-1/2'' (N) | 8129-TOMM | $119.87 | ||
| 65 | | Tommy Gate 8130 - (A79SC) Replacement Safety Trip Bar 71-1/2'' (N) | 8130-TOMM | $119.87 | ||
| 65 | | Tommy Gate 8131 - (A85SC) Replacement Safety Trip Bar 77-1/2'' (N) | 8131-TOMM | $119.87 | ||
| 65 | | Tommy Gate 8132 - (A89SC) Replacement Safety Trip Bar 81-1/2'' (N) | 8132-TOMM | $119.87 | ||
| 65 | | Tommy Gate 8133 - (A95SC) Replacement Safety Trip Bar 87-1/2'' (N) | 8133-TOMM | $119.87 | ||
| 65 | | Tommy Gate 8169 - (73SC) Replacement Safety Trip Bar 65-1/2'' (N) | 8169-TOMM | $71.36 | ||
| 65 | | Tommy Gate 8170 - (79SC) Replacement Safety Trip Bar 71-1/2'' (N) | 8170-TOMM | $71.36 | ||
| 65 | | Tommy Gate 8171 - (85) Replacement Safety Trip Bar (77-1/2'') | 8171-TOMM | $71.36 | ||
| 65 | | Tommy Gate 8172 - (89) Replacement Safety Trip Bar (81-1/2'') | 8172-TOMM | $71.36 | ||
| 65 | | Tommy Gate 8173 - (95) Replacement Safety Trip Bar (87-1/2") | 8173-TOMM | $71.36 | ||
| 66 | | Tommy Gate 9645 - Release Solenoid External Assembly with Connector | 9645-TOMM | $146.01 | ||
| 67 | | Tommy Gate 1110 - 2 Inch Cylinder Repair Kit (Rail) | 1110-TOMM | $234.68 | ||
| 68 | | Tommy Gate 920 - Replacement Steel Platform Triangle Deadman | 920-TOMM | $6.62 | ||
| 68 | | Tommy Gate 921 - Replacement Alum Platform Triangle Deadman | 921-TOMM | $9.45 | ||
| 70 | | Tommy Gate 914 - Replacement Locking Pin and Padlock with Keys (Cantilever) | 914-TOMM | $23.63 | ||
| 82 | | Tommy Gate 6466 - Replacement R-Fold Hinge Kit | 6466-TOMM | $97.34 | ||
| 83 | | Tommy Gate 2992 - Replacement R-Fold Latch Kit | 2992-TOMM | $53.24 | ||
| 84 | | Tommy Gate 2510 - Replacement Rail Platform Stop (TA) | 2510-TOMM | $60.33 |
![Tommy Gate Standard Railgate Series Diagram (1 OF 3) [Flatbed / Stake / Van]](https://iteparts.com/wp-content/uploads/2024/11/tg-srgs-fbsv-1.jpg)
Tommy Gate Railgate Series Diagrams
Tommy Gate Standard Railgate Series Diagram (1 OF 3) [Flatbed / Stake / Van]
LIFTGATE PARTS ORDERED WITHOUT PROVIDING YOUR LIFTGATE MODEL/SERIAL NUMBERS ARE NOT ELIGIBLE FOR RETURN.
PLEASE NOTE THAT THE PRICES BELOW ARE FOR A SINGLE ITEM. THE QTY COLUMN ON THE DIAGRAM SHOWS THE TOTAL NUMBER YOU WILL NEED FOR A COMPLETE ASSEMBLY.
The Tommy Gate Railgate Series consists of expertly-engineered lifts that allow for higher weight capacities and deeper platform loading areas. Standard model railgates employ a padded-slider system and are offered in both steel and aluminum frames.
For use with Flatbeds, Stake Bodies and Vans.
