V2 Series Internal Van Body Lift

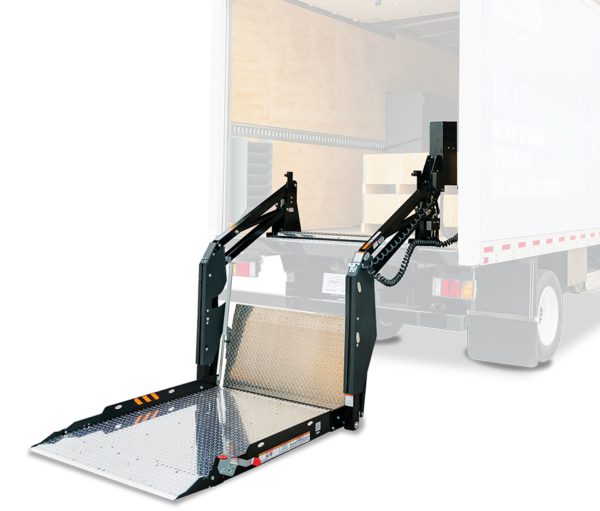

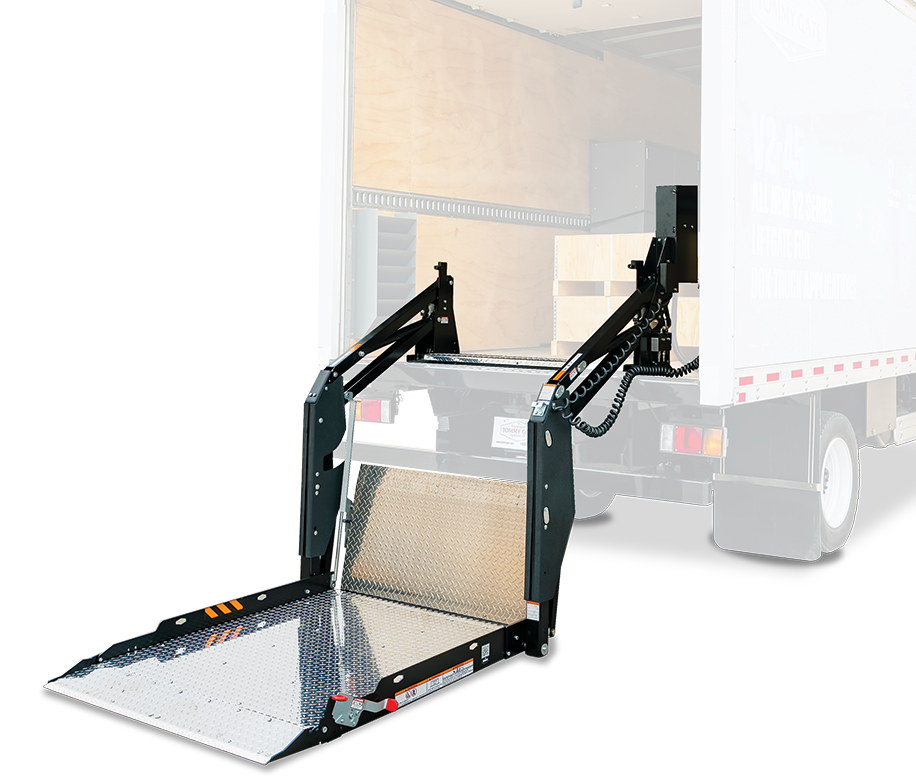

The latest in liftgate technology, the V2 Series by Tommy Gate provides the maximum platform loading area while occupying the smallest possible space when stored in the rear of the van body. The V2 combines sleek, modern engineering with a hands-free platform that opens and closes, a built-in cart retention ramp, and a 1,100-pound lifting capacity.
Liftgate Capacity
1100 lbs.
Hydraulic System
Dual-Cylinder
Van Lift Location
Internally-Mounted
V2 Series: V2-45 Features
- Platform Auto Open & Close
- Dual-Function Control
- Retention Ramp/ Taper
- Aluminum Treadplate Bridge
- Low-Profile Pump & Motor Box
Dual-Function Control
Pendant control with raise/lower toggle and secondary platform fold function.
Flat-Loading Taper & Retention Ramp
The platform rests flat at ground level, minimizing load angle. The retention ramp easily locks into place to secure wheel-based cargo.
V2 Series – Model 56
| Model | Capacity | Load Area | Taper | Travel | Weight | Applications | Spec |
|---|---|---|---|---|---|---|---|
| V2-56-1145 FA49 | 1100 | 47 x 49 | 9 | 45 | 480 | Flat Floor-Mount Bracket |
- FA49 Models must have the 9” retention ramp/taper engaged when storing the platform on lower roof models to avoid the ramp contacting the truck frame.
- Unladen bed height cannot exceed 45” travel.
- Provided brackets are intended to be building blocks to mount a V2 liftgate to a flat floor body. Modifications to these parts and/or additional parts may be required.
- The V2-45 Liftgate cannot be installed on Cargo Vans. Please see the V2 Series for Cargo Vans for compatible liftgates.
IMPORTANT
- There are numerous truck configurations and body styles. Check the clearance of the liftgate with any bumpers or additional equipment on the back of the truck.
- V2 Series liftgates reduce the door opening height by 2” (from the metal floor).
Applications & Brackets – Flatbed and Van → V2 Series: V2-45
| Code | Body Style |
|---|---|
| Flat Floor-Mount Bracket | For >58″ WIDE BODIES – 102″ WIDE BODIES |
- V2 Series liftgates need at least a 57.5-inch body-width or larger opening to be installed.
See detailed dimensions for more information. - Provided brackets are intended to be building blocks to mount a V2 liftgate to a flat floor body. Modification to these parts and/or additional parts may be required.
- The V2-45 Liftgate cannot be installed on Cargo Vans. Please see the V2 Series for Cargo Vans for compatible liftgates.
