| ID | Image | Title | SKU | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|
| 1 |  | Thieman 3435-001 - Platform Weld 5326 With Bushing | 3435-001-THIE | $597.95 | ||
| 1 | | Thieman 3435-002 - Platform Weld 5626 With Bushing | 3435-002-THIE | $597.95 | ||
| 1 | | Thieman 3435-003 - Platform Weld 6026 With Bushing | 3435-003-THIE | $597.95 | ||
| 1 | | Thieman 3440-004 - TT15 Two-Piece Steel Deckplate Platform 5326 | 3440-004-THIE | $717.55 | ||
| 2 | | Thieman 5504-011 - Platform Bushing | 5504-011-THIE | $9.65 | ||
| 3 | | Thieman 5056 - Hinge Pin | 5056-THIE | $9.56 | ||
| 4 | | Thieman 8107-011 - Flat Washer (0.62) | 8107-011-THIE | $0.76 | ||
| 5 | | Thieman 5781017 - Retainer Ring Hinge Pin | 5781017-THIE | $1.50 | ||
| 6 | | Thieman 31357-001 - Locking Cable Assembly For 53 Inch Platform | 31357-001-THIE | $53.39 | ||
| 6 | | Thieman 31357-002 - Locking Cable Assembly For 56 Inch Platform | 31357-002-THIE | $63.39 | ||
| 6 | | Thieman 31357-003 - Locking Cable Assembly For 60 Inch Platform | 31357-003-THIE | $53.39 | ||
| 7 | | Thieman 5101160 - Latch Spring | 5101160-THIE | $5.66 | ||
| 8 | | Thieman 8120396 - Flat Washer (0.50) | 8120396-THIE | $0.44 | ||
| 9 | | Thieman 8121222 - Cotter Pin (0.094 x 0.75 Inch) | 8121222-THIE | $0.44 |
TT15ET Liftgate Diagrams

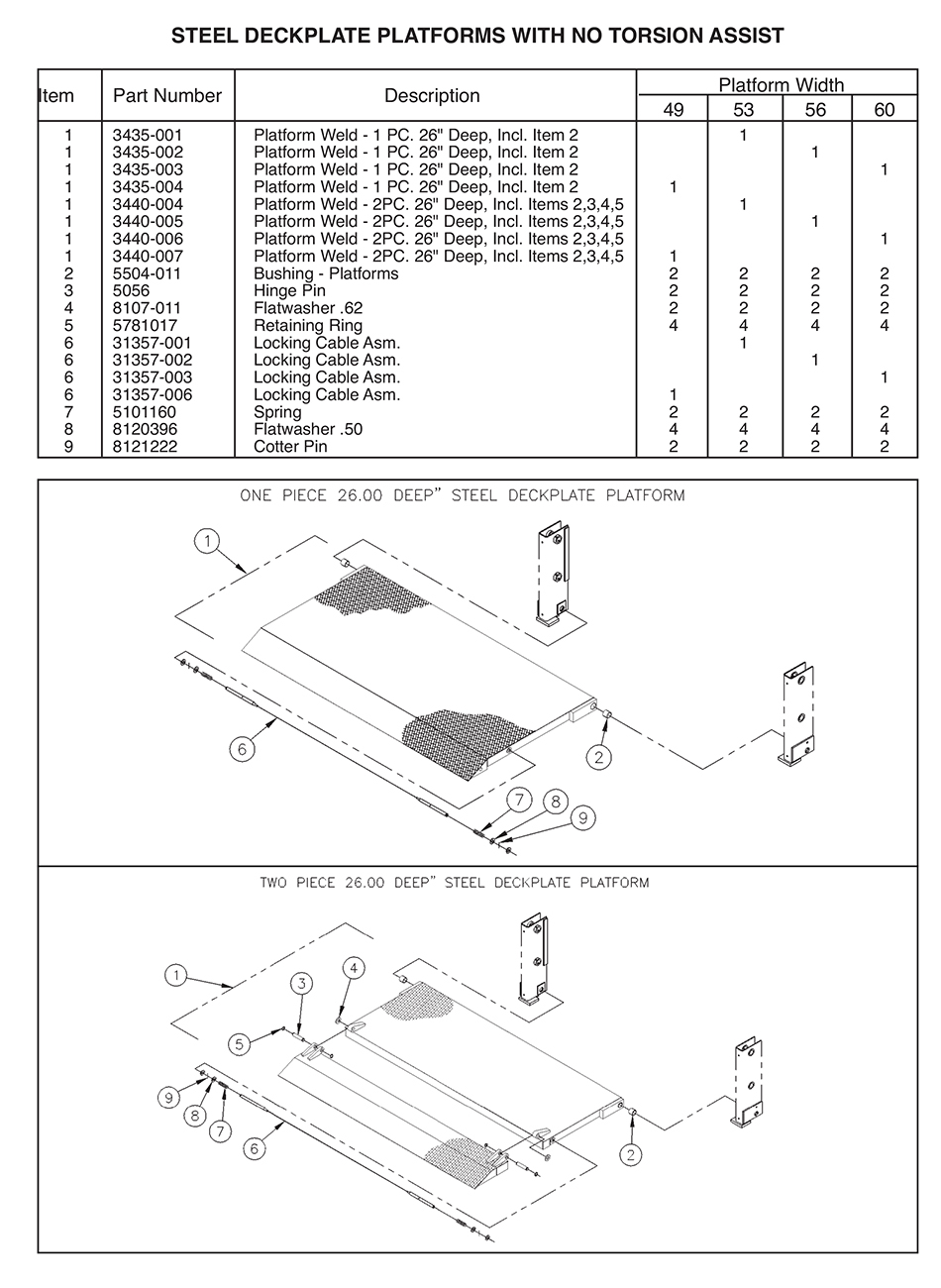

TT15ET Steel Deckplate Platforms (No Torsion Assist) Diagram
LIFTGATE PARTS ORDERED WITHOUT PROVIDING YOUR LIFTGATE MODEL/SERIAL NUMBERS ARE NOT ELIGIBLE FOR RETURN.
PLEASE NOTE THAT THE PRICES BELOW ARE FOR A SINGLE ITEM. THE QTY COLUMN ON THE DIAGRAM SHOWS THE TOTAL NUMBER YOU WILL NEED FOR A COMPLETE ASSEMBLY.
