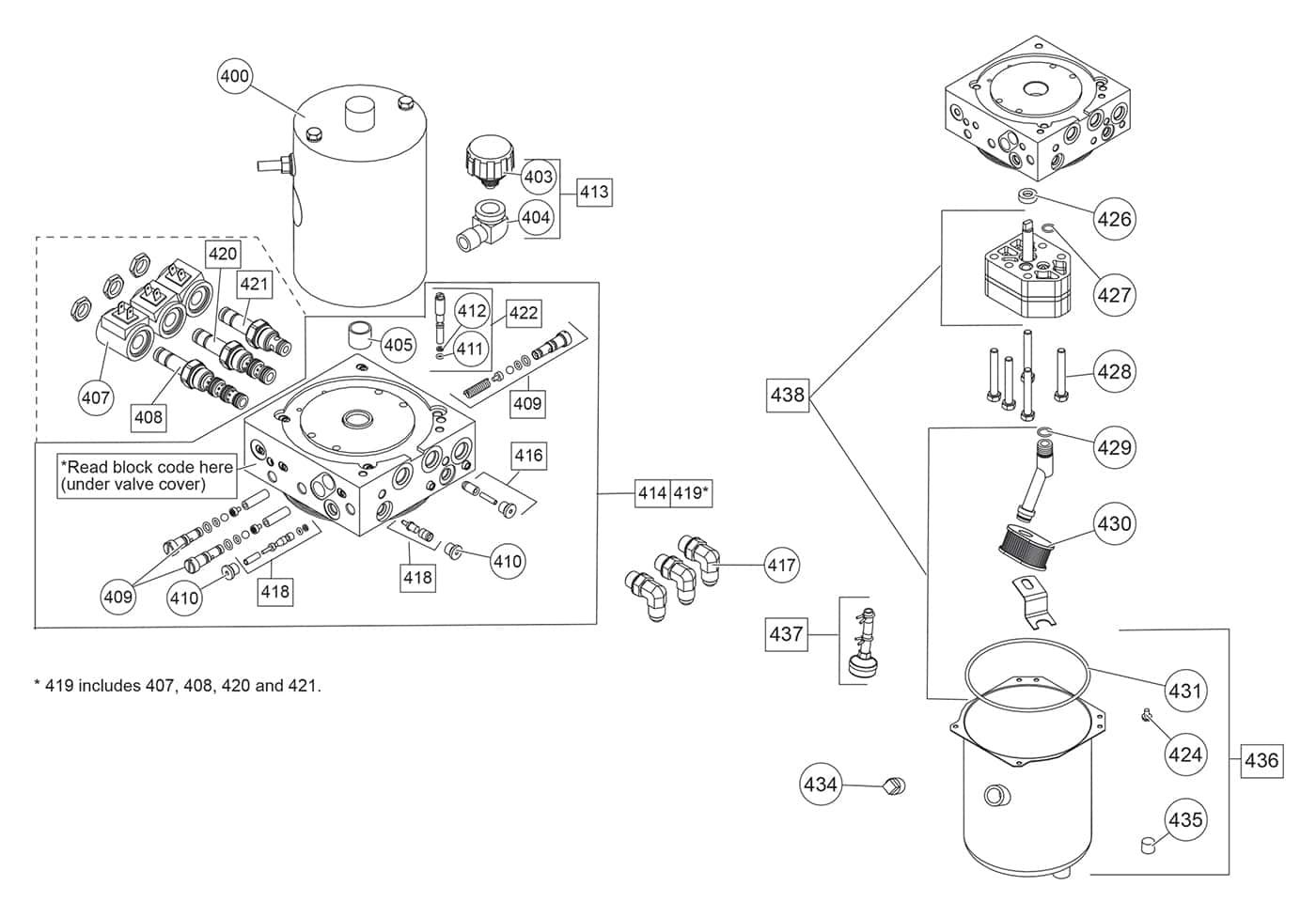

XBLADE Hydraulic Unit Diagram

XBLADE Hydraulic Unit Diagram

SKU: XB-HU-DG Category: Brand:
ID Image Title SKU Price Quantity Add to Cart
0Fisher 49258-2 - 2-Way Valve Seal KitFisher 49258-2 - 2-Way Valve Seal Kit49258-2-FSHR$24.28
0Fisher 49259-2 - 3-Way AND 4-Way Valve Seal KitFisher 49259-2 - 3-Way AND 4-Way Valve Seal Kit49259-2-FSHR$54.87
0Fisher 73897 - MagnetFisher 73897 - Magnet73897-FSHR$5.68
400Fisher 21500K-1 - IA Motor Assembly (4-1/2)Fisher 21500K-1 - IA Motor Assembly (4-1/2)21500K-1-FSHR$263.31
403Fisher 21727-2 - Gray Pressure Control BreatherFisher 21727-2 - Gray Pressure Control Breather21727-2-FSHR$46.43
404Fisher 21726 - 90 Degree Street Elbow (3/8 M NPTF / 3/8 F NPTF) SAE 140239Fisher 21726 - 90 Degree Street Elbow (3/8 M NPTF / 3/8 F NPTF) SAE 14023921726-FSHR$11.51
405SLEEVE BEARING and SHAFT SEAL KITSLEEVE BEARING and SHAFT SEAL KIT64596-1-FSHR$16.83
407Fisher 7639K-2 - Coil With Spade TerminalsFisher 7639K-2 - Coil With Spade Terminals7639K-2-FSHR$29.50
408Fisher 7637K-1 - 4-Way Valve With NutFisher 7637K-1 - 4-Way Valve With Nut7637K-1-FSHR$133.82
410Fisher 92960 - Hex Socket Plug -3 M ORBFisher 92960 - Hex Socket Plug -3 M ORB92960-FSHR$7.48
411Fisher 25622 - O-Ring 006Fisher 25622 - O-Ring 00625622-FSHR$4.38
412Fisher 56315 - Back-Up Ring - 006 - Parbak SplitFisher 56315 - Back-Up Ring - 006 - Parbak Split56315-FSHR$1.61
413Fisher 22344K - 90 Degree Street Elbow With Breather CPFisher 22344K - 90 Degree Street Elbow With Breather CP22344K-FSHR$53.48
416Fisher 56507 - Bypass Check Valve KitFisher 56507 - Bypass Check Valve Kit56507-FSHR$10.91
417Fisher 56725 - 90 Degree Elbow -6 M O-Ring/M JICFisher 56725 - 90 Degree Elbow -6 M O-Ring/M JIC56725-FSHR$9.98
418Fisher 7630K - Poppet Check Valve KitFisher 7630K - Poppet Check Valve Kit7630K-FSHR$49.47
420Fisher 66608K-1 - 3-Way Valve With NutFisher 66608K-1 - 3-Way Valve With Nut66608K-1-FSHR$179.38
421Fisher 7634K-2 - 2-Way Valve With NutFisher 7634K-2 - 2-Way Valve With Nut7634K-2-FSHR$85.90
422Fisher 56662 - Quill Assembly (Partial Thread)Fisher 56662 - Quill Assembly (Partial Thread)56662-FSHR$37.31
424Fisher 66607 - Hex Head Machine Screw Slotted Washer (10-24 x 5/16)Fisher 66607 - Hex Head Machine Screw Slotted Washer (10-24 x 5/16)66607-FSHR$1.52
426Fisher 66515 - Pump Shaft SealFisher 66515 - Pump Shaft Seal66515-FSHR$8.87
427Fisher 56274 - O-Ring - 013Fisher 56274 - O-Ring - 01356274-FSHR$2.41
428Fisher 90073 - G5 Hex Head Cap Screw (5/16-18 X 2-1/4 Inches)Fisher 90073 - G5 Hex Head Cap Screw (5/16-18 X 2-1/4 Inches)90073-FSHR$2.31
429Fisher 56416 - O-Ring - 014Fisher 56416 - O-Ring - 01456416-FSHR$0.57
431Fisher 66519 - O-Ring - 2-250Fisher 66519 - O-Ring - 2-25066519-FSHR$10.45
434Fisher 92079 - 3/8 NPTF SQ Plug With Vibraseal (516 Sealant)Fisher 92079 - 3/8 NPTF SQ Plug With Vibraseal (516 Sealant)92079-FSHR$3.36
435Fisher 92095 - Hex Socket 1/4 NPTF Plug With Thread SealantFisher 92095 - Hex Socket 1/4 NPTF Plug With Thread Sealant92095-FSHR$2.76
436Fisher 21830 - Reservoir KitFisher 21830 - Reservoir Kit21830-FSHR$157.54
437Fisher 66405 - Return Screen AssemblyFisher 66405 - Return Screen Assembly66405-FSHR$22.94
438Fisher 21501K-1 - IA Hydraulic Pump KitFisher 21501K-1 - IA Hydraulic Pump Kit21501K-1-FSHR$495.76
