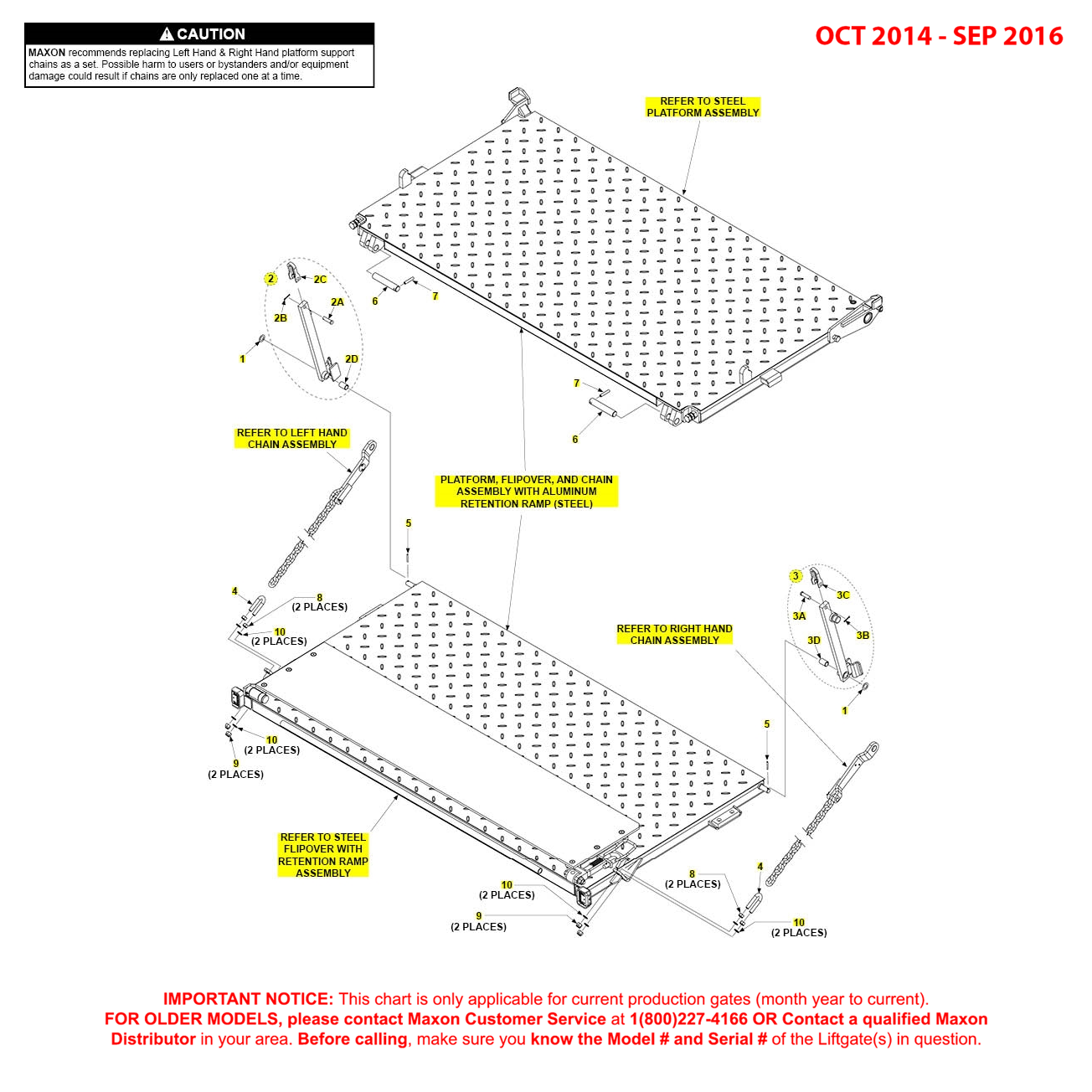

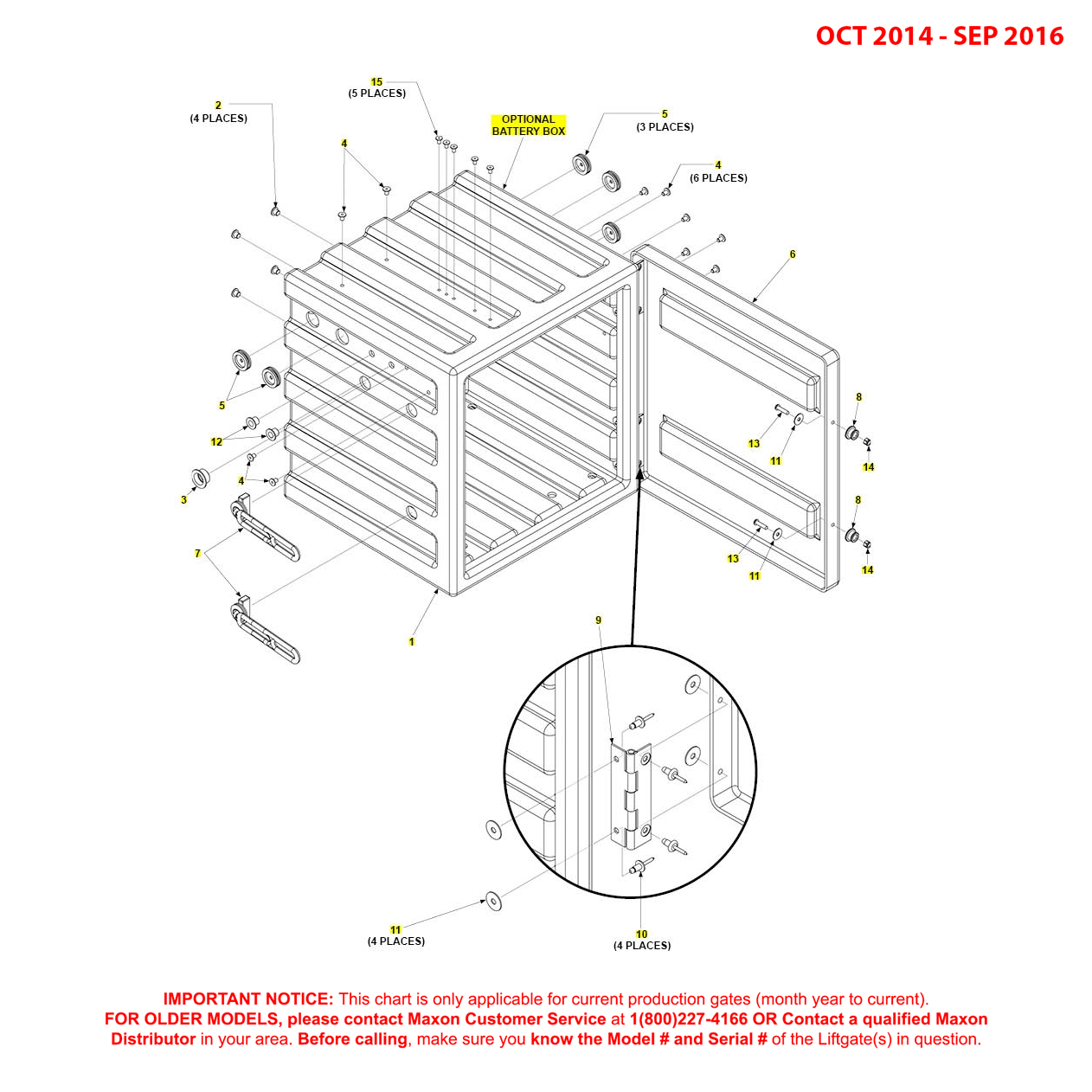

BMR (Jan 2016 - Sep 2016) Diagrams

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

1. LOCATE YOUR SERIAL PLATE on your Liftgate.
2. LOOK FOR THE 'SERIAL #' FIELD and identify the first four digits.
3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
