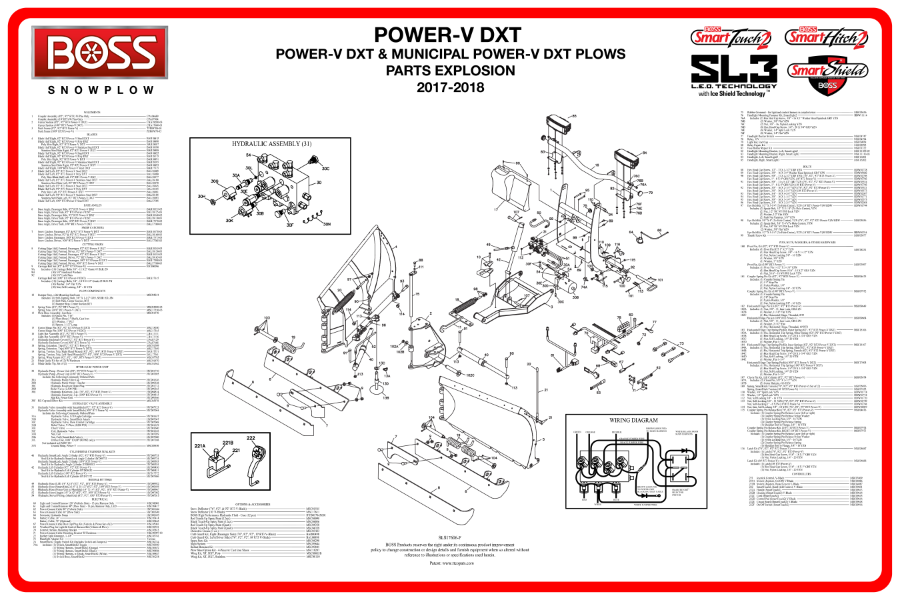

BOSS Power-V DXT Diagrams

Diagram 1:

  • Weldments (1-3)
  • Blades (4 & 5)
  • Base Angles (6)
  • Snow Catchers (7)
  • Cutting Edges (8 & 9)
  • Plow Components (10-22)

Diagram 2:

  • Hydraulic Power Unit (30-30F)
  • Hydraulic Valve Assembly (31-31N)
  • Cylinders & Cylinder Seal Kits (40-42)
  • Hoses & Fittings (49-54)

Diagram 3:

  • Electrical (60-85)

Diagram 4:

  • Bolts (88-99)
  • Pins, Nuts, Washers & Other Hardware (100-116)

Diagram 5:

  • Controllers (221-222F)
