VMAC Diesel-Driven Air Compressors

OVERVIEW


The VMAC diesel-driven air compressor is the best choice for customers who need the performance of a truck engine-driven air compressor, without running the truck.

Engine idle reduction is important to decrease emissions, save fuel and maintenance costs, and extend truck and equipment life. Another way VMAC reduces engine idling is with the most intelligent control system available, automatically shutting the compressor engines off when air isn’t needed, and restarting the compressor engine when air is needed.

Applications – Common jobs that use the compressor system:

  • Mobile heavy duty mechanics
  • Mobile tire service technicians
  • 24/7 roadside repair technicians
  • Remote job sites (when skid-mounted)

Commonly used tools:

  • 1” impact wrenches
  • 60 lb jackhammers
  • Backfill tampers
  • Vertical/horizontal grinders
  • Sanders
  • OTR tire inflation

COMPONENTS

OPTIONAL COLD CLIMATE MODEL AVAILABLE

Includes battery jump-start connections for vehicle battery tie-in; 110V AC Cold Climate Heaters

KUBOTA DIESEL D902 ENGINE

3-cylinder, naturally aspirated,3,600 RPM, Tier 4 Final

BATTERY

Included Group 51 12V, 460 CCA, 575 CA

OPTIONAL FUEL TANK

7-Gallons (26.56L)

AIR/OIL SEPARATOR TANK

Separates compressor oil from compressed air

VMAC AIR COMPRESSOR

Oil-injected rotary screw; direct-driven; 60 CFM @ 100 psi; 100% Duty Cycle; Up to 150 psi

DIGITAL CONTROL BOX

Controls system operation and stored settings

DIGITAL DISPLAY BOX LCD

LCD for on/off controls, observing system status, and adjusting parameters; mounts where needed on the truck

BENEFITS

60 CFM. 100% of the time.

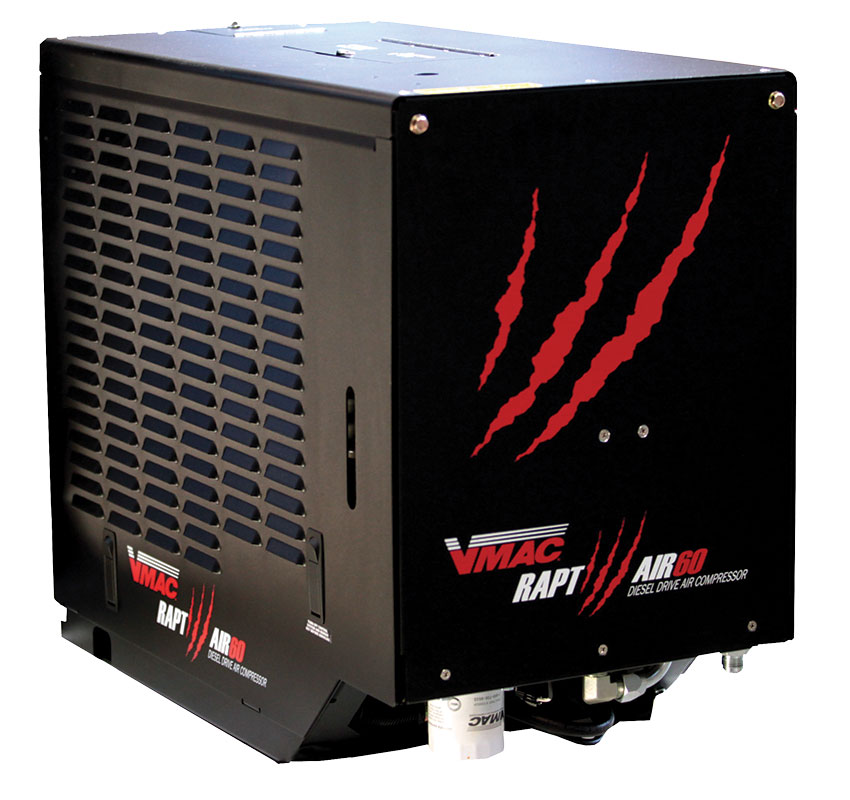

The VMAC D60 diesel-powered air compressor includes a patented direct-driven rotary screw air compressor designed to produce 60 CFM, 100% of the time, so operators don’t have to wait for their air compressor to fill up an air receiver tank. This maximizes tool performance and eliminates downtime.

Decrease truck GVW by up to 385 lbs.

Weighing just 415 lbs, the VMAC D60 diesel-driven air compressor is up to 385 lbs lighter than comparable air compressors. This is because of VMAC designs systems with lightweight materials and integrated components. Choosing a lightweight air compressor means you’ll be able to add more tools and equipment to your truck, carry more materials, or take advantage of better fuel economy.

Reduce truck idling.

What makes the VMAC D60 diesel air compressor so intelligent is the digital control system. The control system automatically idles the Kubota diesel engine up and down and turns it on and off with air demand. This means fewer emissions and less noise on the job site. And since the truck engine can remain off while using the air compressor, fleet managers can save on truck maintenance and fuel costs. Another important benefit of the advanced control system is built-in cold and hot climate protection, keeping the D60 running in most extreme climates.

Save truck maintenance and fuel costs.

VMAC’s powerful diesel-driven air compressors reduce truck maintenance and fuel use by allowing you to turn your truck engine off while on the job site.  The control system not only automatically idles the compressor’s engine up/down with air demand, but it also turns the engine off/on with air demand.  This function, along with the lightweight design of the diesel-driven air compressor helps improves fuel economy while driving and on the job site.

Easy to use and service.

VMAC diesel air compressors are easy to use, access and service.  Systems can be integrated into the truck or can remain self-contained so they can be easily transferred from truck to truck.  Digital controls and LCD allow easy adjustment of system settings and provide service reminders to operators.

Reliable engine and compressor.

VMAC diesel-driven air compressors work in extreme climates across North America with built-in cold/hot climate protection and an optional factory-installed cold climate kit.  Systems are powered by Kubota, the most reliable and common compact diesel engine on the market.   Patented direct-driven rotary screw air compressors are manufactured by VMAC, and include a VMAC Lifetime Warranty.
