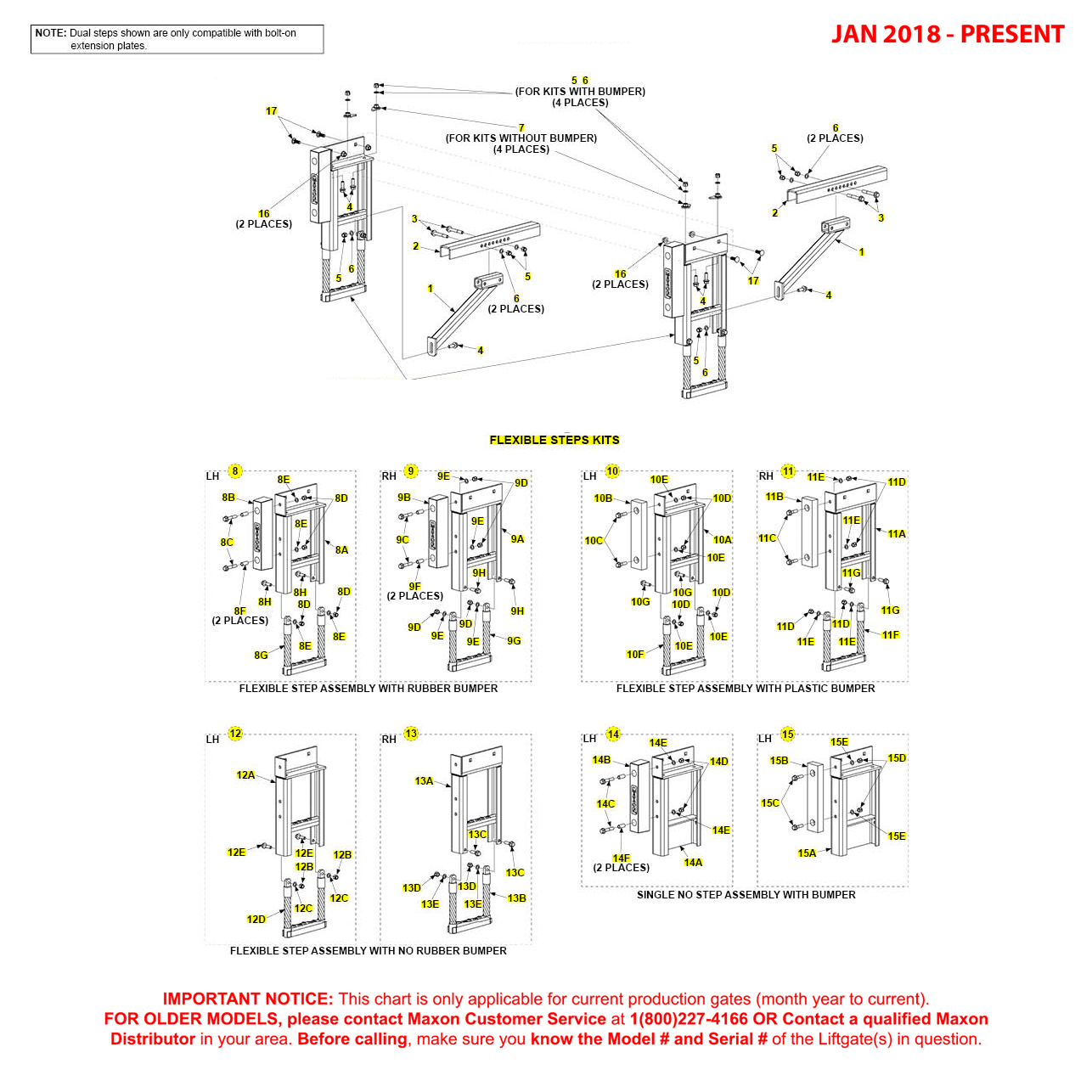

Maxon TE-25DC (Jan 2018 - Present) Flexible Step Kits Diagram

Maxon TE-25DC (Jan 2018 - Present) Flexible Step Kits Diagram

Hover or tap to zoom

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE 'SERIAL #' FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!

  • TE25DC-JAN18-PRES-FSK-DG
  • Category: Liftgate Diagrams
  • Brand: Maxon Lift Corp.
Read Reviews
Add to Cart Below

Options

SKU:  Reference # Description Price Quantity
288705-21-MAXO REFMaxon 288705-21 - Kit Dual FLX Steps 14 Inch Rubber Bumper $1,407.77
288705-21G-MAXO REFMaxon 288705-21G - Kit Dual FLX Steps 14 Inch Rubber Bumper G $1,476.22
288705-22-MAXO REFMaxon 288705-22 - Kit Dual FLX Steps 13.5 Inch PE Bumper $1,417.07
288705-22G-MAXO REFMaxon 288705-22G - Kit Dual FLX Steps 13.5 Inch PE Bumper G $1,485.51
288705-25G-MAXO REFMaxon 288705-25G - Kit Dual FLX Steps No Bumpers G $1,409.46
288705-26G-MAXO REFMaxon 288705-26G - Kit Dual FLX Steps SS NO/STPS NO Bumpers G $1,290.90
288688-01-MAXO 1Maxon 288688-01 - Support Weldment - Steps $112.13
288688-01G-MAXO 1Maxon 288688-01G - Steps Support Weldment - GAL $113.37
288419-01-MAXO 2Maxon 288419-01 - Step Mount Channel $76.25
901024-10-MAXO 3Maxon 901024-10 - Bolt Hex Frame 0.5-13 X 3.5 Inch LG $2.77
901024-5-MAXO 4Maxon 901024-5 - Bolt Hex Frame 0.5-13 X 1.50 Inch LG $1.57
283700-01-MAXO 7Maxon 283700-01 - Tear Drop Weldment $6.02
288690-21-MAXO 8Maxon 288690-21 - Dual Step Assembly Flex LH 14 Inch Rubber Bumper $632.16
288690-21G-MAXO 8Maxon 288690-21G - Dual Step Assembly Flex LH 14 Inch Rubber Bumper G $659.04
901010-MAXO 8DMaxon 901010 - Nylon Lock Nut 1/2-13 ZC $0.54
902000-14-MAXO 8EMaxon 902000-14 - Flat Washer .500 X .063 THK $0.99
905344-02-MAXO 9BMaxon 905344-02 - Rubber Bumper BLK 2.5 X 3 X 14 Inch $30.42
901024-9-MAXO 9CMaxon 901024-9 - Bolt Hex Frame 0.5-13 X 2.75 Inch LG $3.76
901010-MAXO 9DMaxon 901010 - Nylon Lock Nut 1/2-13 ZC $0.54
902000-14-MAXO 9EMaxon 902000-14 - Flat Washer .500 X .063 THK $0.99
092036-10-MAXO 9FMaxon 092036-10 - RD Mech Tube - 0.625OD X 0.058W X 1.44L Inch $1.58
288680-01-MAXO 9GMaxon 288680-01 - Step Weldment Flexible Lower $347.07
901024-2-MAXO 9HMaxon 901024-2 - Bolt Hex Frame - 0.5-13 X 1.75 Inch LG $1.87
288690-22-MAXO 9Maxon 288690-22 - Dual Step Assembly Flexible RH 14 Inch Rubber Bumper $626.11
288690-22G-MAXO 9Maxon 288690-22G - Dual Step Assembly Flex RH 14 Inch Rubber Bumper G $659.04
288690-23-MAXO 10Maxon 288690-23 - Dual Step Assembly Flex LH 13.5 Inch PE BMPR $628.84
288690-23G-MAXO 10Maxon 288690-23G - Dual Step Assembly Flex LH 13.5 Inch PE BMPR G $664.20
288675-21-MAXO 10AMaxon 288675-21 - Dual Step Weldment Flex LH $216.39
288675-21G-MAXO 10AMaxon 288675-21G - Dual Step Weldment Flex LH G $244.97
901010-MAXO 10DMaxon 901010 - Nylon Lock Nut 1/2-13 ZC $0.54
902000-14-MAXO 10EMaxon 902000-14 - Flat Washer .500 X .063 THK $0.99
288680-01-MAXO 10FMaxon 288680-01 - Step Weldment Flexible Lower $347.07
901024-2-MAXO 10GMaxon 901024-2 - Bolt Hex Frame - 0.5-13 X 1.75 Inch LG $1.87
288690-24-MAXO 11Maxon 288690-24 - Dual Step Assembly Flex RH 13.5 Inch PE BMPR $628.84
288690-24G-MAXO 11Maxon 288690-24G - Dual Step Assembly Flex RH 13.5 Inch PE BMPR G $664.20
288675-22-MAXO 11AMaxon 288675-22 - Dual Step Weldment Flex RH $216.39
288675-22G-MAXO 11AMaxon 288675-22G - Dual Step Weldment Flex RH G $244.97
905386-01-MAXO 11BMaxon 905386-01 - Bumper Plastic 1.5 X 2.85 X 13.5 Inch LG $36.86
901024-7-MAXO 11CMaxon 901024-7 - Bolt Hex Frame 0.5-13 X 2.00 Inch LG $1.86
901010-MAXO 11DMaxon 901010 - Nylon Lock Nut 1/2-13 ZC $0.54
902000-14-MAXO 11EMaxon 902000-14 - Flat Washer .500 X .063 THK $0.99
288680-01-MAXO 11FMaxon 288680-01 - Step Weldment Flexible Lower $347.07
901024-2-MAXO 11GMaxon 901024-2 - Bolt Hex Frame - 0.5-13 X 1.75 Inch LG $1.87
288690-27G-MAXO 12Maxon 288690-27G - Dual Step Assembly Flex LH No Bumper G $612.14
288675-21-MAXO 12AMaxon 288675-21 - Dual Step Weldment Flex LH $216.39
288675-21G-MAXO 12AMaxon 288675-21G - Dual Step Weldment Flex LH G $244.97
901010-MAXO 12BMaxon 901010 - Nylon Lock Nut 1/2-13 ZC $0.54
902000-14-MAXO 12CMaxon 902000-14 - Flat Washer .500 X .063 THK $0.99
288680-01-MAXO 12DMaxon 288680-01 - Step Weldment Flexible Lower $347.07
901024-2-MAXO 12EMaxon 901024-2 - Bolt Hex Frame - 0.5-13 X 1.75 Inch LG $1.87
288675-21-MAXO 12AMaxon 288675-21 - Dual Step Weldment Flex LH $216.39
288675-21G-MAXO 12AMaxon 288675-21G - Dual Step Weldment Flex LH G $244.97
288680-01-MAXO 13BMaxon 288680-01 - Step Weldment Flexible Lower $347.07
901024-2-MAXO 13CMaxon 901024-2 - Bolt Hex Frame - 0.5-13 X 1.75 Inch LG $1.87
288675-22-MAXO 13AMaxon 288675-22 - Dual Step Weldment Flex RH $216.39
288675-22G-MAXO 13AMaxon 288675-22G - Dual Step Weldment Flex RH G $244.97
288690-28G-MAXO 13Maxon 288690-28G - Dual Step Assembly Flex RH No Bumper G $429.58
288675-22-MAXO 13AMaxon 288675-22 - Dual Step Weldment Flex RH $216.39
288675-22G-MAXO 13AMaxon 288675-22G - Dual Step Weldment Flex RH G $244.97
288680-01-MAXO 13BMaxon 288680-01 - Step Weldment Flexible Lower $347.07
901024-2-MAXO 13CMaxon 901024-2 - Bolt Hex Frame - 0.5-13 X 1.75 Inch LG $1.87
901010-MAXO 13DMaxon 901010 - Nylon Lock Nut 1/2-13 ZC $0.54
902000-14-MAXO 13EMaxon 902000-14 - Flat Washer .500 X .063 THK $0.99
905344-02-MAXO 14BMaxon 905344-02 - Rubber Bumper BLK 2.5 X 3 X 14 Inch $30.42
901024-9-MAXO 14CMaxon 901024-9 - Bolt Hex Frame 0.5-13 X 2.75 Inch LG $3.76
901010-MAXO 14DMaxon 901010 - Nylon Lock Nut 1/2-13 ZC $0.54
902000-14-MAXO 14EMaxon 902000-14 - Flat Washer .500 X .063 THK $0.99
092036-10-MAXO 14FMaxon 092036-10 - RD Mech Tube - 0.625OD X 0.058W X 1.44L Inch $1.58
092036-10-MAXO 14FMaxon 092036-10 - RD Mech Tube - 0.625OD X 0.058W X 1.44L Inch $1.58
905344-02-MAXO 14BMaxon 905344-02 - Rubber Bumper BLK 2.5 X 3 X 14 Inch $30.42
901024-9-MAXO 14CMaxon 901024-9 - Bolt Hex Frame 0.5-13 X 2.75 Inch LG $3.76
901010-MAXO 15DMaxon 901010 - Nylon Lock Nut 1/2-13 ZC $0.54
902000-14-MAXO 15EMaxon 902000-14 - Flat Washer .500 X .063 THK $0.99
905386-01-MAXO 15BMaxon 905386-01 - Bumper Plastic 1.5 X 2.85 X 13.5 Inch LG $36.86
901024-7-MAXO 15CMaxon 901024-7 - Bolt Hex Frame 0.5-13 X 2.00 Inch LG $1.86
905386-01-MAXO 15BMaxon 905386-01 - Bumper Plastic 1.5 X 2.85 X 13.5 Inch LG $36.86
901024-7-MAXO 15CMaxon 901024-7 - Bolt Hex Frame 0.5-13 X 2.00 Inch LG $1.86
901010-MAXO 15DMaxon 901010 - Nylon Lock Nut 1/2-13 ZC $0.54
902000-14-MAXO 15EMaxon 902000-14 - Flat Washer .500 X .063 THK $0.99
901023-MAXO 16Maxon 901023 - Flange Lock Nut $1.31
900820-01-MAXO 17Maxon 900820-01 - Square Neck Carriage Bolt - 1/2 Inch-13 $1.58
