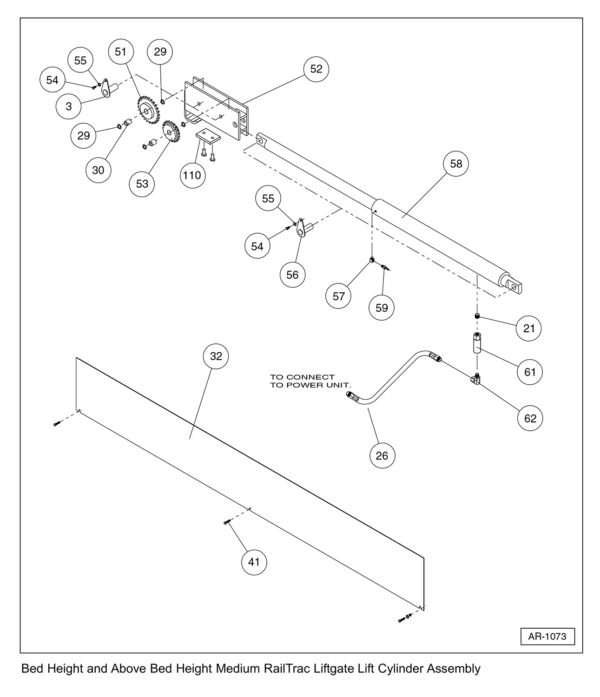

Anthony AR / HCR Lift Cylinder Assembly Diagram

Anthony AR / HCR Lift Cylinder Assembly Diagram

SKU: AR-HCR-LCA-DG Category:
ID Image Title SKU Price Quantity Add to Cart
3Anthony Liftgates LogoAnthony AR-18-312 - Sprocket Pin AssemblyAR-18-312-ANT$16.43
3Anthony Liftgates LogoAnthony AR-18-WS-16 - Sprocket Pin AssemblyAR-18-WS-16-ANT$9.05
21Anthony Liftgates LogoAnthony AR-18-150 - Nipple 3/8 X 2-1/2AR-18-150-ANT$6.08
26Anthony Liftgates LogoAnthony 1763 - Pressure Hose Lift 90 And 94 Inch Models1763-ANT$56.77
26Anthony Liftgates LogoAnthony A-130122 - Pressure Hose Lift 90 And 94 Inch ModelsA-130122-ANT$62.44
26Anthony Liftgates LogoAnthony A-130123 - High-Pressure Hydraulic Hose Assembly 3/8 Inch x 36 LongA-130123-ANT$55.66
26Anthony Liftgates LogoAnthony A-130124 - Pressure Hose Lift 100 Inch ModelA-130124-ANT$49.48
30Anthony Liftgates LogoAnthony AR-18-315 - Sprocket BearingAR-18-315-ANT$15.40
32Anthony Liftgates LogoAnthony AR-18-144 - 78 Inch Model Housing CoverAR-18-144-ANT$994.40
32Anthony Liftgates LogoAnthony AR-18-377 - 100 Inch Model Housing CoverAR-18-377-ANT$207.24
41Anthony Liftgates LogoAnthony 2145 - Bolt 5/16-18 NC Whiz-Lock2145-ANT$1.23
52Anthony Liftgates LogoAnthony AR-18-WS-7 - Drive Sprocket Plate WeldmentAR-18-WS-7-ANT$196.44
53Anthony Liftgates LogoAnthony AR-18-211 - Sheave PulleyAR-18-211-ANT$182.17
53Anthony Liftgates LogoAnthony AR-18-308 - 14-Tooth SprocketAR-18-308-ANT$45.25
53Anthony Liftgates LogoAnthony AR-18-309 - 21-Tooth SprocketAR-18-309-ANT$51.55
54Anthony Liftgates LogoAnthony AR-18-166 - Cap Screw 1/4 Inch - 28 x 3/8 InchAR-18-166-ANT$1.52
55Anthony Liftgates LogoAnthony S-016001 - 1/4 In LockwasherS-016001-ANT$1.39
56Anthony Liftgates LogoAnthony AR-18-WS-15 - Cylinder Pin AssemblyAR-18-WS-15-ANT$24.88
58Anthony Liftgates LogoAnthony A-130120 - Hydraulic Cylinder SAEA-130120-ANT$400.62
58Anthony Liftgates LogoAnthony A-130121 - Hydraulic Cylinder SAEA-130121-ANT$760.97
58Anthony Liftgates LogoAnthony A-150344 - Hydraulic CylinderA-150344-ANT$12.67
59Anthony Liftgates LogoAnthony ATU-124 - Barbed Hose Fitting 06MORB to 1/4 Inch HoseATU-124-ANT$9.06
61Anthony Liftgates LogoAnthony A-130102 - Control Flow Valve 2500 3000A-130102-ANT$81.61
62Anthony Liftgates LogoAnthony ATU-179 - Swivel Elbow 3/8 NPTATU-179-ANT$9.46
110Anthony Liftgates LogoAnthony AR-18-229 - Wear Pad With RivetsAR-18-229-ANT$13.85

PLEASE provide your Anthony Liftgate’s Serial Number and Model Number in the Order Comments at Checkout to ensure the correct parts are ordered. Anthony Liftgate parts ordered without providing a Serial Number or Model Number are subject to Restrictions if a Return is required. See TERMS OF SALE for more information.
