| ID | Image | Title | SKU | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|
| 1 |  | Anthony A-176548 - H-Frame Standard Weldment | A-176548-ANT | $7,356.14 | ||
| 1 | | Anthony A-176549 - H-Frame Weldment | A-176549-ANT | $7,421.03 | ||
| 2 | | Anthony A-176402 - Column Weldment Curbside | A-176402-ANT | $1,639.39 | ||
| 3 | | Anthony A-176403 - Column Weldment Streetside | A-176403-ANT | $2,303.28 | ||
| 5 | | A-176434 - Cylinder Mount Weldment | A-176434-ANT | $82.79 | ||
| 8 | | A-176499 - Handle Latch Weldment Curbside | A-176499-ANT | $60.20 | ||
| 11 | | Anthony A-130181 - Lift Cylinder Assembly | A-130181-ANT | $1,091.66 | ||
| 15 | | A-176493 - Latch Block | A-176493-ANT | $52.50 | ||
| 17 | | Anthony A-176490 - Wire Guard Channel | A-176490-ANT | $374.28 | ||
| 18 | | A-176824 - Light Bracket | A-176824-ANT | $142.71 | ||
| 18 | | Anthony A-176826 - Light Bracket Bolt-On | A-176826-ANT | $588.32 | ||
| 18 | | A-176828 - Light Bracket Bolt-On | A-176828-ANT | $176.91 | ||
| 31 | | A-130221 - Hydraulic Hose Assembly - 3/8 Inch Female | A-130221-ANT | $131.10 | ||
| 32 | | A-130222 - Hydraulic Hose Assembly - 3/8 Inch Female | A-130222-ANT | $104.34 | ||
| 34 | | A-130196 - High-Pressure Hydraulic Hose Assembly | A-130196-ANT | $104.34 | ||
| 38 | | Anthony A-130198 - Fitting Straight Adapter Male | A-130198-ANT | $11.58 | ||
| 44 | | Anthony A-130197 - Fitting 90 Deg Elbow Male Extended Leg | A-130197-ANT | $14.21 | ||
| 47 | | Anthony A-130244 - Fitting Male | A-130244-ANT | $7.94 | ||
| 48 | | Anthony A-130015 - Fitting Tee 1/4 Inch Hose Bard | A-130015-ANT | $3.36 | ||
| 52 | | Anthony A-133160 - Switch Assembly Power-Down | A-133160-ANT | $927.98 | ||
| 53 | | Anthony A-133102 - Switch And Wire Harness Gravity-Down | A-133102-ANT | $285.57 | ||
| 54 | | Anthony A-176700 - Control Box Column Weldment | A-176700-ANT | $668.33 | ||
| 54 | | A-176793 - Control Box Weldment | A-176793-ANT | $151.18 | ||
| 55 | | Anthony A-176703 - Switch Mounting Panel | A-176703-ANT | $14.34 | ||
| 56 | | A-176780 - Control Box Weldment | A-176780-ANT | $85.25 | ||
| 57 | | AR-18-235 - Switch Mounting Panel Power-Down | AR-18-235-ANT | $50.77 | ||
| 71 | | A-133020 - Red Taillight - Stop and Turn Indicator Light With Grommet Rectangular | A-133020-ANT | $22.39 | ||
| 71 | | A-133064 - Light Red Taillight - Stop And Turn Indicator With Grommet Round LED | A-133064-ANT | $79.89 | ||
| 74 | | A-133019 - Truck Taillight Wire Harness Curbside | A-133019-ANT | $66.30 | ||
| 74 | | A-133024 - Wire Harness Taillight Curbside | A-133024-ANT | $78.58 | ||
| 82 | | A-176813 - Upper Lift Cylinder Pin | A-176813-ANT | $39.27 | ||
| 97 | | 473 - Snap Ring 3/4 Inch Shaft | 473-ANT | $2.04 | ||
| 102 | | A-132019 - Bolt 1/2-13 NC x 4 Inch Long GR 8 | A-132019-ANT | $1.73 | ||
| 103 | | Anthony 3139 - Hex Nut 1/2-13 NC | 3139-ANT | $2.81 | ||
| 105 | | Anthony A-150065 - Flat Washer 1/2 Inch SAE | A-150065-ANT | $0.62 | ||
| 106 | | Anthony 1691 - 1/2 Inch Helical Lockwasher | 1691-ANT | $2.43 | ||
| 107 | | Anthony A-170260 - Stainless Steel Hose Clamp | A-170260-ANT | $4.57 | ||
| 114 | | A-132018 - Set Screw 3/8-16 x 1 Inch Long | A-132018-ANT | $1.84 | ||
| 116 | | P-162 - Hex Nut 3/8-16 | P-162-ANT | $1.34 | ||
| 119 | | S-117001 | S-117001-ANT | $1.16 | ||
| 120 | | 2145 | 2145-ANT | $1.23 | ||
| 121 | | Anthony 870 - Bolt 5/16-18 x 1-1/4 Long | 870-ANT | $3.60 | ||
| 122 | | 869 | 869-ANT | $1.12 | ||
| 127 | | 2110 | 2110-ANT | $1.24 | ||
| 128 | | Anthony 6611 - Lockwasher 5/16 Inch | 6611-ANT | $0.73 | ||
| 139 | | AR-18-69 - Cotter Pin 3/16 X 1-3/4 Long | AR-18-69-ANT | $1.41 | ||
| 140 | | 5420 | 5420-ANT | $1.21 | ||
| 143 | | Anthony A-176497 - Spring Latch Extension | A-176497-ANT | $12.47 | ||
| 418 | | A-176811 - Latch Guard | A-176811-ANT | $22.91 | ||
| 419 | | A-132099 - Threaded Insert 5/16-18 NC | A-132099-ANT | $2.06 |
MRT-MGRT-GBRT-DG

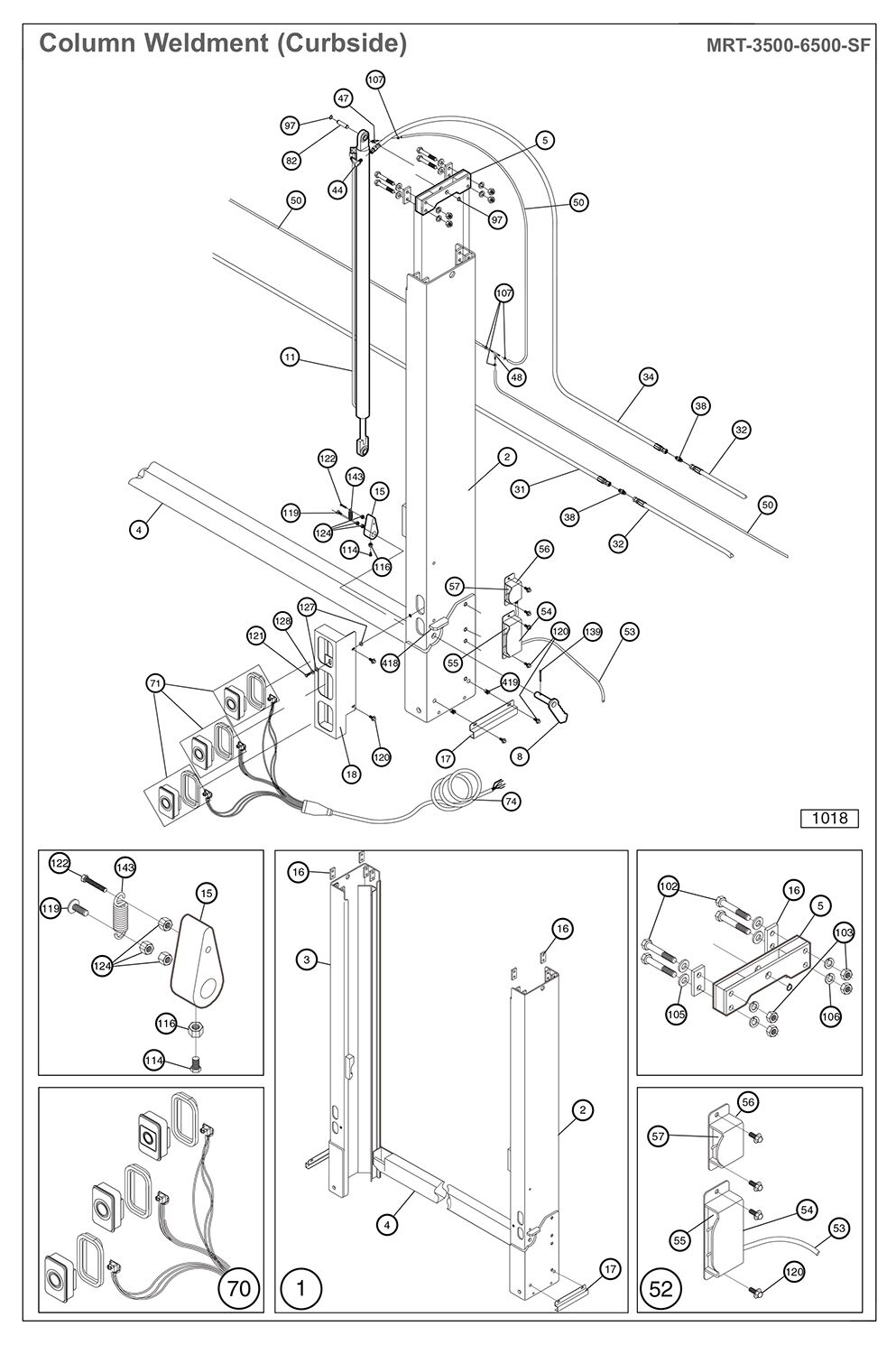

Anthony MRT-3500-6500-SF Curbside Column Weldment Diagram
PLEASE provide your Anthony Liftgate’s Serial Number and Model Number in the Order Comments at Checkout to ensure the correct parts are ordered. Anthony Liftgate parts ordered without providing a Serial Number or Model Number are subject to Restrictions if a Return is required. See TERMS OF SALE for more information.
