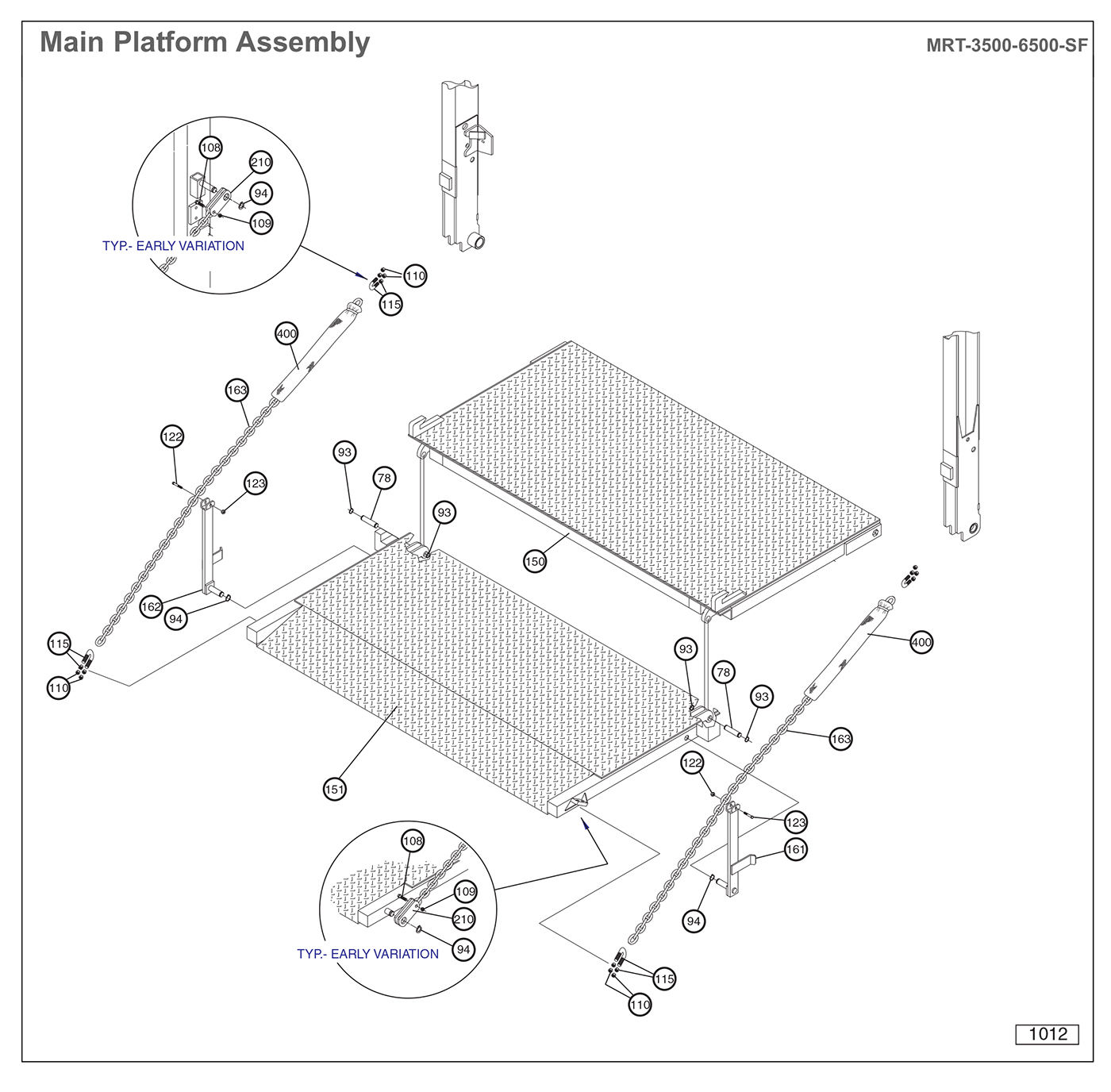

Anthony MRT-3500-6500-SF Main Platform Assembly Diagram

Anthony MRT-3500-6500-SF Main Platform Assembly Diagram

SKU: MRT-MPFA6500-DG Category:
ID Image Title SKU Price Quantity Add to Cart
78Anthony Liftgates LogoAnthony A-171200 - Platform Pin 1-1/4 Inch DiameterA-171200-ANT$33.97
93Anthony Liftgates LogoAnthony A-146840 - 1-1/4 Inch Retaining RingA-146840-ANT$4.22
94Anthony Liftgates LogoAnthony A-150060 - 1-Inch Retaining RingA-150060-ANT$4.34
108Anthony Liftgates LogoAnthony A-171249 - Bolt 3/8-24 NF 1-1/2 Long GR8A-171249-ANT$1.29
109Anthony Liftgates LogoAnthony 2184 - Locknut 3/8-24 NF2184-ANT$0.67
122Anthony Liftgates LogoAnthony 869 - Bolt 5/16-18 NC x 2 Long869-ANT$1.12
123Anthony Liftgates LogoAnthony 862 - Locknut Center-Locking 5/16-18 NC862-ANT$1.12
150Anthony Liftgates LogoAnthony A-176308 - Main Platform WeldmentA-176308-ANT$1,619.86
150Anthony Liftgates LogoAnthony A-176310 - Main Platform WeldmentA-176310-ANT$1,707.53
150Anthony Liftgates LogoAnthony A-176437 - Main Platform WeldmentA-176437-ANT$1,795.40
150Anthony Liftgates LogoAnthony A-176528 - Main Platform Weldment 42 D X 86 WA-176528-ANT$2,934.57
150Anthony Liftgates LogoAnthony A-176689 - Main Platform Weldment 36 D X 80 WA-176689-ANT$1,726.54
150Anthony Liftgates LogoAnthony A-176690 - Main Platform Weldment 36 D X 86 WA-176690-ANT$1,775.80
151Anthony Liftgates LogoAnthony A-176529 - Flip-Over Platform WeldmentA-176529-ANT$1,717.64
151Anthony Liftgates LogoAnthony A-176538 - Flip-Over Platform WeldmentA-176538-ANT$2,022.13
151Anthony Liftgates LogoAnthony A-176542 - Flip-Over Platform WeldmentA-176542-ANT$2,071.00
151Anthony Liftgates LogoAnthony A-176545 - Flip-Over Platform WeldmentA-176545-ANT$3,268.19
161Anthony Liftgates LogoAnthony A-176503 - Curbside Closer Arm WeldmentA-176503-ANT$628.50
161Anthony Liftgates LogoAnthony A-176523 - Closer Arm Weldment CurbsideA-176523-ANT$125.27
162Anthony Liftgates LogoAnthony A-176502 - Streetside Closer Arm Weldment (Use With All Other Folding Platforms)A-176502-ANT$587.40
162Anthony Liftgates LogoAnthony A-176522 - Closer Arm Weldment StreetsideA-176522-ANT$596.31
163Anthony Liftgates LogoAnthony A-176509 - Chain Platform SupportA-176509-ANT$125.92
163Anthony Liftgates LogoAnthony A-176631 - Chain Platform SupportA-176631-ANT$113.41
210Anthony Liftgates LogoAnthony A-176075 - Shackle Chain Lug PlateA-176075-ANT$21.43
400Anthony Liftgates LogoAnthony A-176194 - Chain Guard SleeveA-176194-ANT$5.87

PLEASE provide your Anthony Liftgate’s Serial Number and Model Number in the Order Comments at Checkout to ensure the correct parts are ordered. Anthony Liftgate parts ordered without providing a Serial Number or Model Number are subject to Restrictions if a Return is required. See TERMS OF SALE for more information.
