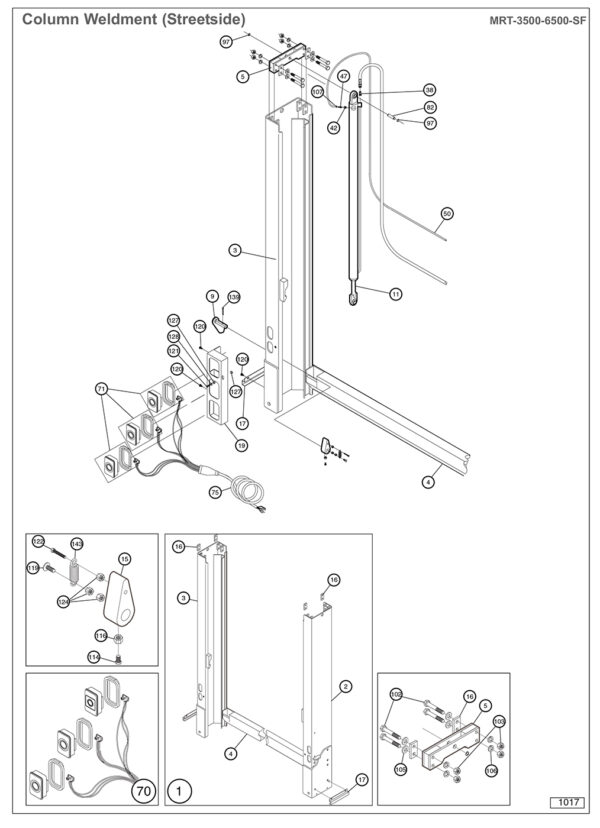

Anthony MRT-3500-6500-SF Streetside Column Weldment Diagram

Anthony MRT-3500-6500-SF Streetside Column Weldment Diagram

SKU: MRT-CWS6500-DG Category:
ID Image Title SKU Price Quantity Add to Cart
1Anthony Liftgates LogoAnthony A-176548 - H-Frame Standard WeldmentA-176548-ANT$7,356.14
1Anthony Liftgates LogoAnthony A-176549 - H-Frame WeldmentA-176549-ANT$7,421.03
2Anthony Liftgates LogoAnthony A-176402 - Column Weldment CurbsideA-176402-ANT$1,639.39
3Anthony Liftgates LogoAnthony A-176403 - Column Weldment StreetsideA-176403-ANT$2,303.28
5Anthony Liftgates LogoAnthony A-176434 - Cylinder Mount WeldmentA-176434-ANT$82.79
9Anthony Liftgates LogoAnthony A-176500 - Handle Latch Weldment StreetsideA-176500-ANT$57.23
11Anthony Liftgates LogoAnthony A-130181 - Lift Cylinder AssemblyA-130181-ANT$1,091.66
15Anthony Liftgates LogoAnthony A-176493 - Latch BlockA-176493-ANT$52.50
17Anthony Liftgates LogoAnthony A-176490 - Wire Guard ChannelA-176490-ANT$374.28
19Anthony Liftgates LogoAnthony A-176825 - Light BracketA-176825-ANT$98.58
19Anthony Liftgates LogoAnthony A-176827 - Light Bracket Bolt-OnA-176827-ANT$534.01
19Anthony Liftgates LogoAnthony A-176829 - Light Bracket Bolt-OnA-176829-ANT$176.91
38Anthony Liftgates LogoAnthony A-130198 - Fitting Straight Adapter MaleA-130198-ANT$11.58
42Anthony Liftgates LogoAnthony A-130193 - Fitting 90 Deg Elbow MaleA-130193-ANT$18.27
47Anthony Liftgates LogoAnthony A-130244 - Fitting MaleA-130244-ANT$7.94
71Anthony Liftgates LogoAnthony A-133020 - Red Taillight - Stop and Turn Indicator Light With Grommet RectangularA-133020-ANT$22.39
71Anthony Liftgates LogoAnthony A-133064 - Light Red Taillight - Stop And Turn Indicator With Grommet Round LEDA-133064-ANT$79.89
75Anthony Liftgates LogoAnthony A-133018 - Truck Taillight Wire Harness StreetsideA-133018-ANT$66.30
75Anthony Liftgates LogoAnthony A-133023 - Wire Harness Taillight Street sideA-133023-ANT$78.58
82Anthony Liftgates LogoAnthony A-176813 - Upper Lift Cylinder PinA-176813-ANT$39.27
97Anthony Liftgates LogoAnthony 473 - Snap Ring 3/4 Inch Shaft473-ANT$2.04
102Anthony Liftgates LogoAnthony A-132019 - Bolt 1/2-13 NC x 4 Inch Long GR 8A-132019-ANT$1.73
103Anthony Liftgates LogoAnthony 3139 - Hex Nut 1/2-13 NC3139-ANT$2.81
105Anthony Liftgates LogoAnthony A-150065 - Flat Washer 1/2 Inch SAEA-150065-ANT$0.62
106Anthony Liftgates LogoAnthony 1691 - 1/2 Inch Helical Lockwasher1691-ANT$2.43
107Anthony Liftgates LogoAnthony A-170260 - Stainless Steel Hose ClampA-170260-ANT$4.57
114Anthony Liftgates LogoAnthony A-132018 - Set Screw 3/8-16 x 1 Inch LongA-132018-ANT$1.84
116Anthony Liftgates LogoAnthony P-162 - Hex Nut 3/8-16P-162-ANT$1.34
119Anthony Liftgates LogoAnthony S-117001 - Bolt Button Allen HeadS-117001-ANT$1.16
120Anthony Liftgates LogoAnthony 2145 - Bolt 5/16-18 NC Whiz-Lock2145-ANT$1.23
121Anthony Liftgates LogoAnthony 870 - Bolt 5/16-18 x 1-1/4 Long870-ANT$3.60
122Anthony Liftgates LogoAnthony 869 - Bolt 5/16-18 NC x 2 Long869-ANT$1.12
127Anthony Liftgates LogoAnthony 2110 - Flat Washer 5/16 Inch2110-ANT$1.24
128Anthony Liftgates LogoAnthony 6611 - Lockwasher 5/16 Inch6611-ANT$0.73
139Anthony Liftgates LogoAnthony AR-18-69 - Cotter Pin 3/16 X 1-3/4 LongAR-18-69-ANT$1.41
143Anthony Liftgates LogoAnthony A-176497 - Spring Latch ExtensionA-176497-ANT$12.47

PLEASE provide your Anthony Liftgate’s Serial Number and Model Number in the Order Comments at Checkout to ensure the correct parts are ordered. Anthony Liftgate parts ordered without providing a Serial Number or Model Number are subject to Restrictions if a Return is required. See TERMS OF SALE for more information.
