| ID | Image | Title | SKU | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|
| 29 |  | A-140046 - Radius to Arm Adapter Frame Pin | A-140046-ANT | $73.36 | ||
| 34 | | A-140175 - Rocker To Adapter Frame Pin | A-140175-ANT | $34.95 | ||
| 36 | | A-140176 - Rocker To Liftframe Pin | A-140176-ANT | $51.54 | ||
| 39 | | A-140173 - Cam And Roller To Liftframe Pin | A-140173-ANT | $42.72 | ||
| 40 | | A-140317 - Aluminum Platform To Liftframe Pin | A-140317-ANT | $38.92 | ||
| 42 | | A-176844 - Bronze Bushing | A-176844-ANT | $21.32 | ||
| 42 | | Anthony ATU-429 - Composite Bushing | ATU-429-ANT | $17.29 | ||
| 67 | | ATU-427 - Cylinder Pin Bushing | ATU-427-ANT | $22.17 | ||
| 68 | | A-140174 - Upper Cylinder Pin GEN 1& 2 | A-140174-ANT | $43.19 | ||
| 68 | | A-140864 - Upper Cylinder Pin | A-140864-ANT | $32.38 | ||
| 69 | | ATU-103 - Rod Cylinder End Pin | ATU-103-ANT | $35.67 | ||
| 94 | | ATU-647 - Flip-Over Hinge Pin | ATU-647-ANT | $31.08 | ||
| 95 | | ATU-326-M - Platform Flip Spring | ATU-326-M-ANT | $34.11 | ||
| 98 | | Anthony ATU-944 - Fastener Kit | ATU-944-ANT | $4.13 | ||
| 180 | | Anthony A-140723 - MTU-GLR 3/4/EX GEN 1 and 2 Pin Kit | A-140723-ANT | $665.91 | ||
| 180 | | Anthony A-140932 - MTU-GLR 3/4/EX GEN 3 Pin Kit | A-140932-ANT | $977.42 | ||
| 220 | | Anthony ATU-426 - Composite Bushing | ATU-426-ANT | $17.29 | ||
| 221 | | Anthony ATU-428 - Composite Bushing | ATU-428-ANT | $17.29 | ||
| 251 | | 862 | 862-ANT | $1.12 | ||
| 252 | | 869 | 869-ANT | $1.12 | ||
| 263 | | 2184 | 2184-ANT | $0.67 | ||
| 271 | | A-132026 - Cotter Pin 1/4 x 1-1/2 Inch | A-132026-ANT | $1.39 | ||
| 272 | | A-132027 - 2-1/4 Inch Cotter Pin | A-132027-ANT | $1.50 | ||
| 276 | | A-132039 - GR8 Hex Head Bolt 3/8-24 x 3 Inch Zinc-Plated | A-132039-ANT | $1.68 | ||
| 281 | | A-132132 | A-132132-ANT | $1.09 | ||
| 282 | | A-132148 | A-132148-ANT | $0.65 | ||
| 296 | | ATU-134 - Washer | ATU-134-ANT | $1.73 | ||
| 300 | | ATU-358 - Bolt 1/4-20 NC X 2 Long | ATU-358-ANT | $1.34 | ||
| 301 | | ATU-359 | ATU-359-ANT | $1.28 | ||
| 309 | | Anthony A-132251 - M10 Flat Washer | A-132251-ANT | $2.43 |
MTU-GLR-EX-MGTCKU-DG

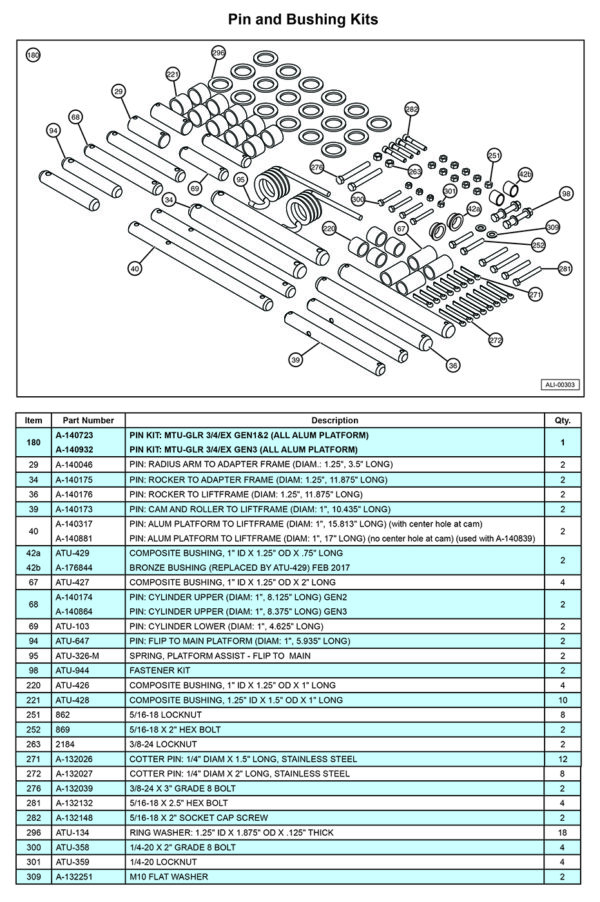

Anthony MTU-GLR-EX Pin And Bushing Kits Diagram
PLEASE provide your Anthony Liftgate’s Serial Number and Model Number in the Order Comments at Checkout to ensure the correct parts are ordered. Anthony Liftgate parts ordered without providing a Serial Number or Model Number are subject to Restrictions if a Return is required. See TERMS OF SALE for more information.
