- Ideal where doors compartments or panels need to engage and disengage quickly and securely.
- Corrosion-resistant zinc-plated steel or stainless steel construction.
- Spring-loaded bolt can be locked in the open position.
- Turning lever allows the bolt to close under spring pressure.

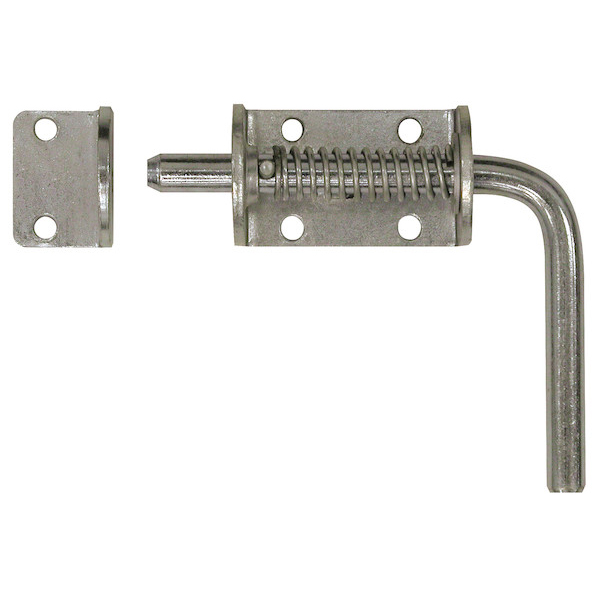

Buyers Products Spring Latch is ideal for uses where doors compartments or panels need to engage and disengage quickly and securely.
The spring-loaded bolt can be locked in the open position as needed; turning the lever allows the bolt to close securely under spring pressure.
The latch is available in your choice of stainless steel or zinc-plated steel and in various sizes. It can be ordered with or without the keeper. All mounting hardware is sold separately.
| Bolt Finish | Zinc-Plated |
| Bolt Material | Carbon Steel |
| Handle Finish | Zinc-Plated |
| Handle Material | Carbon Steel |
| Housing Finish | Zinc-Plated |
| Housing Material | Carbon Steel |
| Latch Style | Spring Latch |
| Pin Diameter | 0.50 Inches |
| Housing Length | 3 Inches |
| Bolt Length | 1.03 Inches |
| Bolt Width | 0.50 Inches |
| Bolt Height | 0.88 Inches |
| Housing Width | 1.75 Inches |
| Housing Height | 1.75 Inches |
| Pin Length | 5.19 Inches |
| Handle Length | 3.88 Inches |
| Mounting Style | Bolt-On |
| Mounting Holes Center To Center | 1.25 Inches |
| Mounting Hole Diameter | 0.28 Inches |
| Keeper Included (Y/N) | Yes |
| Min Order Qty | 1 |
| Multiple Sale Qty | 1 |
| Product Code | 510 |
| Sell Pack Type | Bag |
| Shipping Weight | 2 Lbs |
| UPC | 724920015271 |
Product Common Use: Stake Body Assembly / Trailer Gates / Gates
