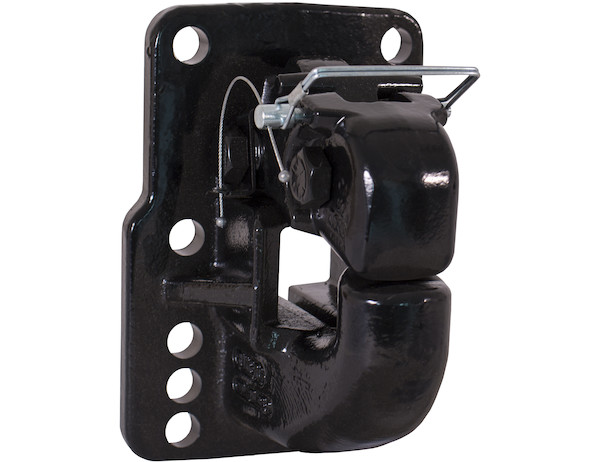

The 50 Ton Air Compensated Pintle Hook from Buyers Products cushions movement between the pintle hook and tow ring. This feature saves wear and tear on the parts, especially in sudden motion or braking situations.
The pintle hook uses the vehicle’s air system to hold the drawbar eye closely to reduce wear, absorb shock, and prevent uncoupling during operation.
The hook is ideal for heavy duty applications such as trailers, semitrailers, and double and triple trailer operations, both off-road and over-the-road.
This product can also be used without the air chamber and plunger as a standard pintle hook.
For off-road use, the load should be reduced by 25% and a swivel type trailer drawbar should be used.
Product Common Use: Heavy Duty Towing, Off-Road Towing, Semi Trailers, Pup Trailer Towing
- Reduces wear and tear on towing parts by reducing slack and movement.
- Makes for a more comfortable ride through shock absorption between the vehicle and trailer.
- Extremely strong austempered ductile iron construction.
- Durable corrosion-resistant powder-coated finish.
Specifications:
- Color – Black
- Finish – Powder Coat
- Material – Cast Steel
- Maximum Gross Trailer Weight (M.G.T.W.) – 100000 lb
- Pintle Hook Type – Air Compensated
- Drawbar Eye Inner Diameter – 2.38-3.00 “
- Mounting Holes Center To Center Vertical – 1.062/1.062/2.375/4.25 “
- Mounting Holes Center To Center Horizontal – 5.000 “
- Mounting Hole Diameter – 0.812 “
- Maximum Vehicle Load (M.V.L.) – 20000 lb
- Min Order Qty – 1
- Multiple Sale Qty – 1
- Product Code – 525
- Sell Pack Type – Craft Box
- Shipping Weight – 38.600
- UPC – 724920106535
