- Stops items 150 microns and larger from getting into your hydraulic system.
- Prevents damage to the pump and other working parts.
- Cleanable and reusable.

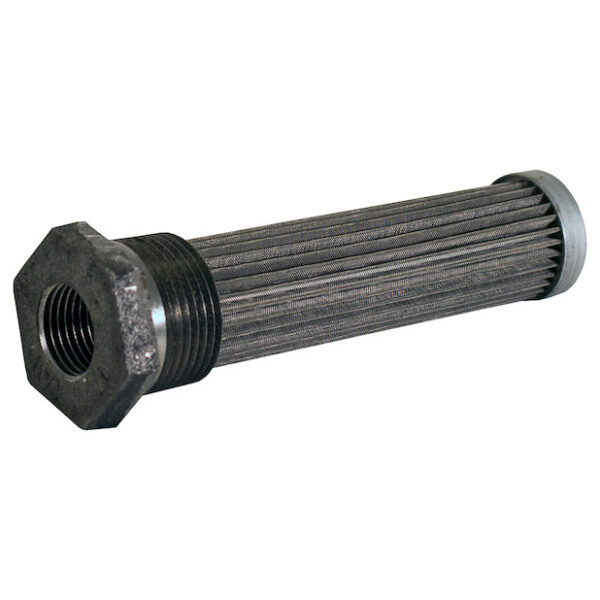

The Thru-Wall Sump Strainer from Buyers Products is designed to stop items from getting back into fluid reservoir and causing damage.
The cleanable and reusable strainer can stop items 150 microns or larger at the suction port of your reservoir, using a pleated element of stainless steel wire cloth (100 mesh). It’s constructed tough, with cast iron bushings and leak-free bonding epoxy.
The strainer installs into the wall of the reservoir and is available in a range of port sizes and flow rates.
| Element Diameter | 1.38 Inches |
| Element Length | 6.70 Inches |
| Material | 304 Stainless Steel |
| Pressure Bypass | 3 PSI |
| Nominal Rating | 150 µm |
| Flow (GPM) | 10 GPM |
| Inlet Port Size | 1-1/4 NPTF |
| Outlet Port Size | 3/4 NPTF |
| Min Order Qty | 1 |
| Multiple Sale Qty | 1 |
| Product Code | 635 |
| Sell Pack Type | Box |
| Shipping Weight | 1 Lb |
| UPC | 724920070744 |
Product Common Use: Truck and Trailer Hydraulic Systems
