Champion C63096D – Single Telescopic Hoists For Platform Bodies

CHAMPION SINGLE TELESCOPIC HOISTS FOR PLATFORM BODIES

Champion offers two types of telescopic hoists. Single (front mount) telescopic, and twin telescopic. Telescopic hoists are most suited for heavy and extreme duty applications. Champion manufacturers all telescopic hoist components. The multistage cylinders however, are supplied by the top telescopic cylinder manufacturer in the industry. Champion’s front mount telescopic hoists utilize an industry standard “dog box” body mounting application. Twin telescopic hoist do not use a “dog box”, but rather mounts to the underside of the body without reducing body volume. Telescopic hoists are available for 8′ to 22′ body applications with a wide range of dumping capacities. Champion manufactures telescopic hoists using mill certified 50K and 100K steel and encapsulates them in a super durable abrasive and chemical resistant thermoset powder coating. All hoists feature integrated Zerk grease fittings at all pivots. When you purchase a telescopic hoist from Champion, all necessary mounting hardware, fasteners, and body prop hardware are included. All champion hoists are covered under a 3 year factory warranty.

Details:

• Zinc thermoset powder coat primer
• Various rear hinge and hardware options
• Hydraulic package options
• Enclosed cylinder boxes (twin telescopic)
• Telescopic support (front mount)

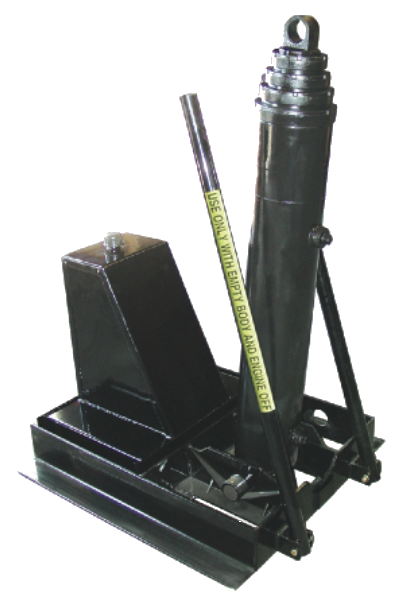

Model C63096D:

• 6″ 3-stage cylinder (96″ stroke)
• Hoist Class – 80
• Recommended Body Length – 12′-13′

IMPORTANT:

FF hoist will include the lower frame/bunk weldment, telescopic cylinder, 2-safety props and cups, rear hinge assembly, body guides and decals

G102D Hoists include G102D pump/valve combination, reservoir, hoses, fittings and attaching parts, 1 3/4″ full width rear hinge and 2 safety props

C102D Hoists include C102D pump/valve combination, reservoir, hoses, fittings and attaching parts, 2″ full width rear hinge and 2 safety props
