ID | Image | Title | SKU | Price | Quantity | Add to Cart |
---|---|---|---|---|---|---|
0 | Fisher 7714 - Solenoid Control Dash Bracket Bag | 7714-FSHR | $78.33 | |||
0 | Fisher 8695K - MM 4 Foot Extended Control Harness | 8695K-FSHR | $97.02 | |||
2 | Fisher 56283 - Shield | 56283-FSHR | $3.47 | |||
3 | Fisher 8333 - Body With Label And Lens | 8333-FSHR | $70.35 | |||
4 | Fisher 8334 - PC Board Assembly - Joystick (3) With Lever Assembly | 8334-FSHR | $351.41 | |||
5 | Fisher 55923 - Conical Spring | 55923-FSHR | $4.08 | |||
6 | Fisher 56199 - Base | 56199-FSHR | $22.59 | |||
7 | Fisher 93153 - Tapping Screw Pan Head Hi-Lo (6-19 X 3/8) | 93153-FSHR | $1.97 | |||
10 | Fisher 7718 - Control Bracket | 7718-FSHR | $50.84 | |||
11 | Fisher 20254K - Dual Lock Fastener Mounting Kit | 20254K-FSHR | $22.77 | |||
12 | Fisher 90659 - Phillips Pan Head Type AB Tapping Screw (12-14 X 3/4 Inch) | 90659-FSHR | $1.57 | |||
13 | Fisher 90461 - G5 Hex Cap Screw (1/4-20 X 3/4 Inch) | 90461-FSHR | $1.12 | |||
14 | Fisher 91411 - G5 Hex Nut (1/4-20) | 91411-FSHR | $1.32 | |||
15 | Fisher 91201 - Spring Lock Washer (1/4) | 91201-FSHR | $2.07 | |||
16 | Fisher 93154 - Slotted Hex Washer Tapping Screw Hi-Lo (8-18 X 5/8) | 93154-FSHR | $3.89 |
Fisher Homesteader Series Diagrams (Legacy)

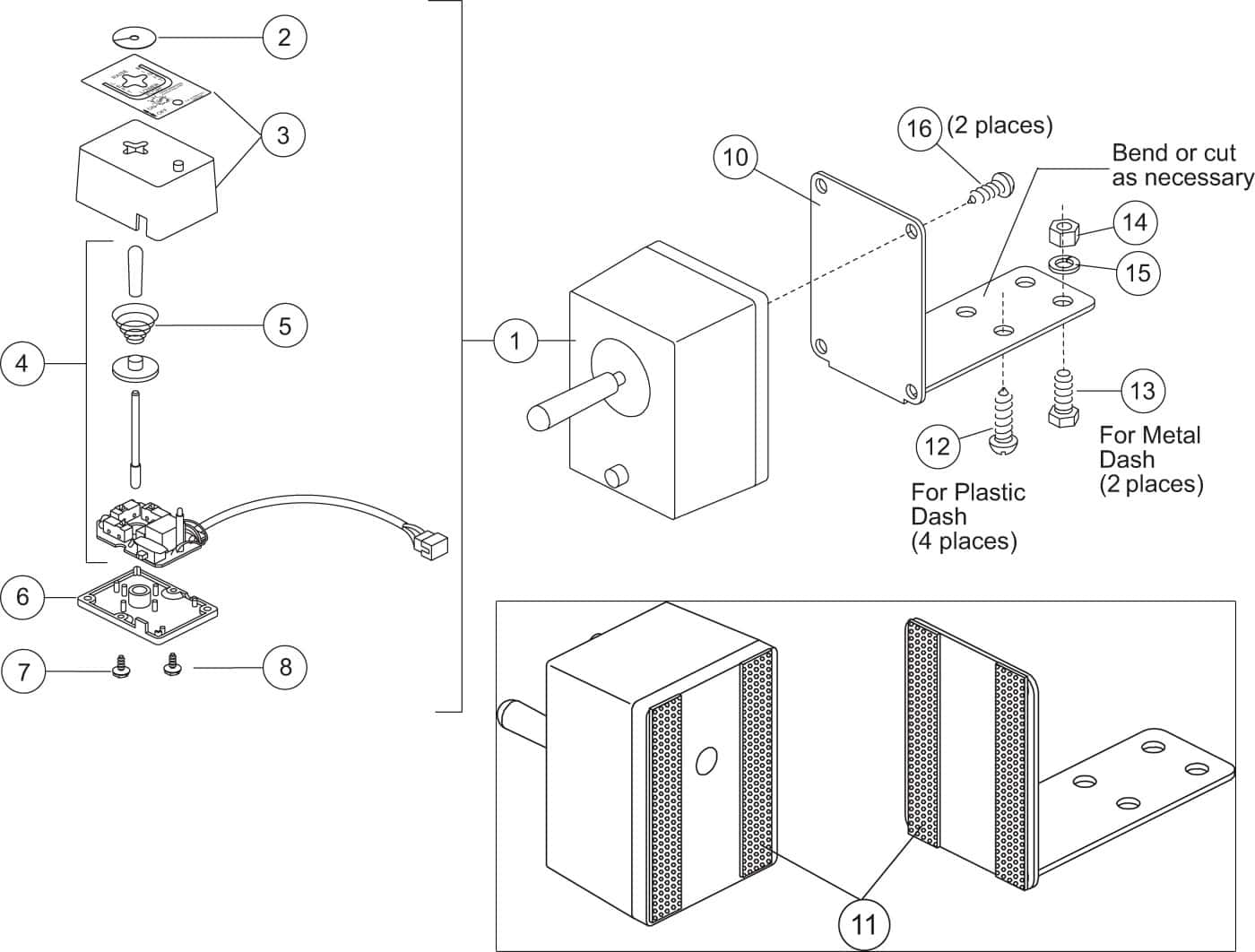

Homesteader Joystick Solenoid Control Diagram
SKU: H-JSC-DG
Category: Fisher Homesteader Series Diagrams (Legacy)
