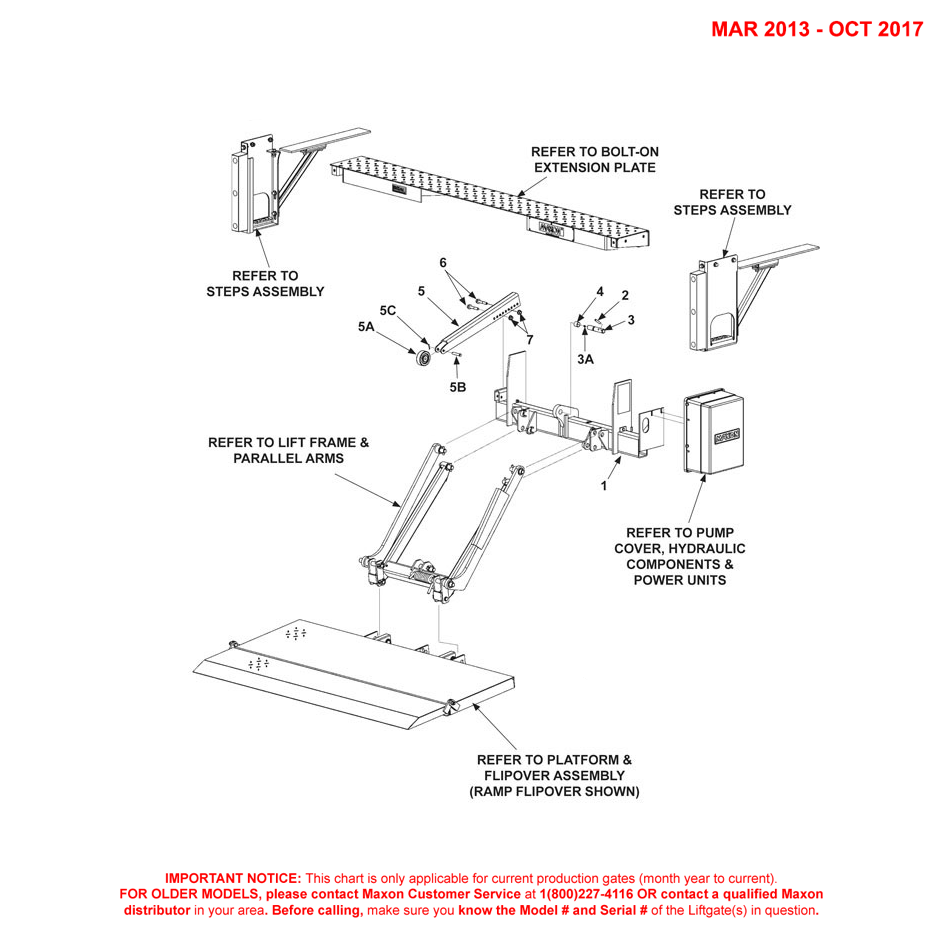

Maxon 72-150 And TE-20 (Mar 2013 - Oct 2017) Galvanized Main Assembly Diagram
,

Maxon 72-150 And TE-20 (Mar 2013 – Oct 2017) Galvanized Main Assembly Diagram

SKU: 72150-TE20-MAR13-OCT17-GMA-DG Categories: ,
ID Image Title SKU Price Quantity Add to Cart
1Maxon 269646-01 - Main Frame AssemblyMaxon 269646-01 - Main Frame Assembly269646-01-MAXO$944.30
2Maxon 904717-06 - ZN Roll Pin - 0.38 x 2 InchesMaxon 904717-06 - ZN Roll Pin - 0.38 x 2 Inches904717-06-MAXO$0.60
3Maxon 224342 - 1/4 Self Drill Grease FittingMaxon 224342 - 1/4 Self Drill Grease Fitting224342-MAXO$0.45
3Maxon 261895-101 - Pin Assembly 1 Inch DIA X 5.12 LG GRSMaxon 261895-101 - Pin Assembly 1 Inch DIA X 5.12 LG GRS261895-101-MAXO$57.44
4Maxon 260916-06 - Bearing Self Lube 1 DIA X 1 INMaxon 260916-06 - Bearing Self Lube 1 DIA X 1 IN260916-06-MAXO$13.86
5Maxon 269638-01G - Opener Assembly TE-20/72-150 GALVMaxon 269638-01G - Opener Assembly TE-20/72-150 GALV269638-01G-MAXO$181.34
5Maxon 269638-01 - Opener Assembly TE-20/72-150Maxon 269638-01 - Opener Assembly TE-20/72-150269638-01-MAXO$132.06
5Maxon 280082-01 - Roller Opener 3.5 X 1.25 X .5Maxon 280082-01 - Roller Opener 3.5 X 1.25 X .5280082-01-MAXO$23.28
5Maxon 905202-03 - Clevis Pin - .500 DIA X 2.50 InchMaxon 905202-03 - Clevis Pin - .500 DIA X 2.50 Inch905202-03-MAXO$3.63
6Maxon 901024-9 - Bolt Hex Frame 0.5-13 X 2.75 Inch LGMaxon 901024-9 - Bolt Hex Frame 0.5-13 X 2.75 Inch LG901024-9-MAXO$3.71
7Maxon 901023 - Flange Lock NutMaxon 901023 - Flange Lock Nut901023-MAXO$1.29

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
