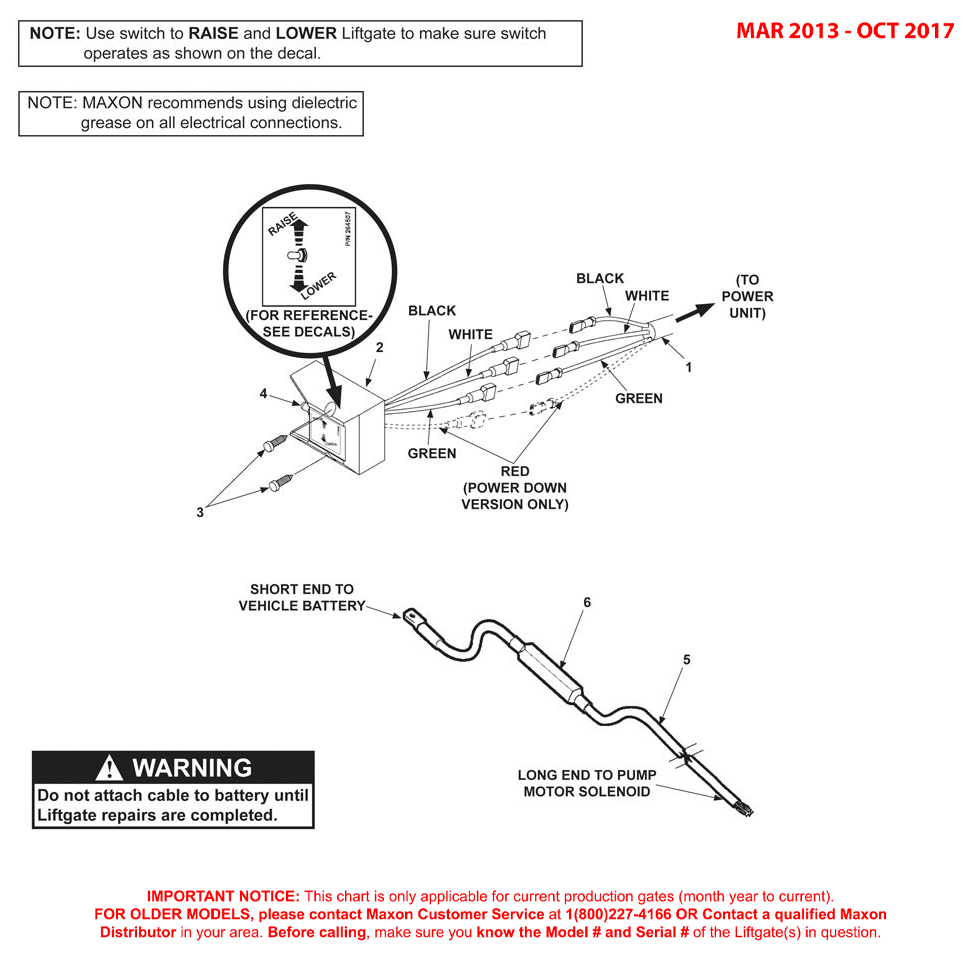

Maxon 72-150 (Mar 2013 - Oct 2017) Control Switch And Power Cable Diagram

Maxon 72-150 (Mar 2013 – Oct 2017) Control Switch And Power Cable Diagram

SKU: 72150-MAR13-OCT17-CSPC-DG Category:
ID Image Title SKU Price Quantity Add to Cart
1Maxon 268025-01 - Cable Assembly Pump G/D TUK-A-WAYMaxon 268025-01 - Cable Assembly Pump G/D TUK-A-WAY268025-01-MAXO$48.24
1Maxon 268170-01 - Cable Assembly P/D Pump Tuk-A-WayMaxon 268170-01 - Cable Assembly P/D Pump Tuk-A-Way268170-01-MAXO$85.76
1Maxon 280637-01 - Cable Assembly 16-3 G/DownMaxon 280637-01 - Cable Assembly 16-3 G/Down280637-01-MAXO$86.52
2Maxon 264951-04 - Molded Switch and CableMaxon 264951-04 - Molded Switch and Cable264951-04-MAXO$125.46
2Maxon 267959-01 - Molded Switch AssemblyMaxon 267959-01 - Molded Switch Assembly267959-01-MAXO$123.83
3Maxon 900057-5 - Screw Self Tap 10-24 X 1 Inch PH ZCMaxon 900057-5 - Screw Self Tap 10-24 X 1 Inch PH ZC900057-5-MAXO$0.24
4Maxon 905206 - Half-Toggle Switch Seal BootMaxon 905206 - Half-Toggle Switch Seal Boot905206-MAXO$12.63
5Maxon 264422 - Cable Assembly 175 AMPS 38FTMaxon 264422 - Cable Assembly 175 AMPS 38FT264422-MAXO$344.22
6Maxon 264687 - Kit Mega FUSEN 175 AMPSMaxon 264687 - Kit Mega FUSEN 175 AMPS264687-MAXO$47.12

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
