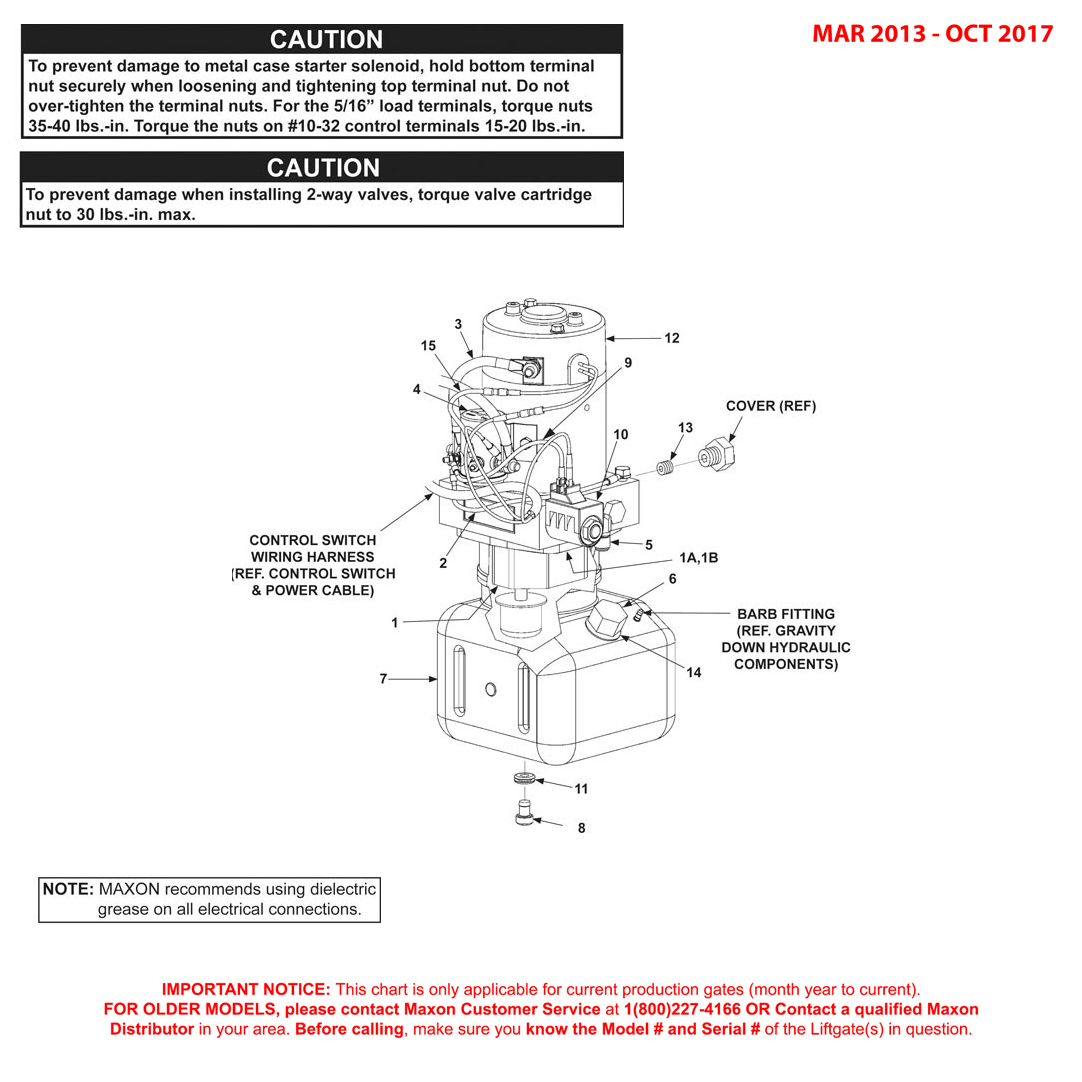

Maxon 72-150 (Mar 2013 - Oct 2017) Gravity Down 12VDC Power Unit Diagram

Maxon 72-150 (Mar 2013 – Oct 2017) Gravity Down 12VDC Power Unit Diagram

SKU: 72150-MAR13-OCT17-GD12VDC-PU-DG Category:
ID Image Title SKU Price Quantity Add to Cart
1Maxon 226594 - Oil Seal KitMaxon 226594 - Oil Seal Kit226594-MAXO$7.07
1Maxon 290002 - 3-Piece Gear PumpMaxon 290002 - 3-Piece Gear Pump290002-MAXO$216.20
1Maxon 290020 - O-Ring Kepner Check ValveMaxon 290020 - O-Ring Kepner Check Valve290020-MAXO$7.14
2Maxon 268027-01 - Wire Assembly 18GA #10RING-.31RINGMaxon 268027-01 - Wire Assembly 18GA #10RING-.31RING268027-01-MAXO$4.95
3Maxon 280404 - Cable AssemblyMaxon 280404 - Cable Assembly280404-MAXO$9.51
4Maxon 268029-01 - Start Switch SolenoidMaxon 268029-01 - Start Switch Solenoid268029-01-MAXO$82.50
5Maxon 905152 - Elbow - 90 Degree O-Ring SAE6-JIC37 #6Maxon 905152 - Elbow - 90 Degree O-Ring SAE6-JIC37 #6905152-MAXO$22.58
6Maxon 280806-01 - Breather FillerMaxon 280806-01 - Breather Filler280806-01-MAXO$6.32
7Maxon 267733-11 - 3 QT Reservoir VERT 8 Inch H w/ VentMaxon 267733-11 - 3 QT Reservoir VERT 8 Inch H w/ Vent267733-11-MAXO$87.77
8Maxon 908017-01 - Drain Port PlugMaxon 908017-01 - Drain Port Plug908017-01-MAXO$3.36
9Maxon 280416 - Wire AssemblyMaxon 280416 - Wire Assembly280416-MAXO$6.20
10Maxon 290043 - Valve Assembly 2 Way Double SpadeMaxon 290043 - Valve Assembly 2 Way Double Spade290043-MAXO$134.27
11Maxon 908018-01 - Rubber Grommet .31 IDMaxon 908018-01 - Rubber Grommet .31 ID908018-01-MAXO$1.94
13Maxon 906740-01 - Relief Valve Assembly - Red SpringMaxon 906740-01 - Relief Valve Assembly - Red Spring906740-01-MAXO$34.56
14Maxon 908016-01 - Rubber Grommet .60 IDMaxon 908016-01 - Rubber Grommet .60 ID908016-01-MAXO$2.69
15Maxon 268024-01 - Wire Assembly 16GA White TUK-A-WAYMaxon 268024-01 - Wire Assembly 16GA White TUK-A-WAY268024-01-MAXO$9.99

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
