ID | Image | Title | SKU | Price | Quantity | Add to Cart |
---|---|---|---|---|---|---|
1 | Maxon 260315 - Lift Frame Assembly 72-25LM/30LM | 260315-MAXO | $1,588.28 | |||
2 | Maxon 260363 - Bearing Self Lube 1 X 1.5 Inch | 260363-MAXO | $10.77 | |||
3 | Maxon 260368-03 - Pin 1.00 DIA X 3-1/2 Inch LG | 260368-03-MAXO | $40.61 | |||
4 | Maxon 260368-04 - Pin 1.00 DIA X 4-1/2 Inch LG | 260368-04-MAXO | $43.37 | |||
5 | Maxon 904717-06 - ZN Roll Pin - 0.38 x 2 Inches | 904717-06-MAXO | $0.60 | |||
6 | Maxon 260369 - Self Lube Bearing 1-1/8 X 2 Inch | 260369-MAXO | $19.98 | |||
7 | Maxon 260368-05 - Pin 1.00 DIA X 5.00 Inch LG | 260368-05-MAXO | $45.62 | |||
8 | Maxon 260368-02 - Pin 1.00 DIA X 11-1/4 Inch LG | 260368-02-MAXO | $58.46 | |||
9 | Maxon 221867 - Roller X .75 | 221867-MAXO | $18.08 | |||
10 | Maxon 201640 - Torsion Spring P/F | 201640-MAXO | $64.37 | |||
11 | Maxon 263325 - Parallel Arm Assembly | 263325-MAXO | $768.41 | |||
12 | Maxon 280347-01 - Shackle Weldment LH | 280347-01-MAXO | $85.56 | |||
13 | Maxon 280347-02 - Shackle Weldment RH | 280347-02-MAXO | $100.80 |
72-25 And 72-30 Diagrams

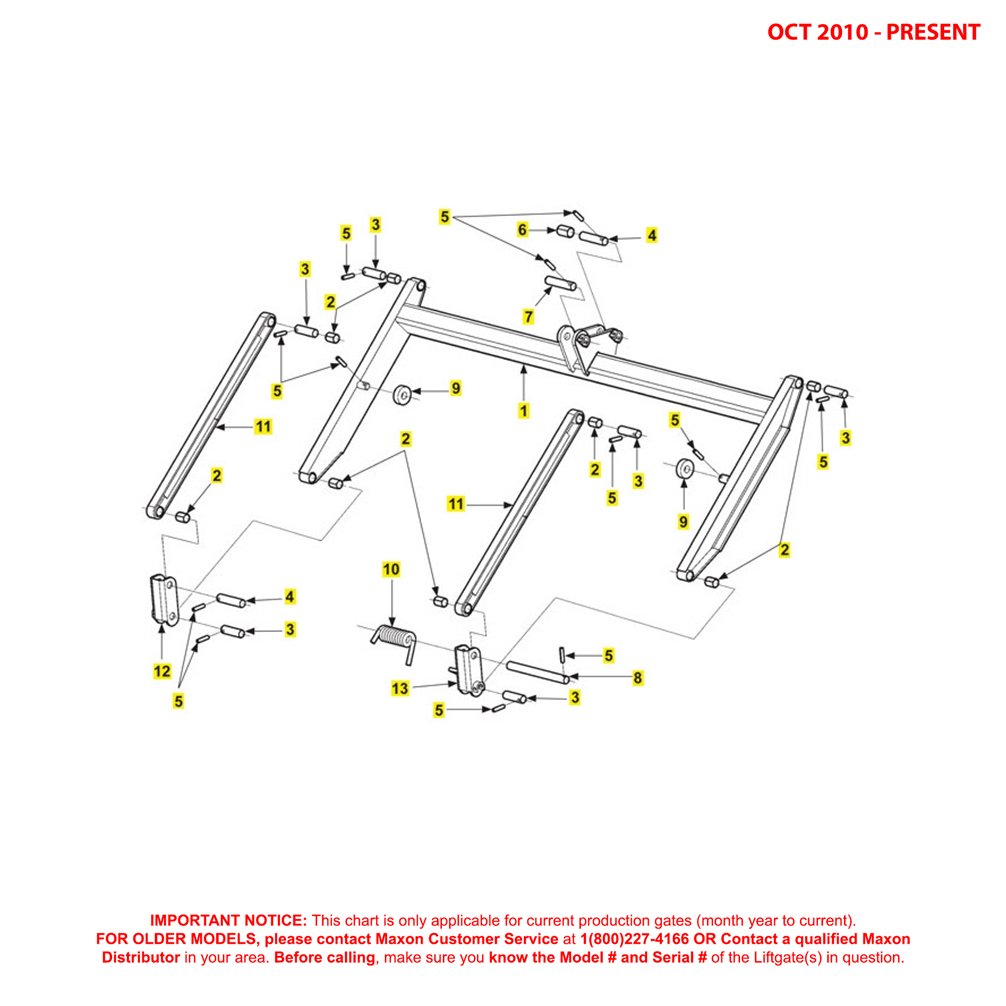

Maxon 72-25 And 72-30 (Oct 2010 – Present) Lift Frame And Parallel Arms Diagram
SKU: 7225-7230-OCT10-PRES-LFPA-DG
Category: 72-25 And 72-30 Diagrams
INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:
- LOCATE YOUR SERIAL PLATE on your Liftgate.
- LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
- IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
- IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.
INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!
DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
