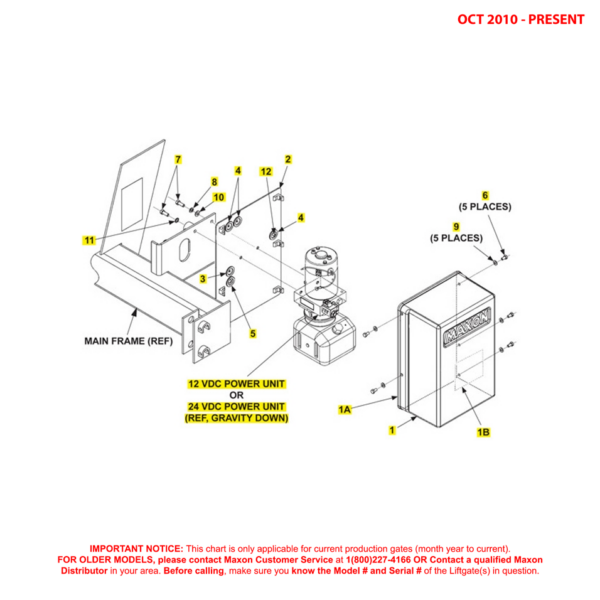

92420 Assembly w/Ball Valve

ID	Title	SKU	Price
1	Maxon 096045-10 - Strip Foam ADH Back 60 Inch LG	096045-10-MAXO	$21.80
1	Maxon 261740 - Oil Level Label - Pump Assembly	261740-MAXO	$3.15
1	Maxon 266419-01 - Tuk-A-Way Pump Cover Assembly	266419-01-MAXO	$85.07
2	Maxon 266427-01 - Plate - Pump Mount Weldment	266427-01-MAXO	$142.64
3	Maxon 266428-01 - Grommet 1.0 DIAPH .19 Hole	266428-01-MAXO	$3.59
4	Maxon 266428-02 - Grommet 1.0 DIAPH .25 Hole	266428-02-MAXO	$3.42
5	Maxon 266428-06 - Grommet 1.0 DIAPH .56 HOLE	266428-06-MAXO	$3.59
6	Maxon 900009-3 - Hex Bolt 5/16-18 X 3/4 - GR8 ZC	900009-3-MAXO	$0.38
7	Maxon 900014-4 - Hex Cap Screw - .38-16 X 1 G8 ZC	900014-4-MAXO	$0.71
8	Maxon 902011-4 - Washer Lock 3/8 X .094 ZC	902011-4-MAXO	$0.15
9	Maxon 902002-1 - Washer Flat 5/16 X 1/16 Inch ZC	902002-1-MAXO	$0.11
10	Maxon 902013-11 - Flat Washer 3/8 Inch ZC	902013-11-MAXO	$0.18
11	Maxon 903400-02 - Washer External Tooth	903400-02-MAXO	$0.23
12	Maxon 908022-02 - Flexible Plug - .315 X .471	908022-02-MAXO	$5.57

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

LOCATE YOUR SERIAL PLATE on your Liftgate.
LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.
