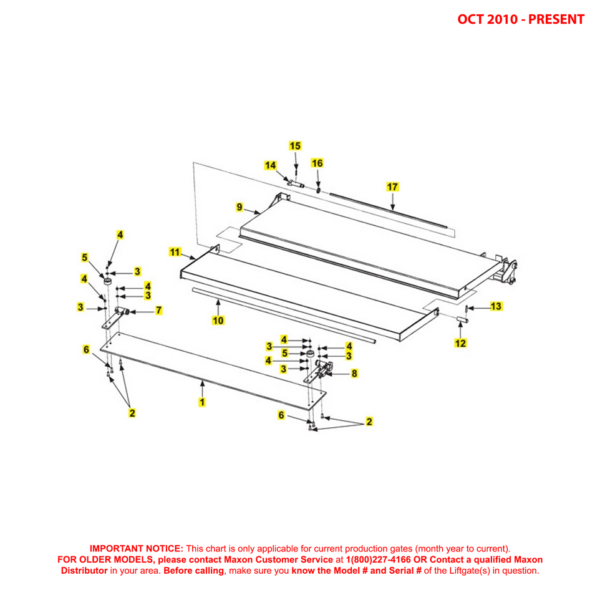

Maxon 72-25 And 72-30 (Oct 2010 - Present) Special Profile Platform And Flipover Assembly Diagram

Maxon 72-25 And 72-30 (Oct 2010 – Present) Special Profile Platform And Flipover Assembly Diagram

SKU: 7225-7230-OCT10-PRES-SP-PFDOA-DG Category:
ID Image Title SKU Price Quantity Add to Cart
1Maxon 253875 - Aluminum Ramp 3/8 X 10 Inch X 69 InchMaxon 253875 - Aluminum Ramp 3/8 X 10 Inch X 69 Inch253875-MAXO$909.30
2Maxon 900061-5 - Flathead Screw SOC .375-16 1.25 Inch LG Stainless SteelMaxon 900061-5 - Flathead Screw SOC .375-16 1.25 Inch LG Stainless Steel900061-5-MAXO$2.36
3Maxon 902001-2 - Flat Washer 3/8 X 1/16 Inch ZCMaxon 902001-2 - Flat Washer 3/8 X 1/16 Inch ZC902001-2-MAXO$0.18
4Maxon 901002 - Nut Nylon 3/8-16 ZincMaxon 901002 - Nut Nylon 3/8-16 Zinc901002-MAXO$0.36
5Maxon 253516 - Bumper 2 X 1 Inch RubberMaxon 253516 - Bumper 2 X 1 Inch Rubber253516-MAXO$21.08
6Maxon 900061-6 - Flathead Screw FLH SOC .375-16 1.50 LG SSTMaxon 900061-6 - Flathead Screw FLH SOC .375-16 1.50 LG SST900061-6-MAXO$2.94
7Maxon 253876 - Hinge Assembly L/HMaxon 253876 - Hinge Assembly L/H253876-MAXO$273.80
8Maxon 253877 - Hinge Assembly R/HMaxon 253877 - Hinge Assembly R/H253877-MAXO$352.97
9Maxon 280548-01 - P/F Weldment ARRMaxon 280548-01 - P/F Weldment ARR280548-01-MAXO$1,816.43
10Maxon 225985 - Pipe-SCH 80 X 3/4 X 60 Inch LGMaxon 225985 - Pipe-SCH 80 X 3/4 X 60 Inch LG225985-MAXO$50.34
11Maxon 201680-01 - F/S Assembly 72-25B/30B 10 Inch A.R.R.Maxon 201680-01 - F/S Assembly 72-25B/30B 10 Inch A.R.R.201680-01-MAXO$804.33
12Maxon 203405-05 - Pin X 3-1/4 InchMaxon 203405-05 - Pin X 3-1/4 Inch203405-05-MAXO$28.85
13Maxon 904717-06 - ZN Roll Pin - 0.38 x 2 InchesMaxon 904717-06 - ZN Roll Pin - 0.38 x 2 Inches904717-06-MAXO$0.60
14Maxon 253805 - Pin Weldment - Torsion Bar 7225/30BMaxon 253805 - Pin Weldment - Torsion Bar 7225/30B253805-MAXO$79.43
15Maxon 905033-1 - Roll Pin .250 O.D. X 1.50 Inch LGMaxon 905033-1 - Roll Pin .250 O.D. X 1.50 Inch LG905033-1-MAXO$0.32
16Maxon 253808 - Spacer Bushing X 1/4 InchMaxon 253808 - Spacer Bushing X 1/4 Inch253808-MAXO$10.56
17Maxon 253173 - Torsion Bar 3/8 X 3/8 X 38.5 Inch 4140Maxon 253173 - Torsion Bar 3/8 X 3/8 X 38.5 Inch 4140253173-MAXO$213.05

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
