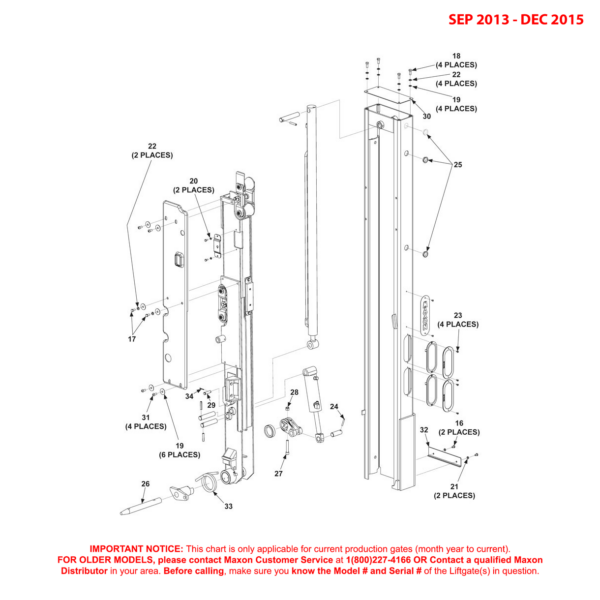

Maxon BMR-A-CS (Sep 2013 - Dec 2015) Right Hand Column Assembly 36 Inch Platform Diagram (2 OF 2)

Maxon BMR-A-CS (Sep 2013 – Dec 2015) Right Hand Column Assembly 36 Inch Platform Diagram (2 OF 2)

SKU: BMRACS-SEP13-DEC15-RHCA-36DP-DG2 Category:
ID Image Title SKU Price Quantity Add to Cart
16Maxon 900009-4 - Screw Cap 5/16-18 X 1/2 Inch GR8 ZCMaxon 900009-4 - Screw Cap 5/16-18 X 1/2 Inch GR8 ZC900009-4-MAXO$0.27
17Maxon 900014-3 - Screw Hex Head .38-16 X .75 Inch G8 ZCMaxon 900014-3 - Screw Hex Head .38-16 X .75 Inch G8 ZC900014-3-MAXO$0.54
18Maxon 900014-4 - Hex Cap Screw - .38-16 X 1 G8 ZCMaxon 900014-4 - Hex Cap Screw - .38-16 X 1 G8 ZC900014-4-MAXO$0.71
19Maxon 902000-10 - Washer Flat .375 X .063 THKMaxon 902000-10 - Washer Flat .375 X .063 THK902000-10-MAXO$0.36
20Maxon 902011-2 - Lock Washer .25 X .062 Inch THKMaxon 902011-2 - Lock Washer .25 X .062 Inch THK902011-2-MAXO$0.08
21Maxon 902011-3 - Lock Washer 5/16 X 5/64 Inch G8 ZCMaxon 902011-3 - Lock Washer 5/16 X 5/64 Inch G8 ZC902011-3-MAXO$0.11
22Maxon 902011-4 - Washer Lock 3/8 X .094 ZCMaxon 902011-4 - Washer Lock 3/8 X .094 ZC902011-4-MAXO$0.15
23Maxon 904005-2 - Rivet - Blind Stainless Steel Dome - .187X.565Maxon 904005-2 - Rivet - Blind Stainless Steel Dome - .187X.565904005-2-MAXO$0.72
24Maxon 905033-5 - 2.00 x .25 Inch OD Roll PinMaxon 905033-5 - 2.00 x .25 Inch OD Roll Pin905033-5-MAXO$0.41
25Maxon 260403 - Plug PolyetyleneMaxon 260403 - Plug Polyetylene260403-MAXO$0.36
26Maxon 280103 - Pin X 13 Inch Stainless SteelMaxon 280103 - Pin X 13 Inch Stainless Steel280103-MAXO$201.12
27Maxon 900037-11 - Screw SOCHD 1/2-20 X 3 GR8 ZCMaxon 900037-11 - Screw SOCHD 1/2-20 X 3 GR8 ZC900037-11-MAXO$2.90
28Maxon 901008 - Nut Nylon 1/2-20 ZCMaxon 901008 - Nut Nylon 1/2-20 ZC901008-MAXO$1.28
29Maxon 905136-01 - Pin Clevis .500 X 1.906 Inch GR8Maxon 905136-01 - Pin Clevis .500 X 1.906 Inch GR8905136-01-MAXO$4.98
30Maxon 263114 - Cover BMR ColumnMaxon 263114 - Cover BMR Column263114-MAXO$18.02
30Maxon 281761-01 - Cover Column Zinc PL BMRAMaxon 281761-01 - Cover Column Zinc PL BMRA281761-01-MAXO$17.60
31Maxon 900064-04 - Screw BTN SCT Cap .375-16 X .875 InchMaxon 900064-04 - Screw BTN SCT Cap .375-16 X .875 Inch900064-04-MAXO$0.65
32Maxon 268009-02 - Cover SSTMaxon 268009-02 - Cover SST268009-02-MAXO$16.91
33Maxon 260179 - Spring TorsionMaxon 260179 - Spring Torsion260179-MAXO$59.28

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
