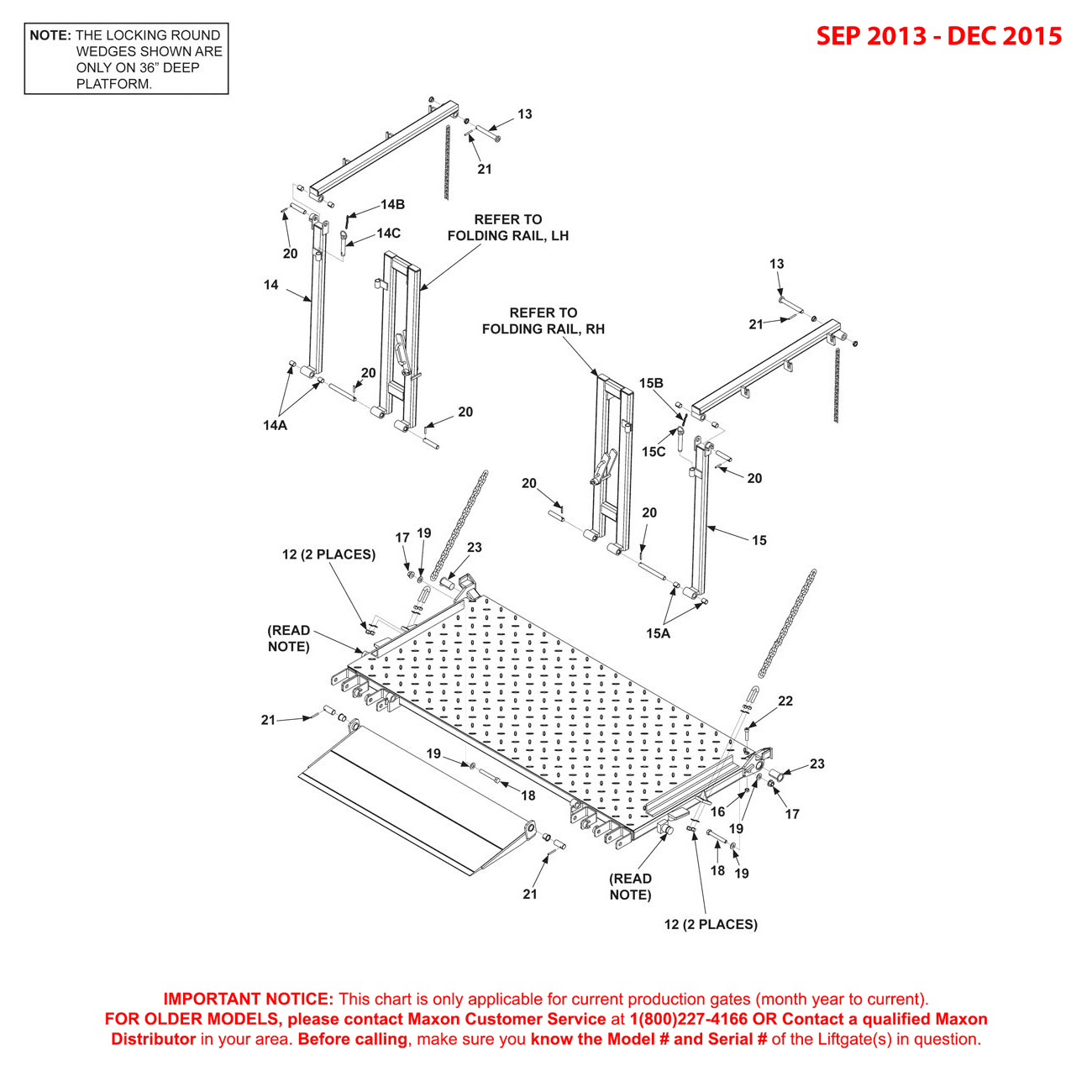

Maxon BMR-A-CS (Sep 2013 - Dec 2015) Steel Platform Assembly Diagram (2 OF 2)

Maxon BMR-A-CS (Sep 2013 – Dec 2015) Steel Platform Assembly Diagram (2 OF 2)

SKU: BMRACS-SEP13-DEC15-SPFA-DG2 Category:
ID Image Title SKU Price Quantity Add to Cart
12Maxon 901010 - Nylon Lock Nut 1/2-13 ZCMaxon 901010 - Nylon Lock Nut 1/2-13 ZC901010-MAXO$0.54
13Maxon 280324-100 - Pin Weldment .75 X 5.42 C/L SSTMaxon 280324-100 - Pin Weldment .75 X 5.42 C/L SST280324-100-MAXO$51.51
14Maxon 280335-01 - Corner Post Assembly LHMaxon 280335-01 - Corner Post Assembly LH280335-01-MAXO$254.67
15Maxon 050408-05 - Chain #4 X 5 LinksMaxon 050408-05 - Chain #4 X 5 Links050408-05-MAXO$2.78
15Maxon 202802 - Ball Lock PinMaxon 202802 - Ball Lock Pin202802-MAXO$33.06
15Maxon 260917-06 - Bearing Self Lube 3/4 X 1 Inch (260747)Maxon 260917-06 - Bearing Self Lube 3/4 X 1 Inch (260747)260917-06-MAXO$8.60
15Maxon 280335-02 - Corner Post Assembly RHMaxon 280335-02 - Corner Post Assembly RH280335-02-MAXO$254.67
17Maxon 903136-05 - Flange Lock Nut .63-11 PLMaxon 903136-05 - Flange Lock Nut .63-11 PL903136-05-MAXO$1.55
18Maxon 900055-14 - Screw Hex Head .625-11UNC X 4.5 InchMaxon 900055-14 - Screw Hex Head .625-11UNC X 4.5 Inch900055-14-MAXO$4.25
19Maxon 902013-15 - Flat Washer 5/8 Inch ZCMaxon 902013-15 - Flat Washer 5/8 Inch ZC902013-15-MAXO$0.44
20Maxon 905033-1 - Roll Pin .250 O.D. X 1.50 Inch LGMaxon 905033-1 - Roll Pin .250 O.D. X 1.50 Inch LG905033-1-MAXO$0.32
21Maxon 905033-5 - 2.00 x .25 Inch OD Roll PinMaxon 905033-5 - 2.00 x .25 Inch OD Roll Pin905033-5-MAXO$0.41
22Maxon 900036-10 - Screw SOC 1/2-13 X 2-1/4 Inch GR8 ZCMaxon 900036-10 - Screw SOC 1/2-13 X 2-1/4 Inch GR8 ZC900036-10-MAXO$2.37
23Maxon 905200 - Bearing Self-Lube 1.25ID X 2.5LGMaxon 905200 - Bearing Self-Lube 1.25ID X 2.5LG905200-MAXO$49.58

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
