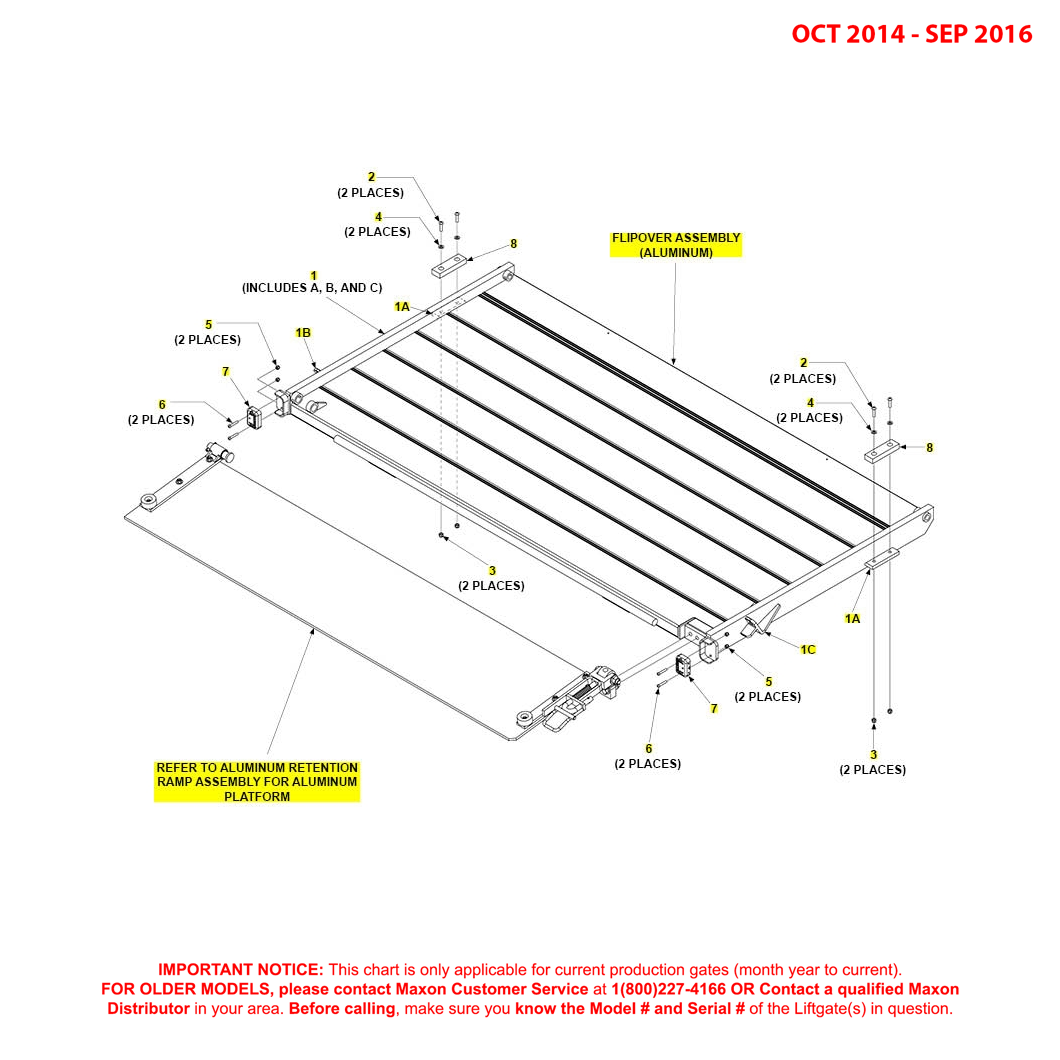

Maxon BMR (Oct 2014 - Sep 2016) Optional Battery Box Diagram From ITEParts.com

ID	Title	SKU	Price
0	Maxon 286870-03 - F/O and ARR Assembly AL80X42	286870-03-MAXO	$3,729.38
0	Maxon 286870-06 - F/O and ARR Assembly AL85X42	286870-06-MAXO	$3,634.80
0	Maxon 286870-15MG - F/O and ARR Assembly AL85X36MG	286870-15MG-MAXO	$3,595.80
0	Maxon 286870-16MG - F/O and ARR Assembly AL85X42MG	286870-16MG-MAXO	$3,873.68
1	Maxon 286875-06 - F/O Weldment AL 85X42	286875-06-MAXO	$2,256.15
1	Maxon 286875-16MG - F/O Weldment AL 85X42MG	286875-16MG-MAXO	$2,224.95
1	Maxon 287591-01 - Flat AL Bumper Holder	287591-01-MAXO	$13.55
2	Maxon 900001-4 - Screw BUT 5/16-18 X 1-1/4 Inch Alloy	900001-4-MAXO	$1.97
3	Maxon 903106-10 - Nut Nylon Insert Stop .313 -18 SS	903106-10-MAXO	$0.35
4	Maxon 902013-10 - Washer Flat 5/16 Inch SAE ZC	902013-10-MAXO	$0.18
5	Maxon 903137-01 - Nut - Nylon Insert Stop - .25-20 SS	903137-01-MAXO	$0.48
6	Maxon 900719-09 - Screw Button .25-20 X 1.5 Inch SS	900719-09-MAXO	$0.54
8	Maxon 225278-02 - Rubber Bumper 3/4 x 1.5 x 5 - 2 Hole	225278-02-MAXO	$24.86

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

LOCATE YOUR SERIAL PLATE on your Liftgate.
LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.
