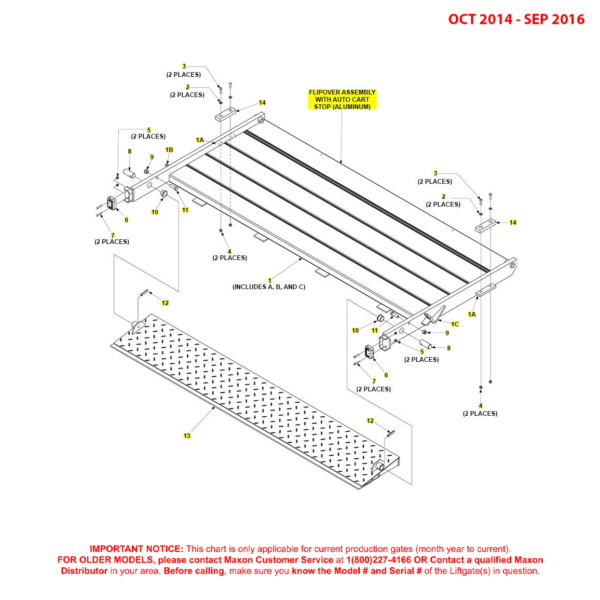

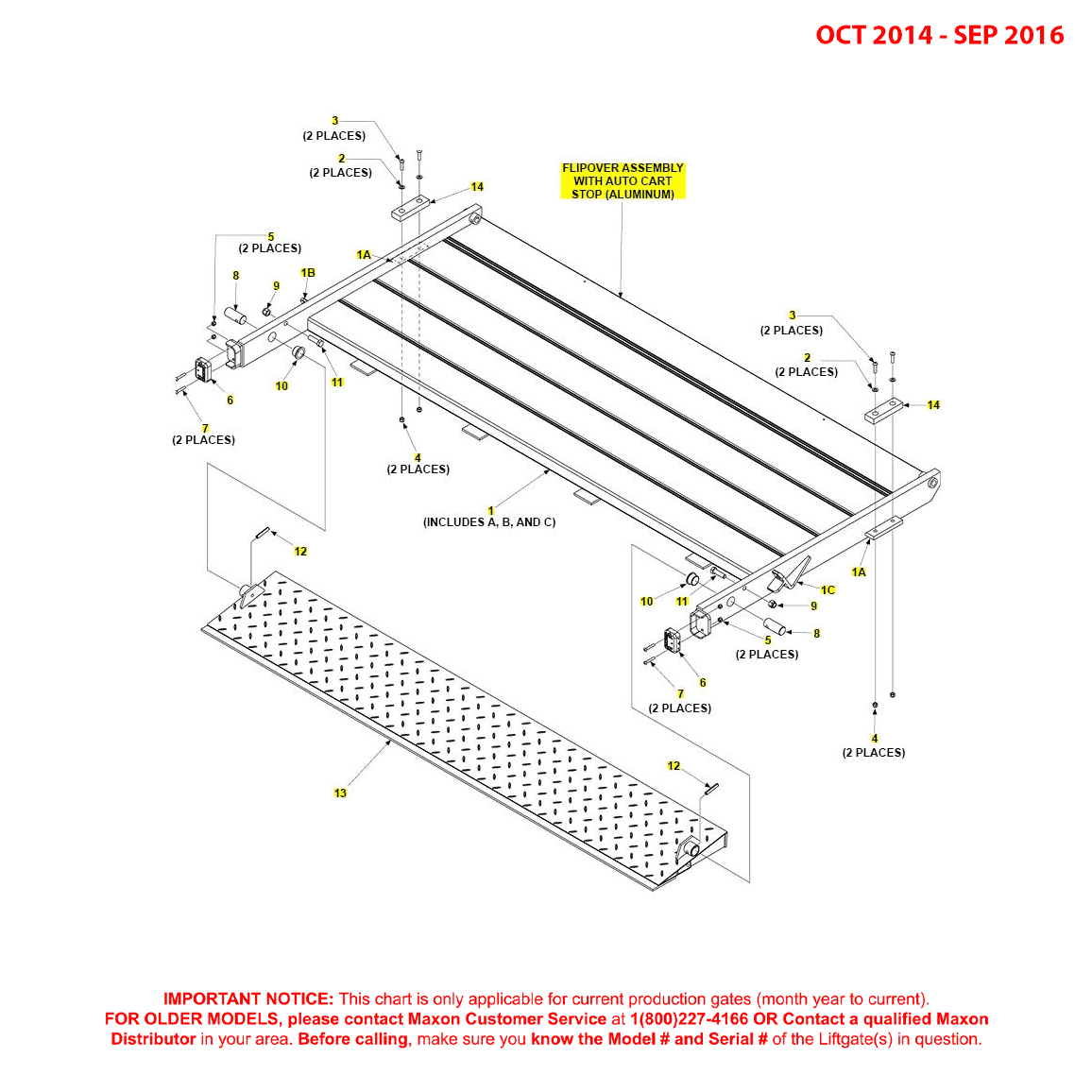

Maxon BMR (Oct 2014 - Sep 2016) Aluminum Flipover Assembly With Auto Cart Stop Diagram

Maxon BMR (Oct 2014 – Sep 2016) Aluminum Flipover Assembly With Auto Cart Stop Diagram

SKU: BMR-OCT14-SEP16-ALFOA-ACS-DG Category:
ID Image Title SKU Price Quantity Add to Cart
0Maxon 288759-02 - F/O Assembly BMR 30 X 85 AL 12 Inch S/CSMaxon 288759-02 - F/O Assembly BMR 30 X 85 AL 12 Inch S/CS288759-02-MAXO$2,947.43
1Maxon 287591-01 - Flat AL Bumper HolderMaxon 287591-01 - Flat AL Bumper Holder287591-01-MAXO$13.55
2Maxon 902013-10 - Washer Flat 5/16 Inch SAE ZCMaxon 902013-10 - Washer Flat 5/16 Inch SAE ZC902013-10-MAXO$0.18
3Maxon 900001-4 - Screw BUT 5/16-18 X 1-1/4 Inch AlloyMaxon 900001-4 - Screw BUT 5/16-18 X 1-1/4 Inch Alloy900001-4-MAXO$1.97
4Maxon 903106-10 - Nut Nylon Insert Stop .313 -18 SSMaxon 903106-10 - Nut Nylon Insert Stop .313 -18 SS903106-10-MAXO$0.35
5Maxon 903137-01 - Nut - Nylon Insert Stop - .25-20 SSMaxon 903137-01 - Nut - Nylon Insert Stop - .25-20 SS903137-01-MAXO$0.48
7Maxon 900719-09 - Screw Button .25-20 X 1.5 Inch SSMaxon 900719-09 - Screw Button .25-20 X 1.5 Inch SS900719-09-MAXO$0.54
8Maxon 281369-01 - Pin 1.13 DIA X 2.69 Inch LG C/StopMaxon 281369-01 - Pin 1.13 DIA X 2.69 Inch LG C/Stop281369-01-MAXO$15.39
10Maxon 261837-11 - Bushing - FLNG PLST 1.121 D X .75 InchMaxon 261837-11 - Bushing - FLNG PLST 1.121 D X .75 Inch261837-11-MAXO$18.35
12Maxon 904717-06 - ZN Roll Pin - 0.38 x 2 InchesMaxon 904717-06 - ZN Roll Pin - 0.38 x 2 Inches904717-06-MAXO$0.60
14Maxon 225278-02 - Rubber Bumper 3/4 x 1.5 x 5 - 2 HoleMaxon 225278-02 - Rubber Bumper 3/4 x 1.5 x 5 - 2 Hole225278-02-MAXO$24.86

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
