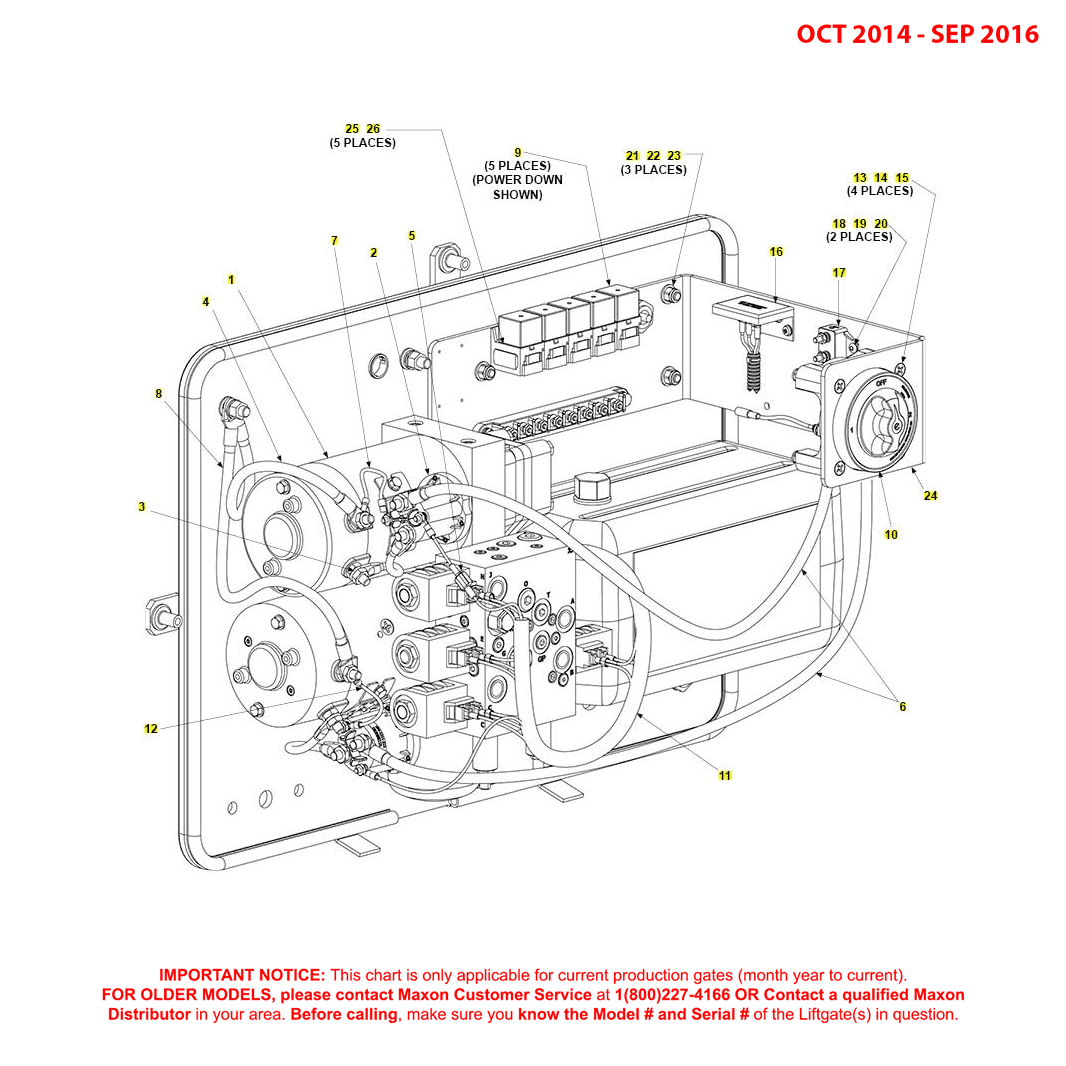

Maxon BMR (Oct 2014 - Sep 2016) Dual Pump Assembly Diagram

Maxon BMR (Oct 2014 – Sep 2016) Dual Pump Assembly Diagram

SKU: BMR-OCT14-SEP16-DPA-DG Category:
ID Image Title SKU Price Quantity Add to Cart
1Maxon 269565-01 - 12 VDC P/Unit 204 No BlockMaxon 269565-01 - 12 VDC P/Unit 204 No Block269565-01-MAXO$931.53
2Maxon 284080-01 - Switch Solenoid AssemblyMaxon 284080-01 - Switch Solenoid Assembly284080-01-MAXO$33.11
3Maxon 280404 - Cable AssemblyMaxon 280404 - Cable Assembly280404-MAXO$9.51
6Maxon 287676-01 - Cable Assembly 2GA R.31/.38 28.0 LGMaxon 287676-01 - Cable Assembly 2GA R.31/.38 28.0 LG287676-01-MAXO$26.21
8Maxon 268226-01 - Cable Assembly 2GA .31 / .38 RING 10 InchMaxon 268226-01 - Cable Assembly 2GA .31 / .38 RING 10 Inch268226-01-MAXO$20.25
9Maxon 906578-02 - Relay 12VDC 5 Pin - NO TABMaxon 906578-02 - Relay 12VDC 5 Pin - NO TAB906578-02-MAXO$5.73
10Maxon 906608-01 - Charging SYS Switch 1 and 2 POSNMaxon 906608-01 - Charging SYS Switch 1 and 2 POSN906608-01-MAXO$117.41
12Maxon 268342-01 - Wire Assembly 16GA 7 Inch LGMaxon 268342-01 - Wire Assembly 16GA 7 Inch LG268342-01-MAXO$7.13
15Maxon 901000 - Nylon Nut 1/4-20 Inch ZincMaxon 901000 - Nylon Nut 1/4-20 Inch Zinc901000-MAXO$0.15
16Maxon 295069-12 - Latch Relay Assembly 12VMaxon 295069-12 - Latch Relay Assembly 12V295069-12-MAXO$345.72
17Maxon 907204-10 - Resettable 10 AMP C.B.Maxon 907204-10 - Resettable 10 AMP C.B.907204-10-MAXO$23.52
19Maxon 903129-01 - Nut Nylon Insert Thin 10-24 SSMaxon 903129-01 - Nut Nylon Insert Thin 10-24 SS903129-01-MAXO$0.21
20Maxon 902013-07 - Washer Flat #10 ZCMaxon 902013-07 - Washer Flat #10 ZC902013-07-MAXO$0.11
22Maxon 903443-07 - Washer SAE Flat .31 ZCMaxon 903443-07 - Washer SAE Flat .31 ZC903443-07-MAXO$0.08
23Maxon 903106-10 - Nut Nylon Insert Stop .313 -18 SSMaxon 903106-10 - Nut Nylon Insert Stop .313 -18 SS903106-10-MAXO$0.35
24Maxon 295745-01 - Relay Panel and Switch Mount PlateMaxon 295745-01 - Relay Panel and Switch Mount Plate295745-01-MAXO$183.81
25Maxon 268984-01 - Relay Bracket Mount SocketMaxon 268984-01 - Relay Bracket Mount Socket268984-01-MAXO$19.40
26Maxon 900007-5 - Screw PH Pan HD ZC 10-24 X .25 InchMaxon 900007-5 - Screw PH Pan HD ZC 10-24 X .25 Inch900007-5-MAXO$0.11

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
